If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabi-
net and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.

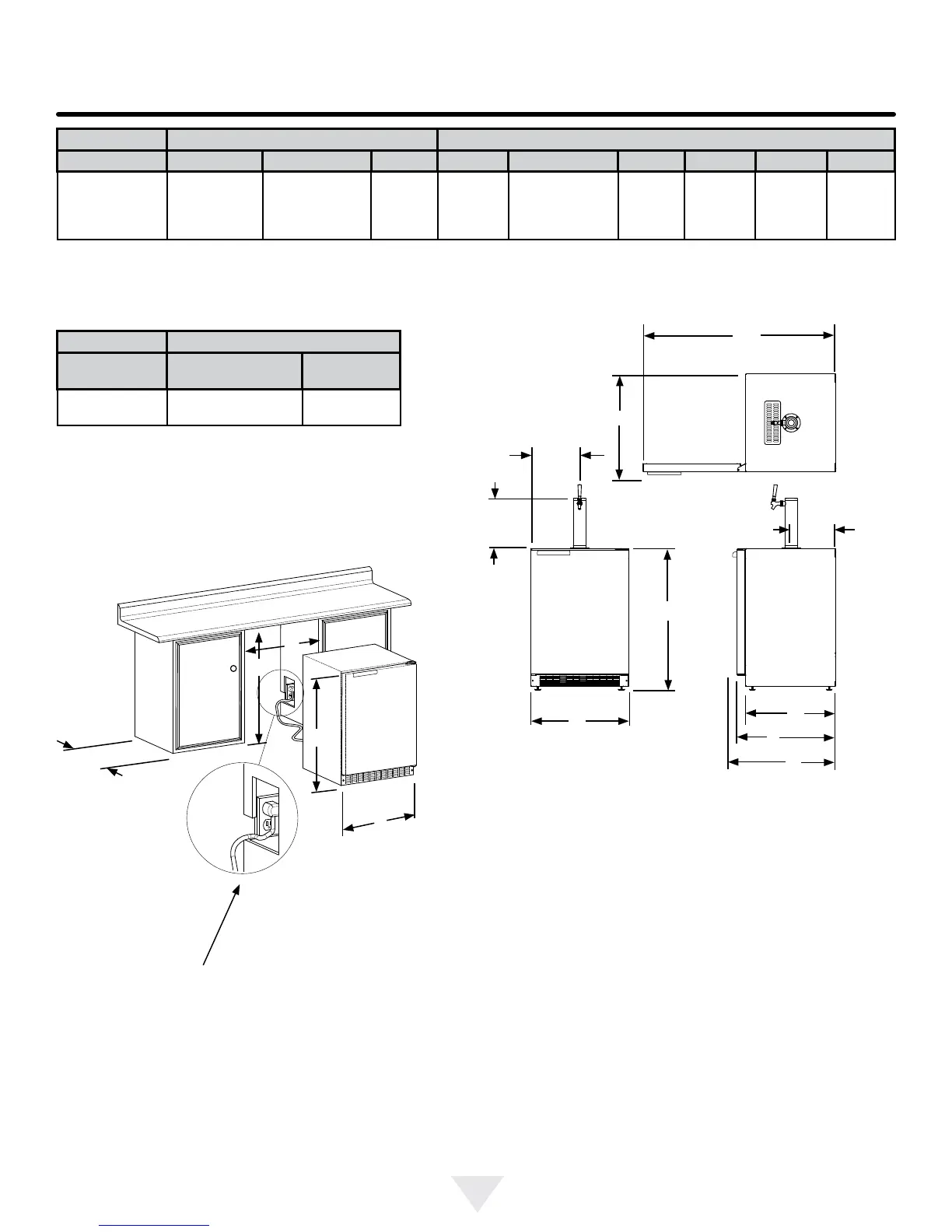

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
RF24T
24" (61 cm)
24 ½" (62 cm)
(with optional
DCS side trim kit)
**34" to 35"
(86.4 to 88.9 cm)
*
23
7
⁄8"
(60.7 cm)
33
3
⁄4" to 34
3
⁄4"
(85.7 to 88.3 cm)
23
23
⁄32"
(60.2 cm)
26
1
⁄4"
(66.7 cm)
46
13
⁄32"
(117.9 cm)
26
1
⁄4"
(66.7 cm)
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS***
PRODUCT
WEIGHT
RF24T 115V/60Hz/15A
140 lbs
(63.6 kg)
Figure 9
21
1
⁄2"
(54.6 cm)
12
1
⁄4"
(31.1 cm)
11
15
⁄16"
(30.3 cm)
11"
(27.9 cm)
Figure 8
* Depth dimension of rough-in opening may vary depend-
ing on each individual installation. To recess entire door "F"
dimension plus 1" (2.5 cm) for thickness of power cord plug
is required.
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
*** A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appli-
ance.
PRODUCT DIMENSIONS
Figure 8a
