DDM 9004 - Finalizing the HID Installation; Connect Ballast and Secure Wiring; Mount Ballasts and Verify Installation

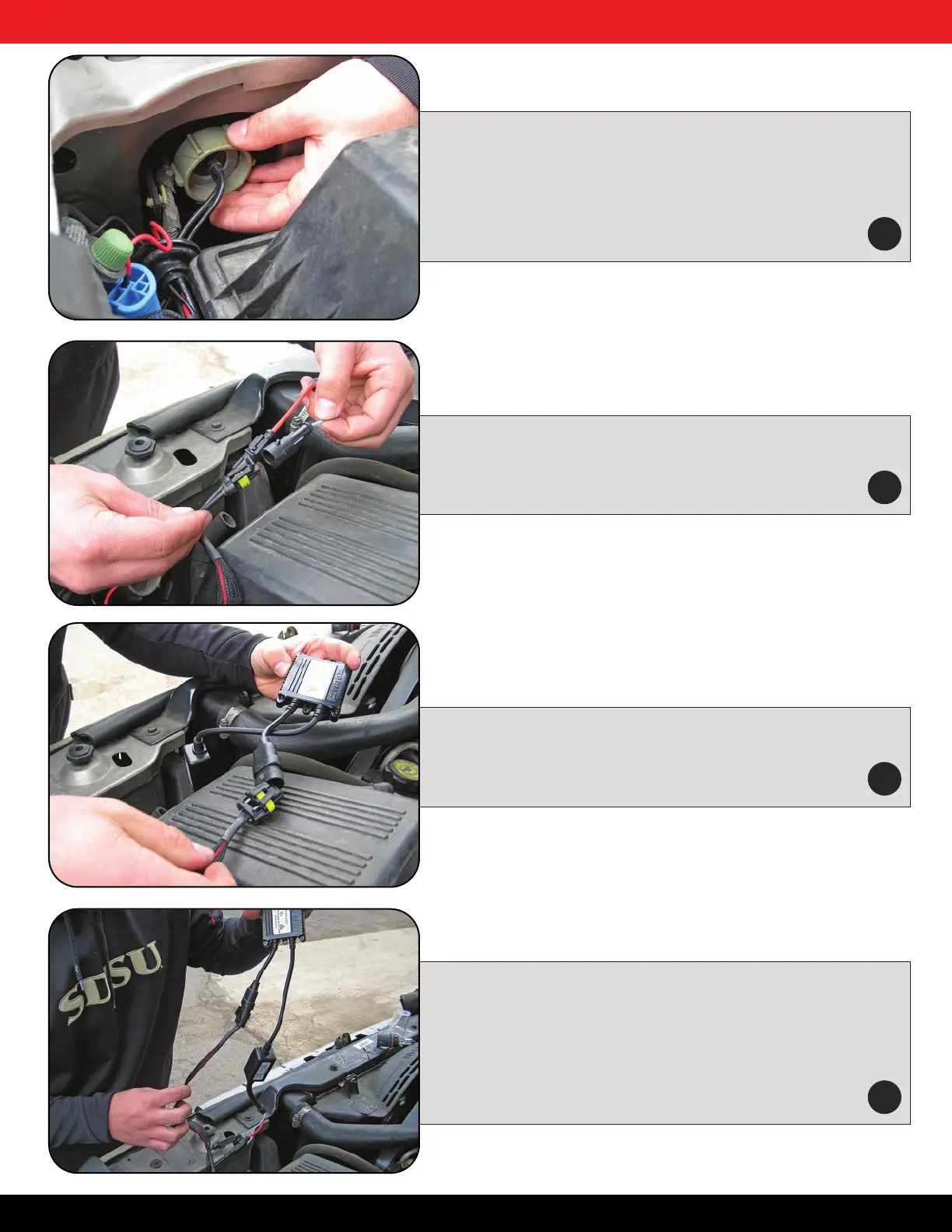

Next, Install the other side of your adapter
cables (the blue plug) into the ballast.
Pictured is your new HID setup installed
correctly. Using the double sided tape
provided mount the ballasts in a dry, flat,
clean location.
DDM INSTALL GUIDE - 9004/9007 HID Low Beam Kit (35W or 55W)
PH
8
8
5
5
8
8
5
5
6
6
5
5
1
1
7
7
4
4
2
2
I
I
D
D
D
D
M
M
TUNING.COM PAGE 3/3
Connect the corresponding AMP connectors
from the ballast to the bulb.
Reinstall your bulb locking ring with the new
HID bulb in place. To do so simply make sure
it is flush with the base of the bulb and turn
clockwise.
