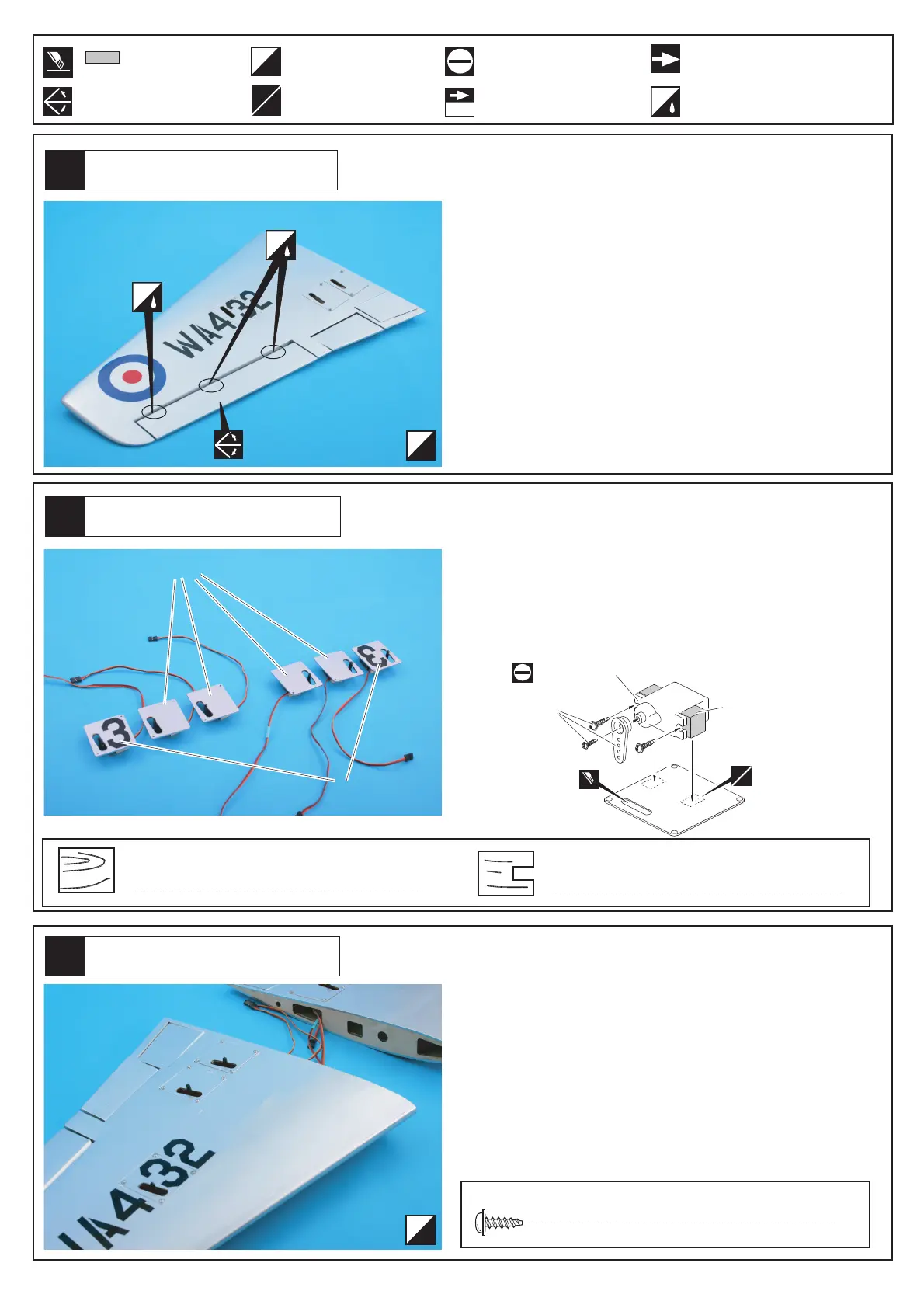

De Havilland VAMPIRE - Assembly Instructions; Main Wing and Aileron Assembly; Aileron and Flap Servo Installation

2
2
3
1
Assemble left and right sides
the same way.
Must be purchased separately!
Cut off shaded portion.
Apply epoxy glue.
Drill holes with the specified
diameter (here: 2mm).
Pay close attention here!
Apply instant glue (CA glue, super glue).
Ensure smooth non-binding
movement while assembling.
2mm
A
B
L
R
C.A
L
R
Attach aileron with C/A glue and make sure aileron can
move upward and downward.
Attention: Make sure aileron is attached properly.
Main Wing
L
R
C.A
C.A
6
Hard wood 12 x 12 x 6mm
24
2 x 8mm
TP Screw
6
Hard wood 12 x 12 x 6mm
Aileron and Flap Servo
Assembly for (Micro) Servo
Must be purchased
separately!
Hard wood block
mount for servo.
lncluded with
the radio set.
A
B
Flap
Aileron
Aileron and Flap Servo
Install aileron servo and flap servo on main wing as
shown in picture. Servo wire should go through from
the side of main wing. Then mount servos in place with
2x8mm TP Screws.
Attach the 12x12x6mm hard wood on servo tray with
A/B glue, then mount servo in place with the screws
supplied with servo.
Note the servo directions for left and right hand,
assemble left & right side the same way.
Note: Servo, servo plate & its parts are NOT included!
