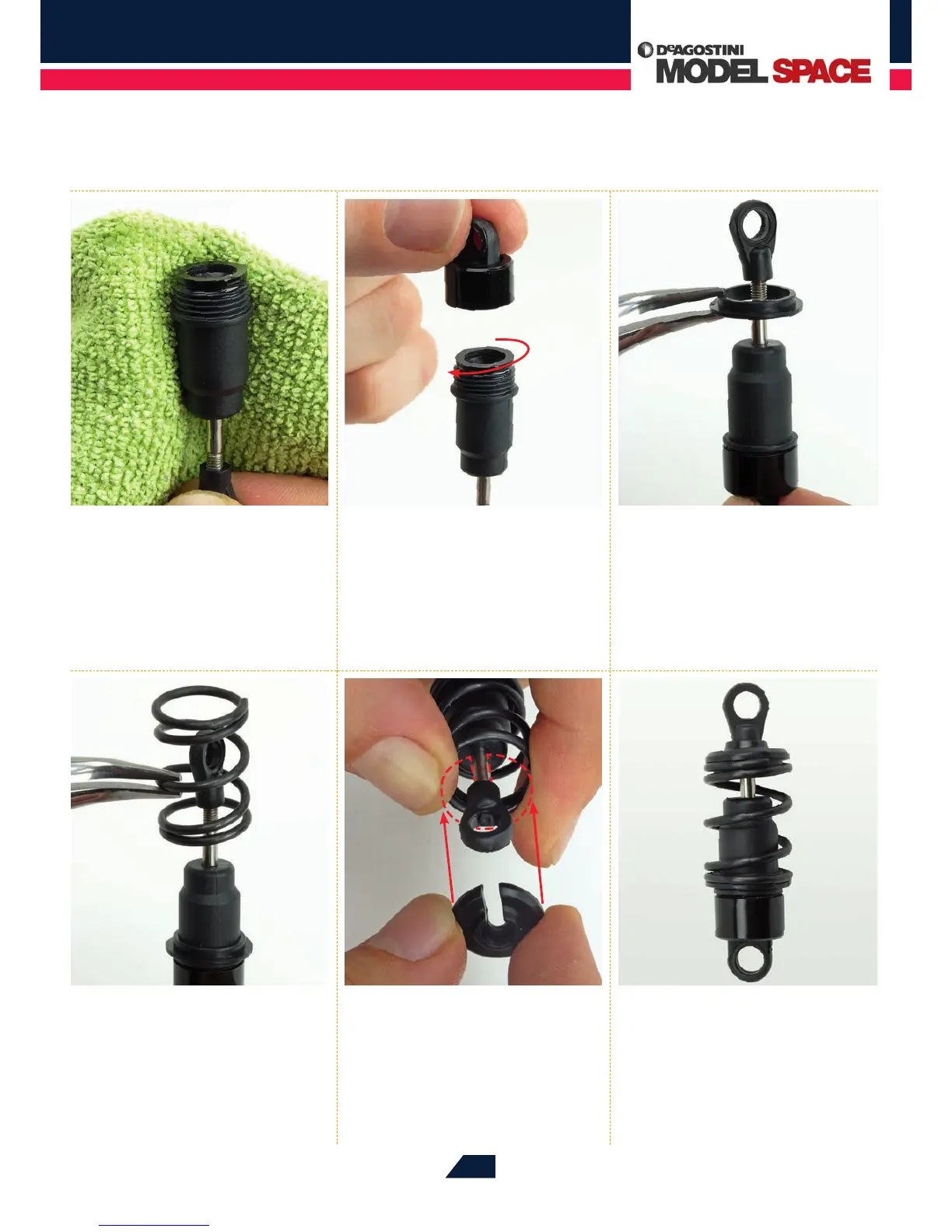

18
15
Place the spring over the end of
the case with the shaft.
16
Hold the case assembly in one
hand and pull back the spring, as
shown. Place the lower spring holder in
the gap on the shaft between the spring
and ball end. Gently release the spring
so that it comes to rest (see Step 17).
17
This completes the rst shock
absorber of your RB7.
12
The edge of the diaphragm must
be ush with the top of the case.
If some oil gets onto the case, you will
need to wipe it o carefully using a
cloth. Keep the assembly as upright as
possible, so that no oil can leak out.
13
Now take the shock top and cap
and place it on the thread at the
top of the shock case assembly. Screw
the top until tight.
14
Hold the case assembly as shown.
Place the upper spring holder so
that the wider ring is facing down, and
push it down the case as far as it will go.
