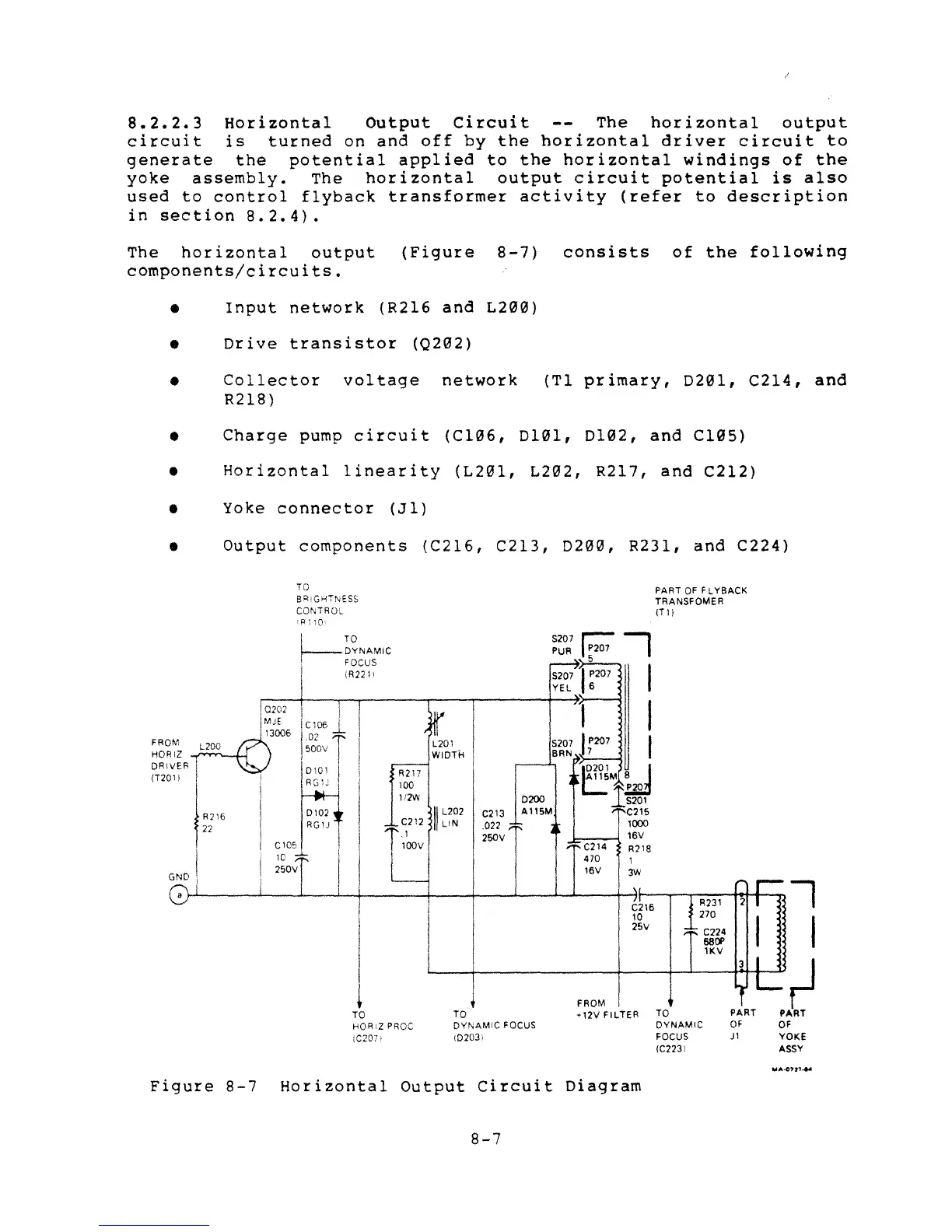

8.2.2.3 Horizontal Output Circuit The horizontal output
circuit is turned on and off by the horizontal driver circuit to
generate the potential applied to the horizontal windings of the
yoke assembly. The horizontal output circuit potential is also
used to control flyback transformer activity (refer to description
in section 8.2.4).
The horizontal output
components/circuits.
(Figure 8-7)
consists of the following
• Input network (R216 and L200)
• Drive transistor (Q202)
•
Collector voltage network
R218)
(Tl primary, D201, C214, and
• Charge pump circuit (C106, D101, D102, and C105)
• Horizontal linearity (L201, L202, R217, and C212)
• Yoke connector (J1)
• Output components (C2l6, C213, D200, R231, and C224)
-,
