The
vertical
sync
input
initiates
retrace
each
time
it
goes
low
(60
times
per
second).
However,
the
E301
is
capable
of
free-running
trace
and
retrace,
in
the
event
no
retrace
sync
signal
is
sensed
from
the
video
logic.
R302
and
C304
define
E30l
internal
free-running
oscillation
at
60
Hz
(~l
Hz).
At
the
start
of
a
vertical
trace,
E301
outputs
a
voltage
potential
on
pin
4.
This
potential
is
stabalized
and
output
to
the
vertical
output
circuit.
Feedback
from
that
circuit
is
input
to
E30l
at
pin
10.
This
feedback
is
applied
across
R306
and
compared
with
the
adjustable
(R307)
vertical
linearity
value
at
pin
1
of
E301.
The
feedback
at
pin
10,
and
the
value
at
pin
1
are
used
by
E30l
to
monitor
gain
and
to
compensate
for
any
drift
in
output
voltage
value.
The
output
potential
at
pin
4
of
E301
is
ramped
upward
throughout
the
trace
period.
At
vertical
retrace,
the
output
is
returned
to
zero,
removing
the
ramped
potential
from
the
vertical
output
circuit.
Current
regulation
on
the
output
of
E301
is
controlled
by
an
adjustable
regulator
(R303),
which
can
increase
or
decrease
the
height
of
the
area
of
the
screen
scanned
during
a
vertical
trace.
8.2.4.2
vertical
Output
Circuit
--
The
vertical
output
circuit
develops
the
potentials
used
to
drive
current
through
the
vertical
windings
of
the
yoke
assembly.
The
vertical
output
circuit
(Figure
8-16)
consists
of
the
following
circuits.
Voltage
divider
network
(R31l-R3l4
and
C309)
Yoke
current
drive
components
(C3ll,
C3l2,
R3l7,
and
Jl)
4.7K
'910
TO/FROM
{ ..
VERTICAL
PROCESSOR
----r--+----,----,
R312~
562K
1
~"O
C309
47
10V
C311
1000
R313
16V
47.5K
1%
R314 R315
1 1
TO
DYNAMIC
FOCUS
lC313)
PART
C312
OF
1000
Jl
16V
R317
100
1/1W 4
PART
OF
YOKE
ASSY

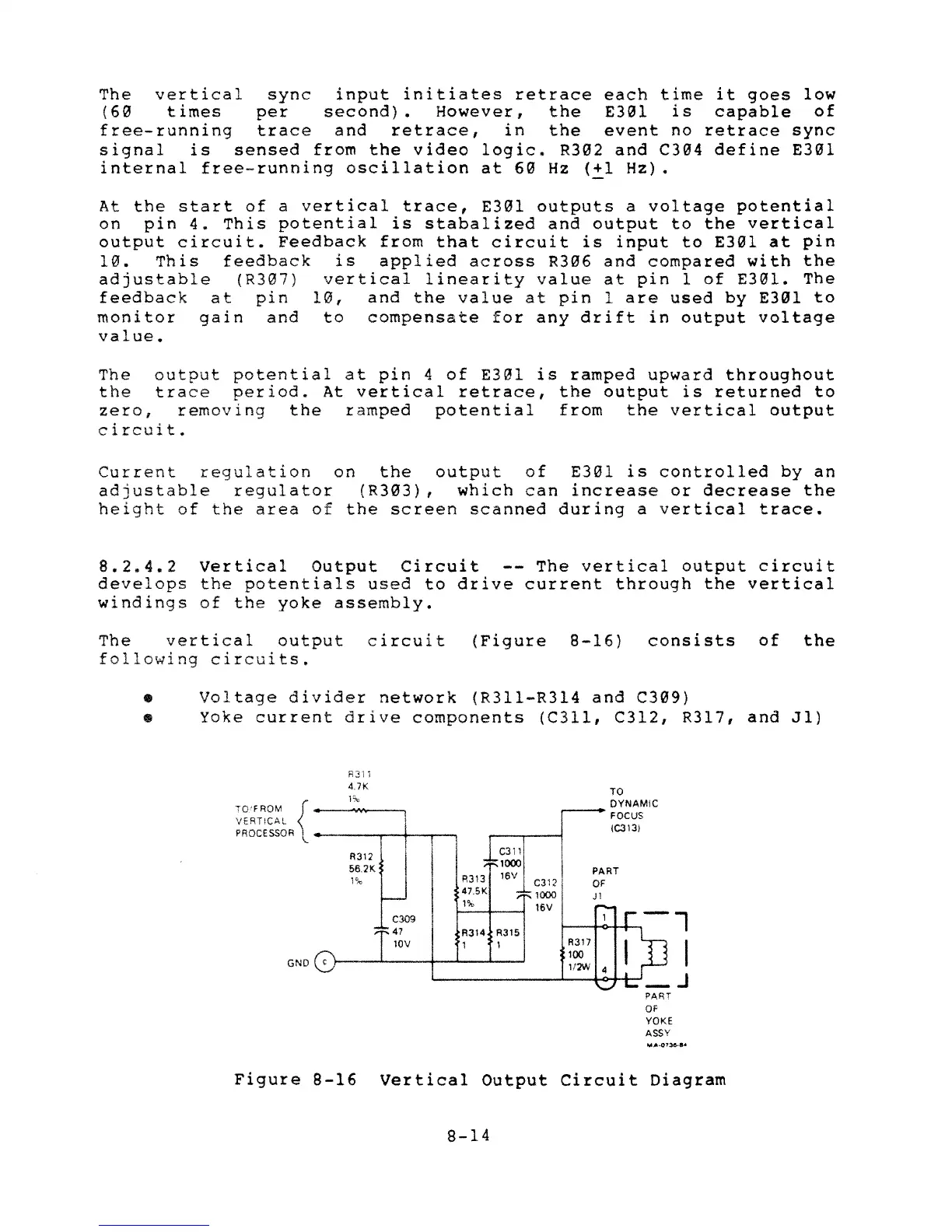

Figure
8-16
Vertical
Output
Circuit
Diagram
8-14
