6 EM50R RADIO TELEMETRY Em50 Series

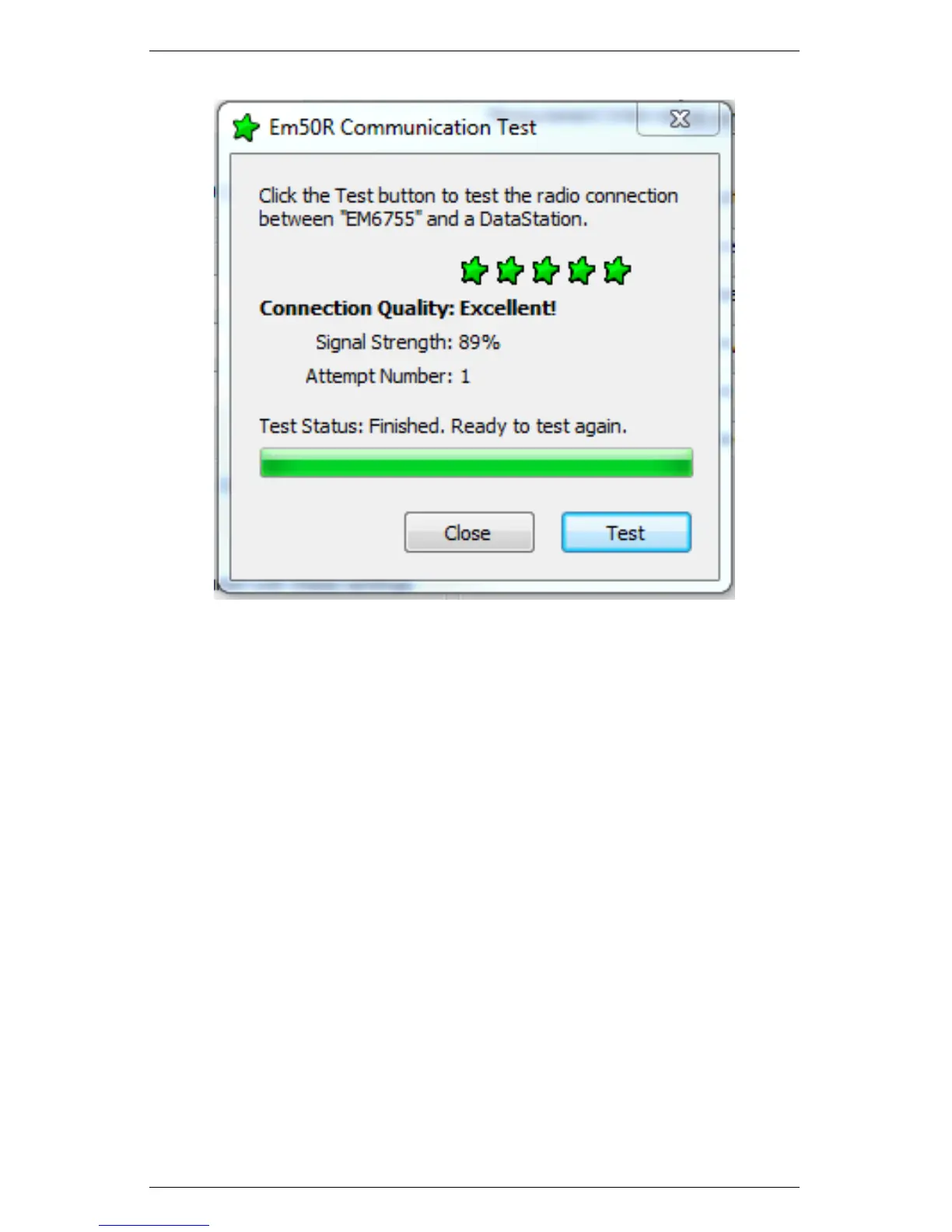

Figure 14: Em50R Communication Test Window
Click the Test button and the test begins. When the test has finished
it presents the results of the test. Five stars signifies excellent com-
munication. One star means that all of your data is transmitting,
but multiple tries are necessary. The more attempts to send data
leads to more power consumption. One star is adequate for data
transmission, but decreases battery life.
You may have to relocate the radio logger while doing the Telemetry
Test in order to find the best connection quality. Once you have
found the radio logger location that provides the best connection
quality, install the radio logger at that location.
Note: Communication Test only works with Em50 loggers running
firmware 1.12 or newer.
56
