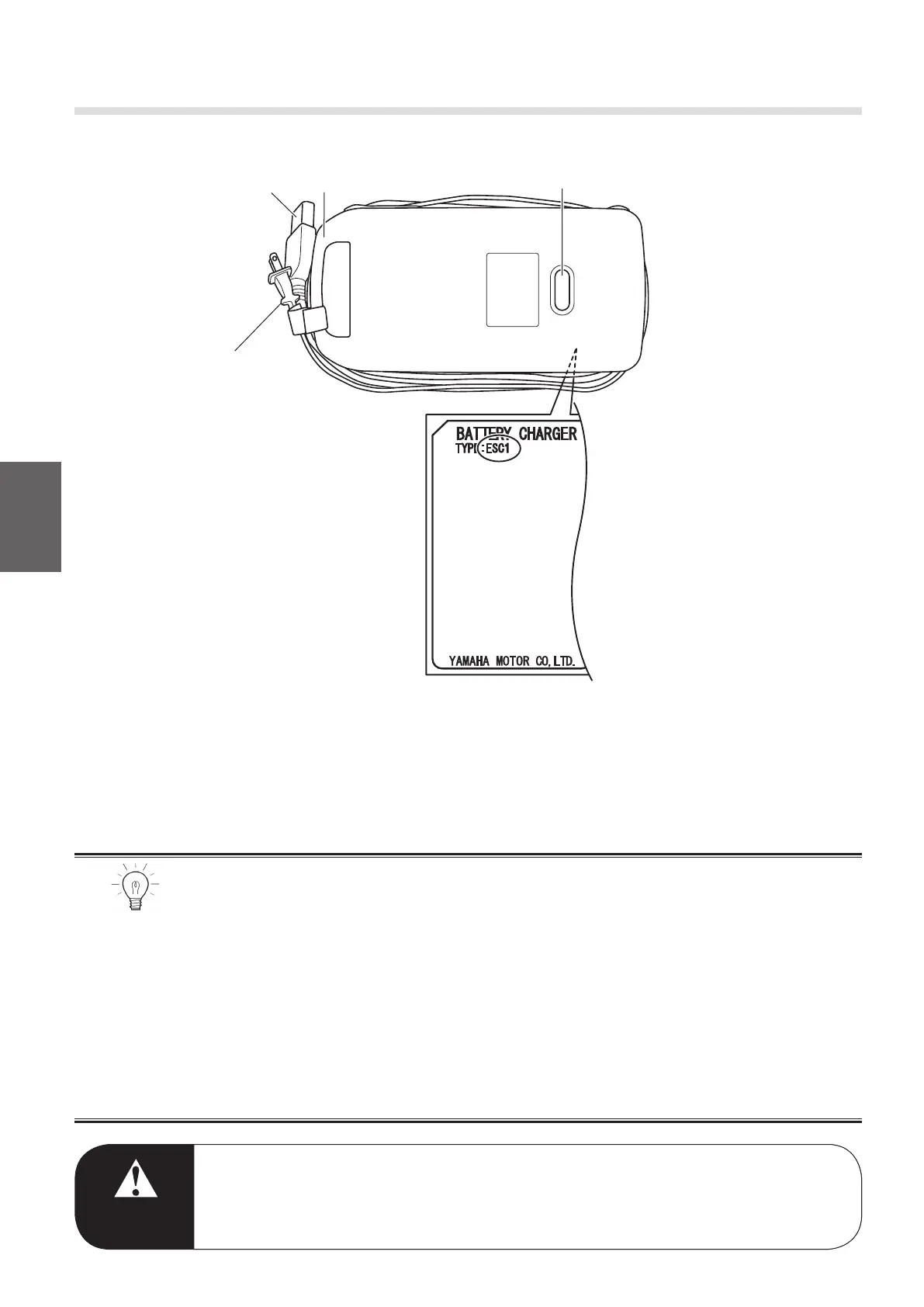

Charger plug
AC cable
(releasable)
Gripping handle Indicator lamp
The model (ESC1) is
shown on the label on
reverse side.
3.2. Charger for Lithium Ion (ESC1)
The names and functions of the Lithium Ion Battery Charger (ESC1) are explained below.
(1) Charging System
Pre-Charging
Starts charging at low amperage if the battery voltage is abnormally low.
Quick Charging
Charges an empty battery in approximately 4.5 hours.
• On the first charge cycle after shipping from the factory, or when charging
after a deep discharge, it will take 1.2 to 1.3 times longer than normal to charge
the battery.
• If a battery is post-charged because it was charged at a high temperature, the
post-charging for replenishment purposes could take as much as 1.5 hours
longer. Furthermore, the capacity indication during charging will take a longer
time to blink the topmost segment (fully charged).
• In addition, the charging time varies depending on the ambient temperature,
the residual capacity of the battery, and the driving conditions of the
wheelchair before charging.
NOTE
If you notice an abnormality during charging, immediately abort charging,
unplug the AC cable, and pull out the charger plug from the battery.
WARNING
