Step 7: Place the MID-FRONT [I] in place
above the LEFT SMALL [G] and RIGHT
SMALL [H] by the dowel as shown and lock
in place with 4 LONG KD SCREWS [M]. See
Fig. 7
Step 8: Mount the FRONT DECORATIVE [L] to
the unit with 3 LONG KD SCREWS [M]. See
Fig. 8
Step 9: Install the TOP [A] to the unit as
shown in Fig. 9 with 4 LONG KD
SCREWS [M]
Step 10: Tighten all SCREWS.
FIREPLACE INSERT
INSTALLATION:
The fireplace insert can be installed after the
mantle has been fully assembled.
WARNING: Make sure the fireplace insert
controls are in the OFF position and the unit
is NOT plugged in.
Step 1: Place the INSERT in back of the
mantel on the floor. Carefully lift the INSERT
into the mantel until the top stopper is
against to MANTEL. See Fig. 10
A S S E M B LY I N S T R U C T I O N S

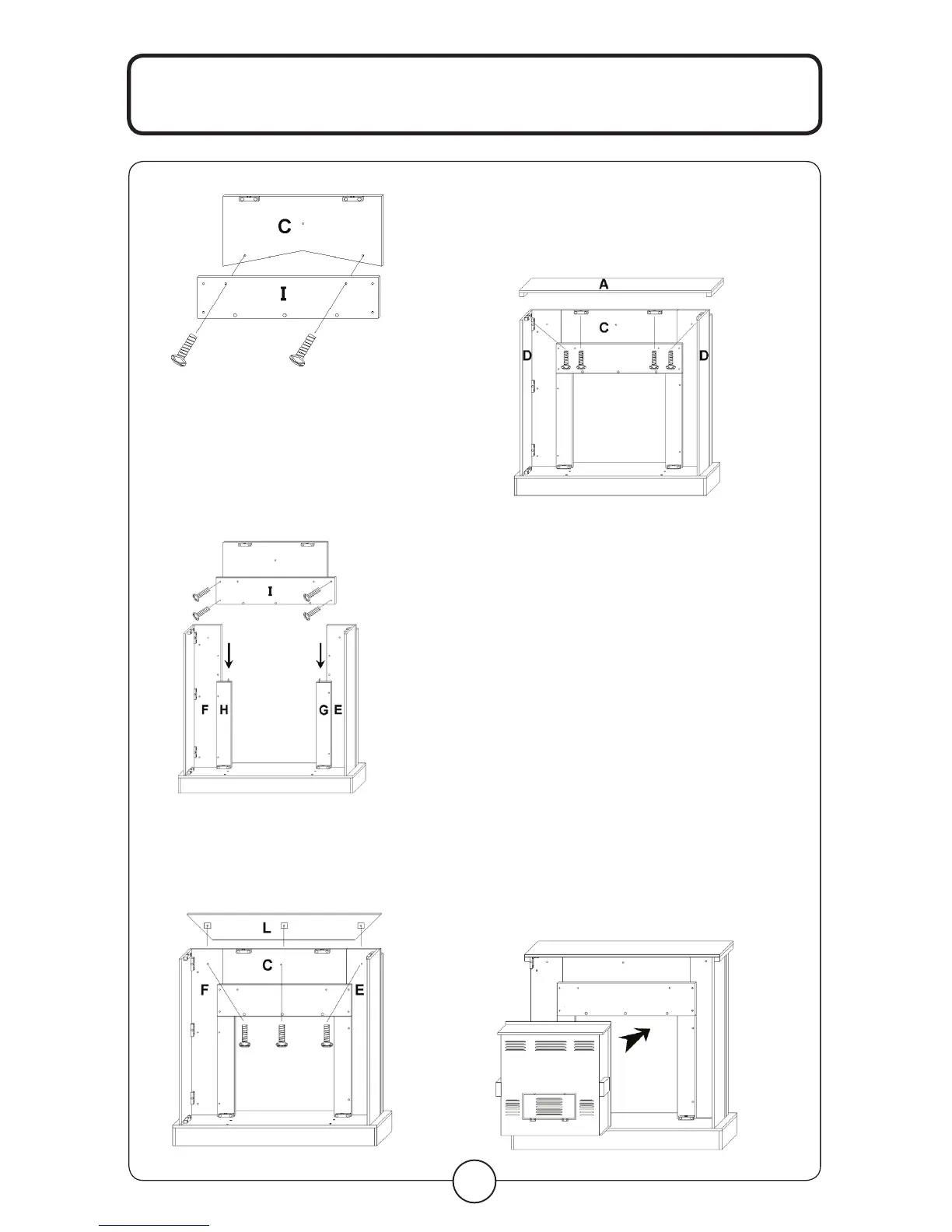

Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
To Next Page
