DECTRON
Owners Manual DA2 Series Dehumidifier
Pre-Startup Adjustments Startup
Dectron, Inc. November 2009 21
Data subject to change without notice.

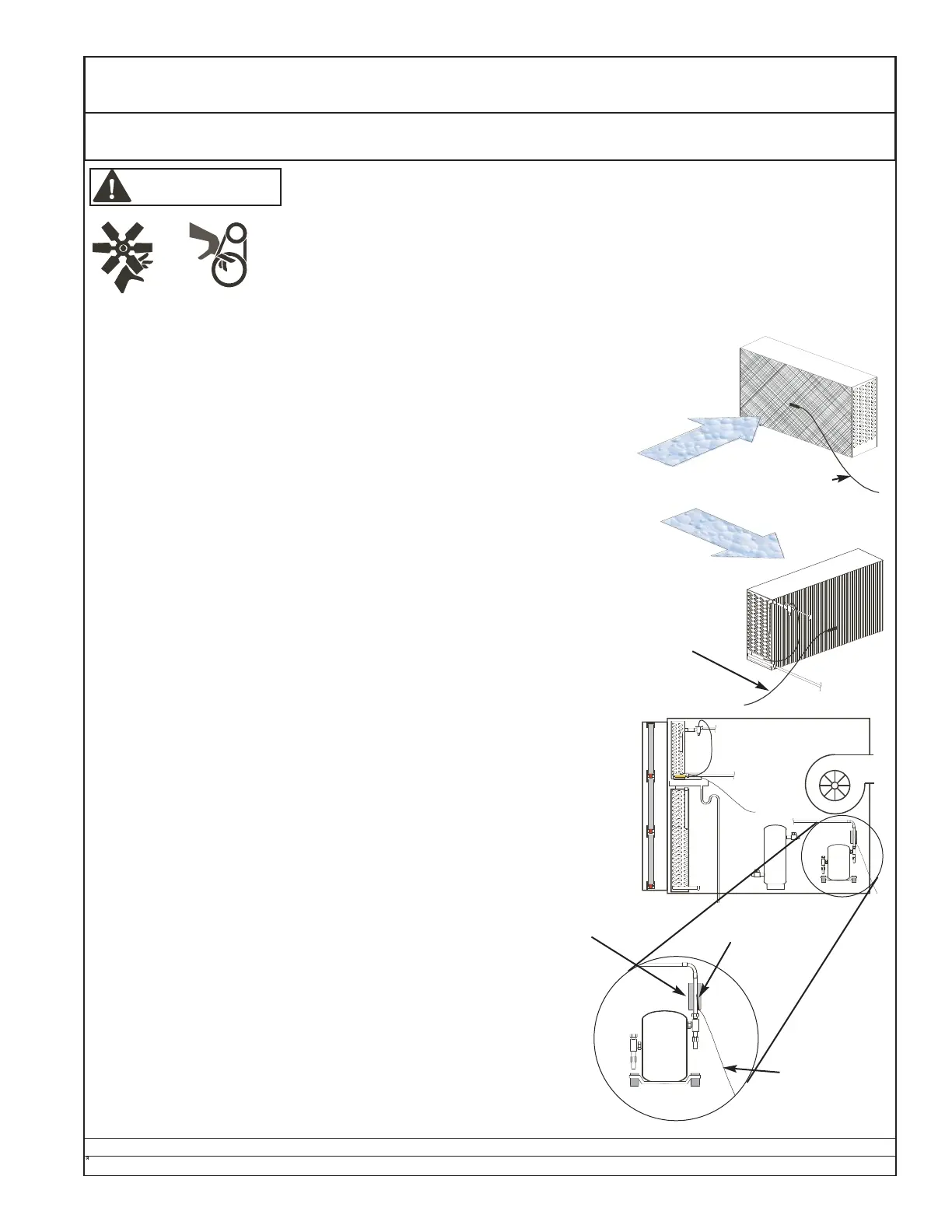

1. Attach a probe of a remote-reading electronic thermometer (by
others) to the air filters, near the center of the filter assembly.
2. Attach a probe of a remote-reading electronic thermometer (by
others) on the down-stream side of the cooling coil near the
horizontal center of the coil, and about 1/3 of the way up. Separate
the sensor from the coil fins by approximately 1 inch (2.5cm).
3. Attach a probe of a remote-reading electronic thermometer
(by others) to the compressor-discharge tube approximately
6 inches from the compressor shell. The thermometer
should have a range including 100 to 250°F (38 - 120°C).
4. Wrap 1/2 inch (1cm) thick insulation around the tube-probe
assembly. The insulation should go all the way around the
tube, and extend at least 3 inches (8 cm) along the tube on
both sides of the probe end.
5. Wrap the insulation with foil or foil-backed tape. Close the
foil tightly (especially the ends) against the turbulent airflow
that will form inside the cabinet.
GO TO NEXT PAGE.
Return Air
Return Air
Probe
Cable must be
able to reach
outside the unit
cabinet.
Foil Wrapped
Around
Insulation
Cable must be
able to reach
outside the unit
cabinet.
Cable must be able
to reach outside the
unit cabinet.
Sample
Compressors and
layout may vary.
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death from
contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
WARNING
To Next Page
