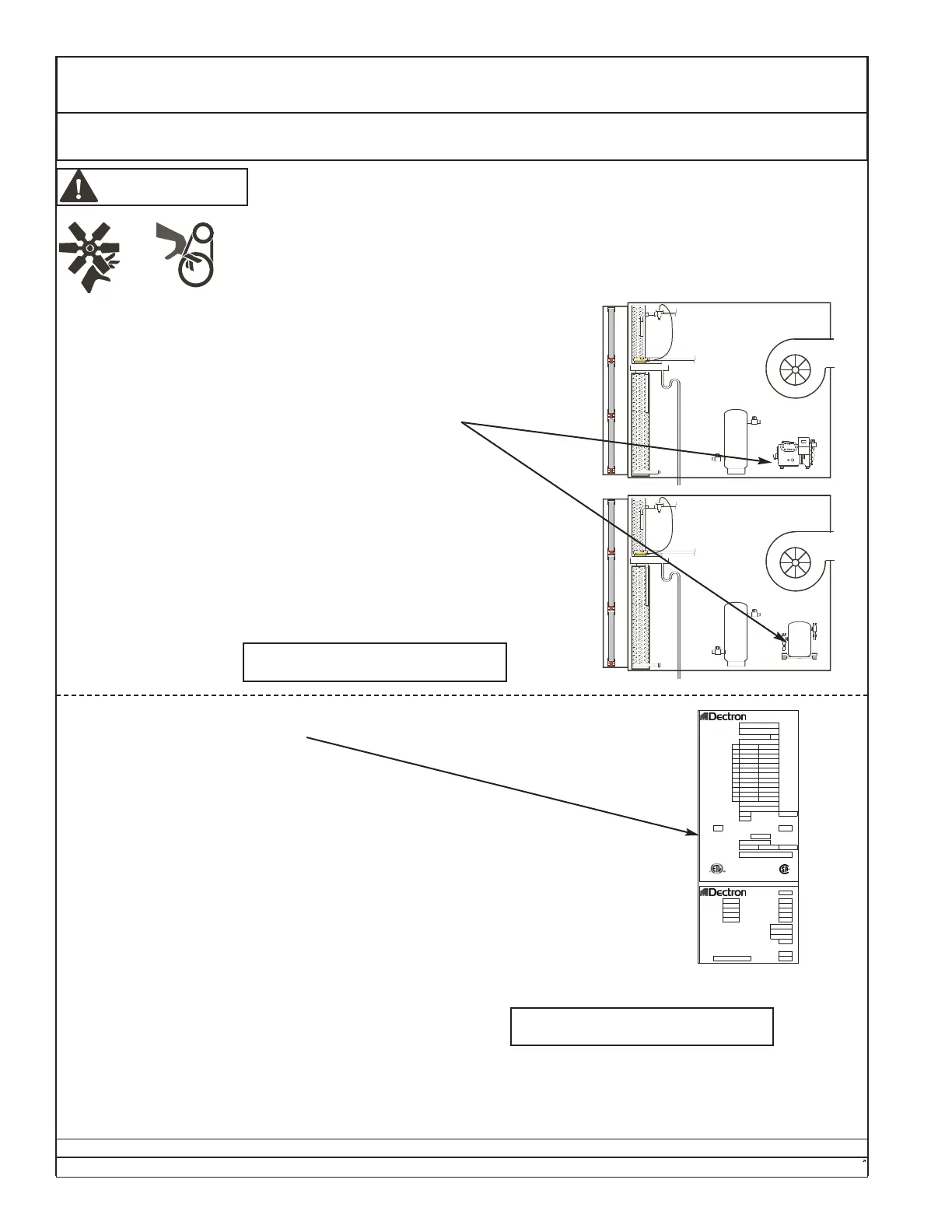

DA2 Series Dehumidifier Owners Manual
Startup Determine Compressor & Refrigerant Types
22 Dectron, Inc. November 2009
Data subject to change without notice.
Note the type of compressor from the compressor label,
and record it below.
ex: Copeland, Trane, Bitzer, etc.
Samples
Actual layout
may vary.
My compressor is a
.
My refrigerant is
.
Risk of contact with moving parts. Can cause injury or death.
This product contains rotating parts and V-belt drives. Some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death from
contact with these parts.
Using only approved devices (e.g. locking safety switch), disconnect, lockout, and
tagout all sources of electrical energy before working inside the unit cabinet. Allow
adequate time for rotating parts to stop. Follow all applicable safety regulations.
WARNING
MODEL #:
SERIAL #:
I.D.
D
ELECTRICAL RATING
460 V ac, 3 ph, 60 Hz
LRA RLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
BLOWER MOTOR HP FLA
COND. FAN MOTOR HP FLA
COND. FAN MOTOR HP FLA
PUMP MOTOR HP FLA
ENTHALPY MOTOR HP FLA
ELECTRIC HEATER kW A
Max. L.A.T. (°F)
SERVICE POWER
SPACE HEATING COIL
PSIG Max.
MCA A MAX. FUSE/CKT. BKR.*
15
A
R-22 FACTORY CHARGE
lbs
AIR VOLUME CFM
BELT SIZE
WIRING DIAGRAM
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
COMFORMS TO ANSI/UL S TD 1995
CERTIFIED TO STD CAN/CSA-
FABRIQUÉ AU CANADA / MADE IN CANADA
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AIR TEMP.: °F R.H.: %
R-22 TOTAL SYSTEM CHARGE:
lbs
OIL TO BE ADDED AT START-UP:
oz
OIL TYPE:
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSER:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
Refer to the unit nameplate.
Determine the type of refrigerant.
ex: R-22, R407c, R410a, etc.
Record the type of refrigerant in the box below.
Sample
Type of refrigerant
may vary.
Taking care not to damage the temperature-sensor wires, close all access doors an panels.
