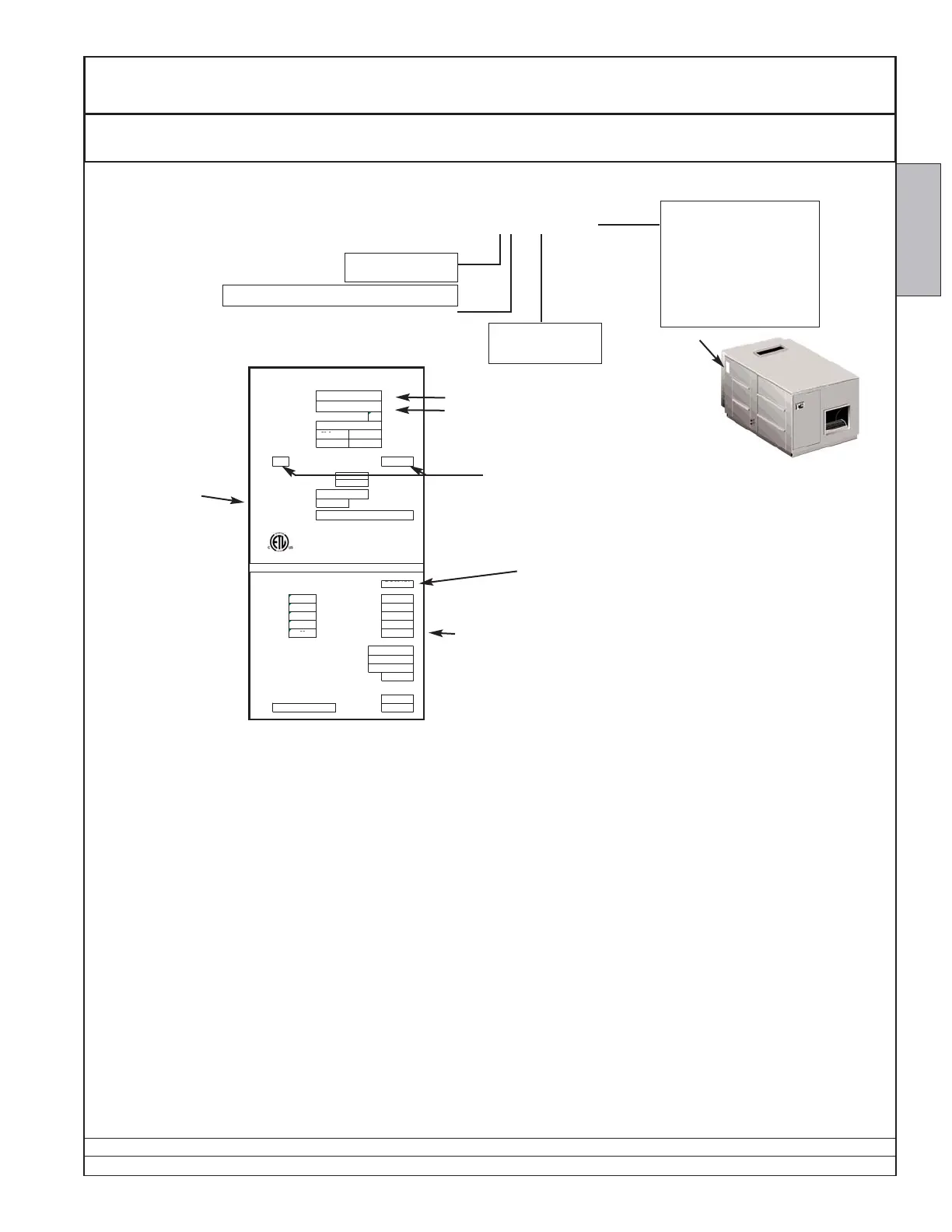

DESCRIPTION
Owners Manual DA2 Series Dehumidifier
Dectron, Inc. November 2009 5
Data subject to change without notice.
Product Description
DRY-O-TRON ®
MODEL #: DA2-024-8
SERIAL #:
I.D.
T
ELECTRICAL RATING
575 V ac, 3 ph, 60 Hz
COMPRESSOR
50.0
LRA
7.9
RLA
BLOWER MOTOR
2
HP
2.4
FL A
MC A
13
A MAX. FUSE/CKT. BKR.
20
A
REFRIGERANT TYPE
R-22
FACTORY CHARGE
15.5 lbs
AI R VO L U ME
3600 - 4000
CFM
BELT SIZE
WIRING DIAGRAM
DA2-W-024-021 AE Rev.5
REFRIGERANT DESIGN PRESSURES: HIGH/LOW 300/150 PSIG
COMFORMS TO UL STD 1995
CERTIFIED TO STD CA N/CS A-
C22.2 NO. 236
FABRIQA U CANADA / MADE IN CANADA
REF.:
DC23154
POOL # 1: ft² POOL # 3: ft²
E.W.T.: °F E.W.T.: °F
POOL # 2: ft² POOL # 4: ft²
E.W.T.: °F E.W.T.: °F
AI R T E MP .:
60
°F R.H.:
60
%
R-22
TOTAL SYSTEM CHARGE:
15.5
lbs
OIL TO BE ADD ED AT START-UP
oz
OIL TYPE
MAX. LENGTH OF REF. LINES (ONE WAY) ft
BETWEEN D.O.T. & REMOTE CONDENSER:
LINE SIZE:
AIR COOLED COND. MODEL #:
HOT GAS: in
LIQUID: in
2001406
CSA and ETL Label
Operating conditions: Make sure unit is operating within these
conditions. Unit has been selected and sized accordingly.
Name plate
on corner
Nameplate specifications supersede any other specifications
or statements found in this manual.
If assistance is needed, have
model, serial number, and Ref.
number (below) before calling.
Important branch circuit information
Replace with
belt of same
type and size
when necessary.
Ref number
Indoor unit
Model Nomenclature:
ixx-sss-vvp
D = indoor cabinet
nominal moisture
removal capacity in
lbs./hr.
A2 = low to medium temperature dehumidifier
nominal voltage
2 = 208V, 1Φ, 60 Hz
3 = 230V, 1Φ, 60 Hz
4 = 208-230V, 1Φ, 60 Hz
5 = 208-230V, 3Φ, 60 Hz
6 = 230V, 3Φ, 60 Hz
7 = 460V, 3Φ, 60 Hz
8 = 575V, 3Φ, 60 Hz
9 = 208V, 3Φ, 60 Hz
