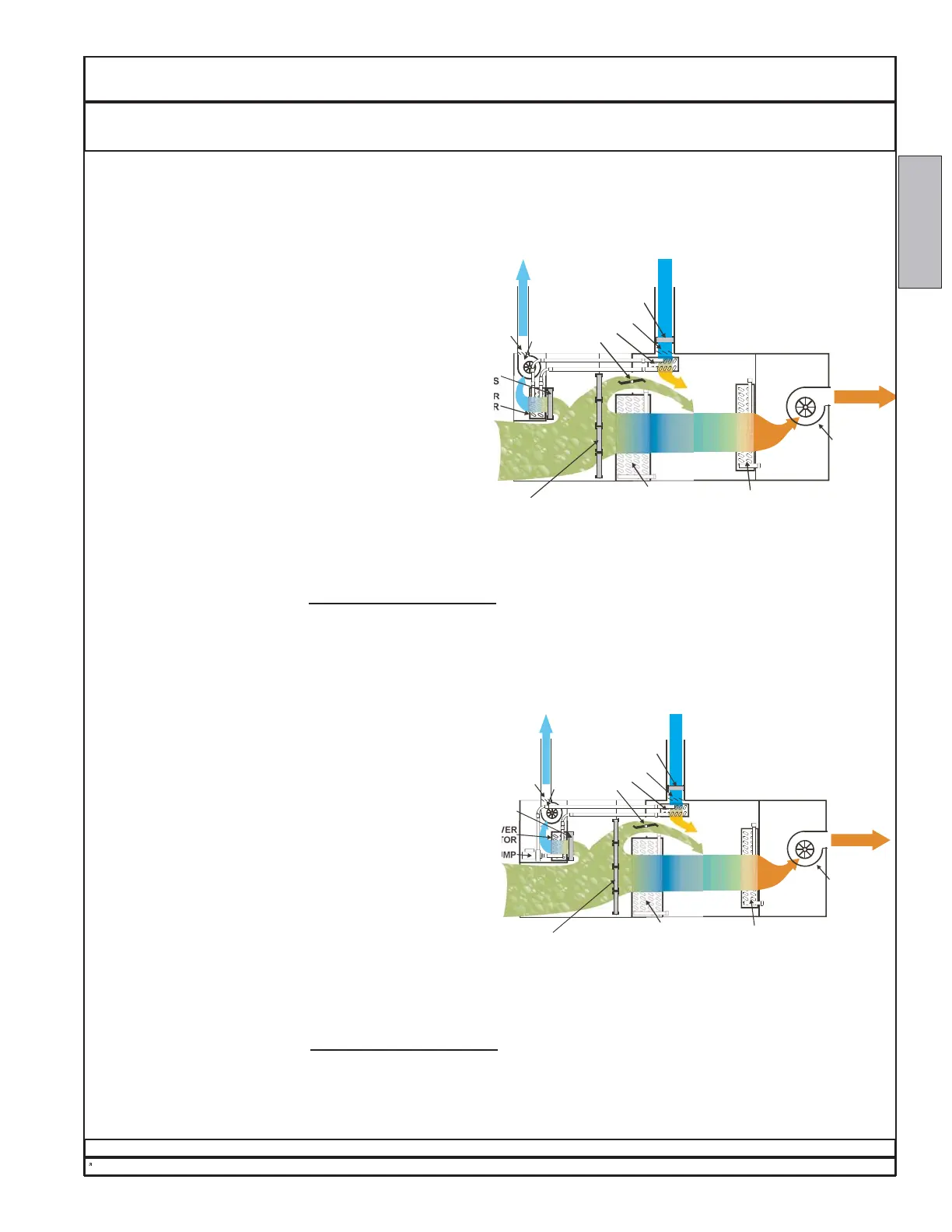

DECTRON
DRY-O-TRON
®
with SmartSaver
®
The SmartSaver
®
exchanges heat from the
exhaust air to the incoming outdoor air to save
heating energy. A heat pipe or a thermo-siphon
system is installed between the exhaust air and
the outdoor air intake. When the outdoor air is
colder than the room exhaust air, the
SmartSaver
®
recovers heat from the exhaust
stream and delivers it to the outdoor air intake.
The same amount of air passes through the
bypass and the evaporator.
The normal occupied-period outdoor-air intake
flow rate can be up to 15% of the total supply
airflow rate, or up to 35% if the unit has the
air-conditioning option. Units with the
SmartSaver option do not require incoming
outdoor air to be heated, as long as the incoming
outdoor air is above -20°F (-29°C).
Any unit with more than 15% outdoor air
must have auxiliary pool heat, which may be by others.
The exhaust airflow rate should be 110% of the outdoor air intake flow rate.
For more information, refer to Appendix M3 - SmartSaver
.
SUPPLY AIR
EXHAUST AIR
OUTDOOR AIR
OUTDOOR AIR
COOLING COIL
REHEAT COIL
SUPPLY
BLOWER
RETURN-AIR
FILTERS
EXHAUST-AIR
FILTERS
SMARTSAVER
EVAPORATOR
MINIMUM EXHAUST BLOWER
MINIMUM EXHAUST DAMPER
BYPASS DAMPER
SMARTSAVER FILTERS
MINIMUM O/A DAMPER
SMARTSAVER CONDENSER
RETURN
AIR
DRY-O-TRON
®
Glycol SmartSaver
®
The SmartSaver
®
exchanges heat between the
exhaust air and the incoming outdoor air to save
energy. A pumped-glycol heat-exchange system is
installed between the exhaust air and the outdoor
air intake. When the outdoor air is colder than the
room exhaust air, the SmartSaver
®
recovers heat
from the exhaust stream and delivers it to the
outdoor air intake stream. When the outdoor air
is warmer than the room exhaust air, the
SmartSaver
®
removes heat from the outdoor air
intake stream and delivers it to the exhaust
air stream.
The same amount of air passes through the
bypass and the evaporator.
The normal occupied-period outdoor-air intake flow
rate can be up to 15% of the total supply airflow rate,
or up to 35% if the unit has the air-conditioning option. Units with the SmartSaver option do not
require incoming outdoor air to be heated, as long as the incoming outdoor air is above -20°F (-29°C).
Any unit with more than 15% outdoor air must have auxiliary pool heat, which may be by others.
For more information, refer to Appendix M3 - SmartSaver
.
Dectron, Inc. March 2012
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Major Airflow Options Product Description
Data subject to change without notice.
11
SUPPLY AIR
EXHAUST AIR
OUTDOOR AIR
OUTDOOR AIR
COOLING COIL
REHEAT COIL
SUPPLY
BLOWER
RETURN-AIR
FILTERS
EXHAUST-AIR
FILTERS
SMARTSAVER
EVAPORATOR
GLYCOL PUMP
MINIMUM EXHAUST BLOWER
MINIMUM EXHAUST DAMPER
BYPASS DAMPER
SMARTSAVER FILTERS
MINIMUM O/A DAMPER
SMARTSAVER CONDENSER
RETURN
AIR
DESCRIPTION
1.6
