Deda Elementi SUPERBOX - UPPER BEARING SEAT FOR DCR SYSTEM; MOUNTING

9
4.2.2 UPPER BEARING SEAT FOR DCR SYSTEM
The upper bearing seat must respect the following specifications:
4.2.3 MOUNTING
In the case of mounting on the DCR frame, the cables will enter the nylon S-DCR
cover (7) positioned under the stem, passing through the shims, the 56 mm cover
(12) and black compression ring for DCR 45 ° x45 bearing ° or the grey ring if
using a 36 ° x45 ° bearing (13).
Here below a picture showing the full internal cables routing.

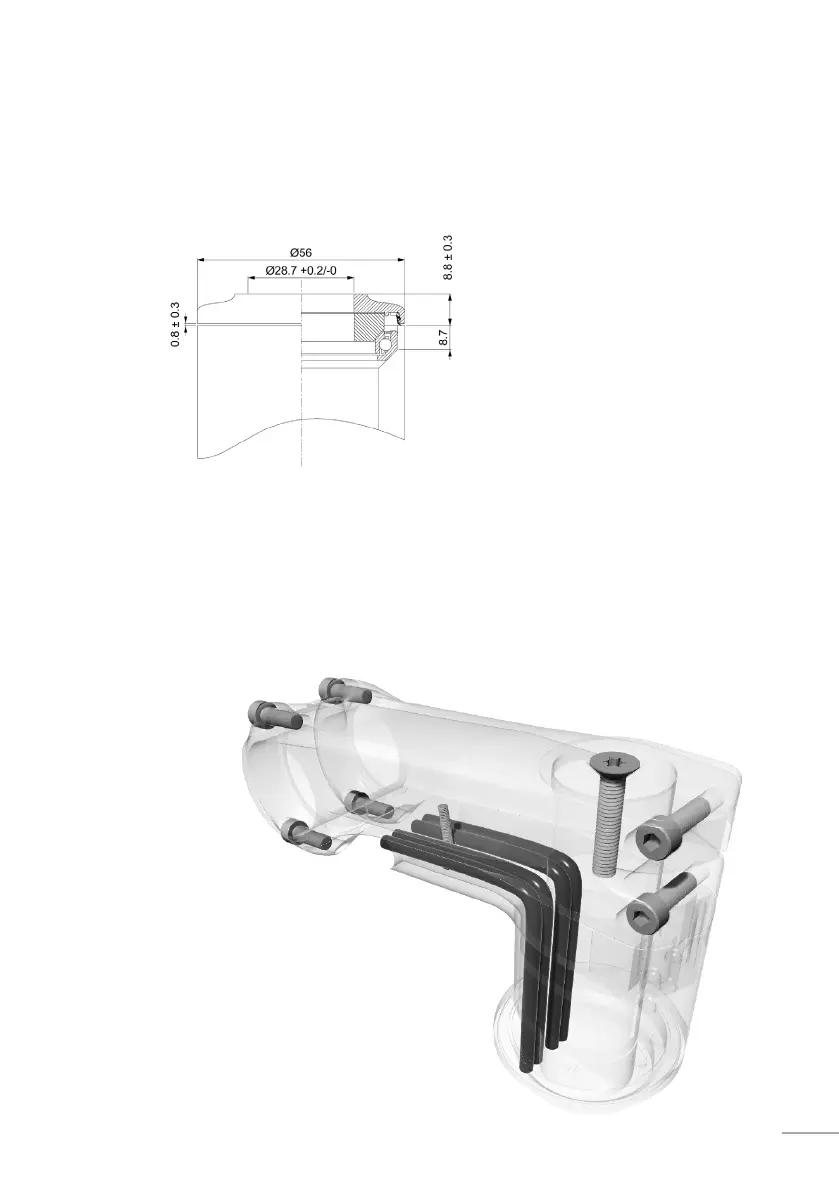

Fig. 4.2: upper bearing seat size
Fig. 4.3: internal cable routing view with S-DCR cover
