4.3 BICYCLE FRAME WITH D-SHAPE FORK
This type of frames features a 1”-1/8 upper bearing and a fork steerer with a non-
circular section (commonly called D-shape). In this confi guration, you must use
the 46mm topcover (11).
In the case of mounting on a frame with a D-shape fork, there are two mounting
options:
4.3.1 Assembly with S-DCR cover (7) and a traditional handlebar, in this
confi guration the cables will enter under the stem in plastic cover (7)
passing through the spacers and 46 mm topcover (11).
4.3.2 Assembly without S-DCR cover (7) with a DCR handlebar, in this
confi guration the cables will enter directly into the stem passing through
the spacers and 46mm topcover (11)

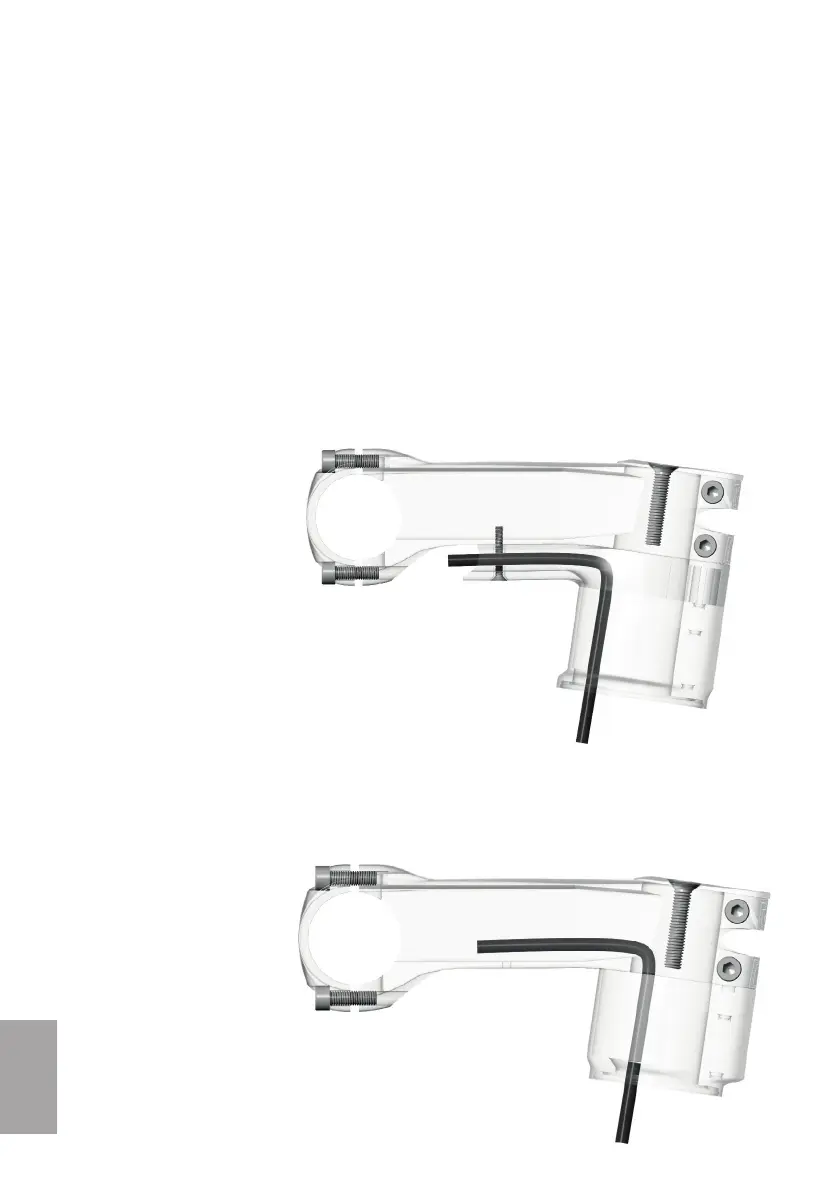

Fig. 4.3.1: cable routing view with S-DCR cover system
Fig. 4.3.2: cable routing view with DCR system
