About NanoVNA-F without built-in battery:
Our official store supports shipping NanoVNA-F with a built-in battery version to most parts of the world.
If you bought a machine without a built-in battery in another store, you may need to install a battery for it.
Each NanoVNA-F machine we produce without a built-in battery is equipped with an acrylic board for fixing

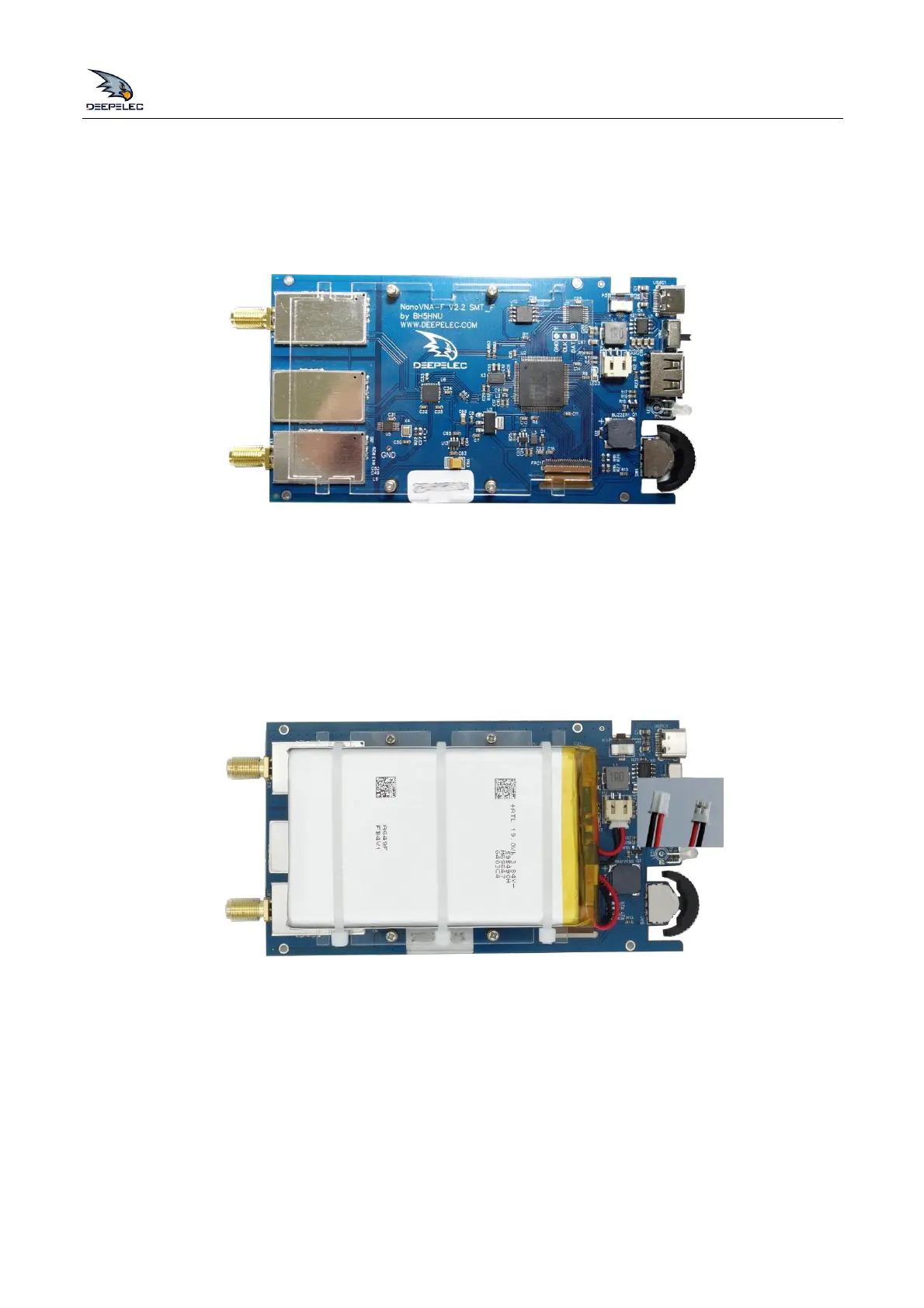

the battery by default. As shown below, You can use a cable tie or double-sided tape to secure the battery.
You can use a common polymer lithium-ion battery as the battery for your machine, which size limit <
L(90mm)*W(54mm)*H(5.6mm).
You can solder the battery directly to the PCB. But the recommended method is to add a terminal, the type
of the power interface is PH2.0, the connector on the battery side needs to match it, and the cable length is
about 4CM.
