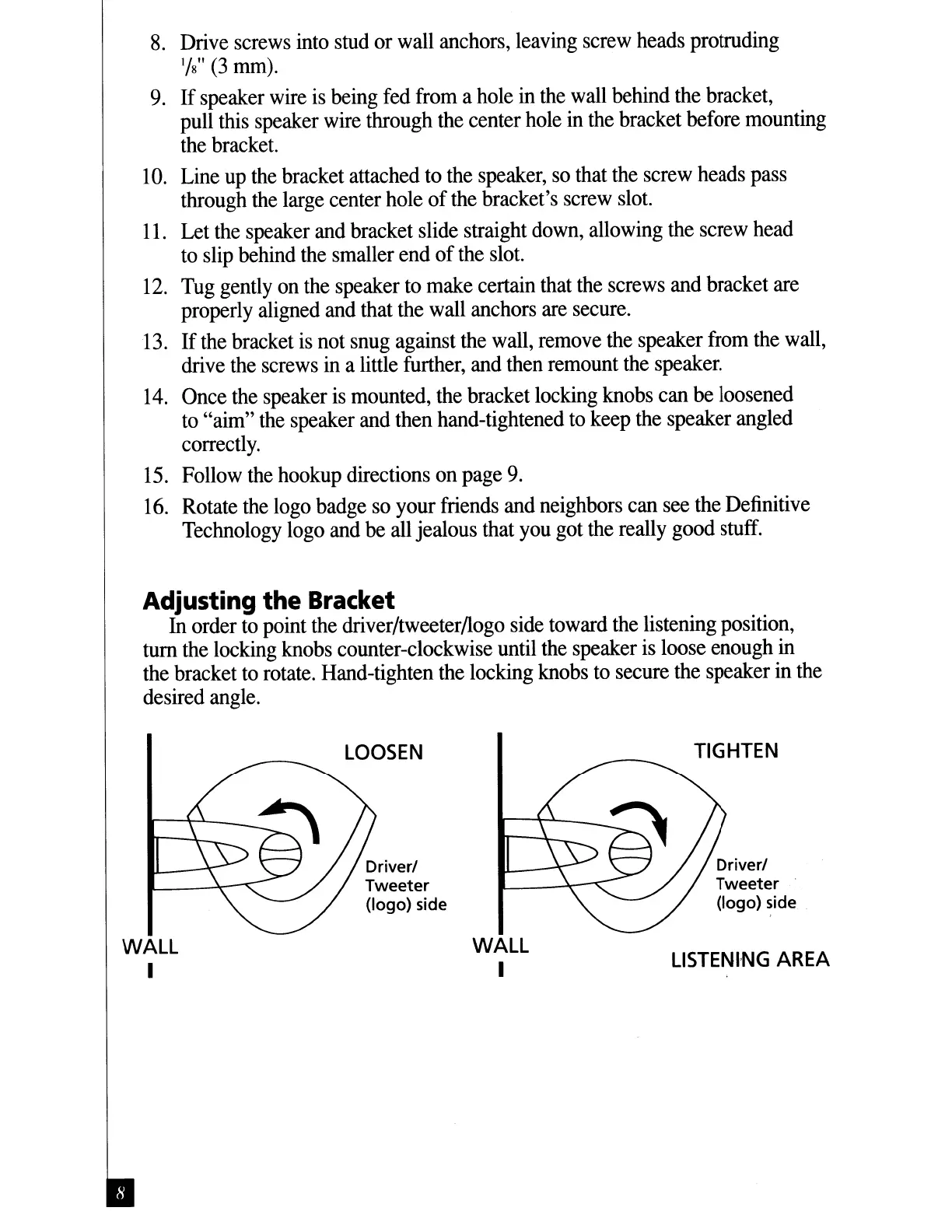

Definitive Technology AW5500 User Manual

8. Drive screws into stud or wall anchors, leaving screw heads protruding
'/8" (3 mm).
9. If speaker wire is being fed from a hole in the wall behind the bracket,
pull this speaker wire through the center hole in the bracket before mounting
the bracket.
10. Line up the bracket attached to the speaker, so that the screw heads pass
through the large center hole of the bracket's screw slot.
11. Let the speaker and bracket slide straight down, allowing the screw head
to slip behind the smaller end of the slot.
12. Tug gently on the speaker to make certain that the screws and bracket are
properly aligned and that the wall anchors are secure.
13. If the bracket is not snug against the wall, remove the speaker from the wall,
drive the screws in a little further, and then remount the speaker.
14. Once the speaker is mounted, the bracket locking knobs can be loosened
to "aim" the speaker and then hand-tightened to keep the speaker angled
correctly.
15. Follow the hookup directions on page 9.
16. Rotate the logo badge so your friends and neighbors can see the Definitive
Technology logo and be all jealous that you got the really good stuff.
Adjusting the Bracket
In order to point the driver/tweeter/logo side toward the listening position,
tum
the locking knobs counter-clockwise until the speaker is loose enough in
the bracket to rotate. Hand-tighten the locking knobs to secure the speaker in the
desired angle.
WALL
I
LOOSEN
Driverl
Tweeter
(logo) side
WALL
I
TIGHTEN
Driverl
Tweeter
(logo) side
LISTENING AREA
