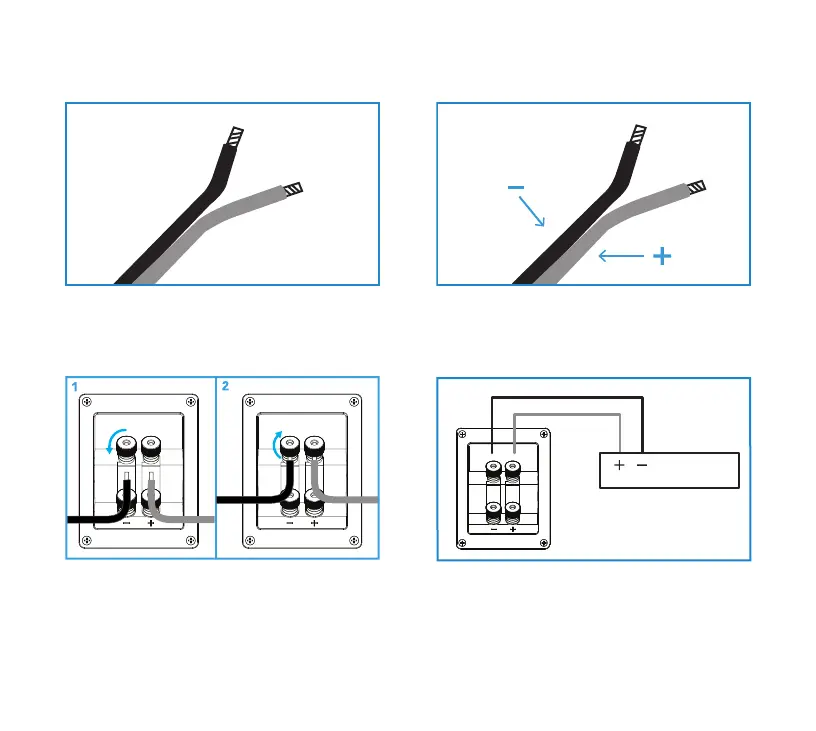

Connecting Your Loudspeakers
STRIP 1/4" (6MM) WIRE 1. IDENTIFY MARKINGS ON WIRE AND ASSIGN +/–
2. APPLY BANANA PLUGS OR SPADES AT THIS POINT
IF APPLICABLE
1. UNSCREW A SET OF BINDING POSTS AND INSERT
THE BARE WIRE INTO THE CENTER HOLE
2. TIGHTEN UNTIL SECURE
Receiver/Amplifier
ENSURE PROPER POLARITY BETWEEN THE AMPLIFIER
AND SPEAKER BY CONNECTING + TO + AND - TO -
TERMINALS
EN-10
