Installation
Glue the first gasket of the beam support.
Install the liner.
Install the second gasket, the stainless steel
flange and screw.
Cut the liner inside the beam support with a
cutter.

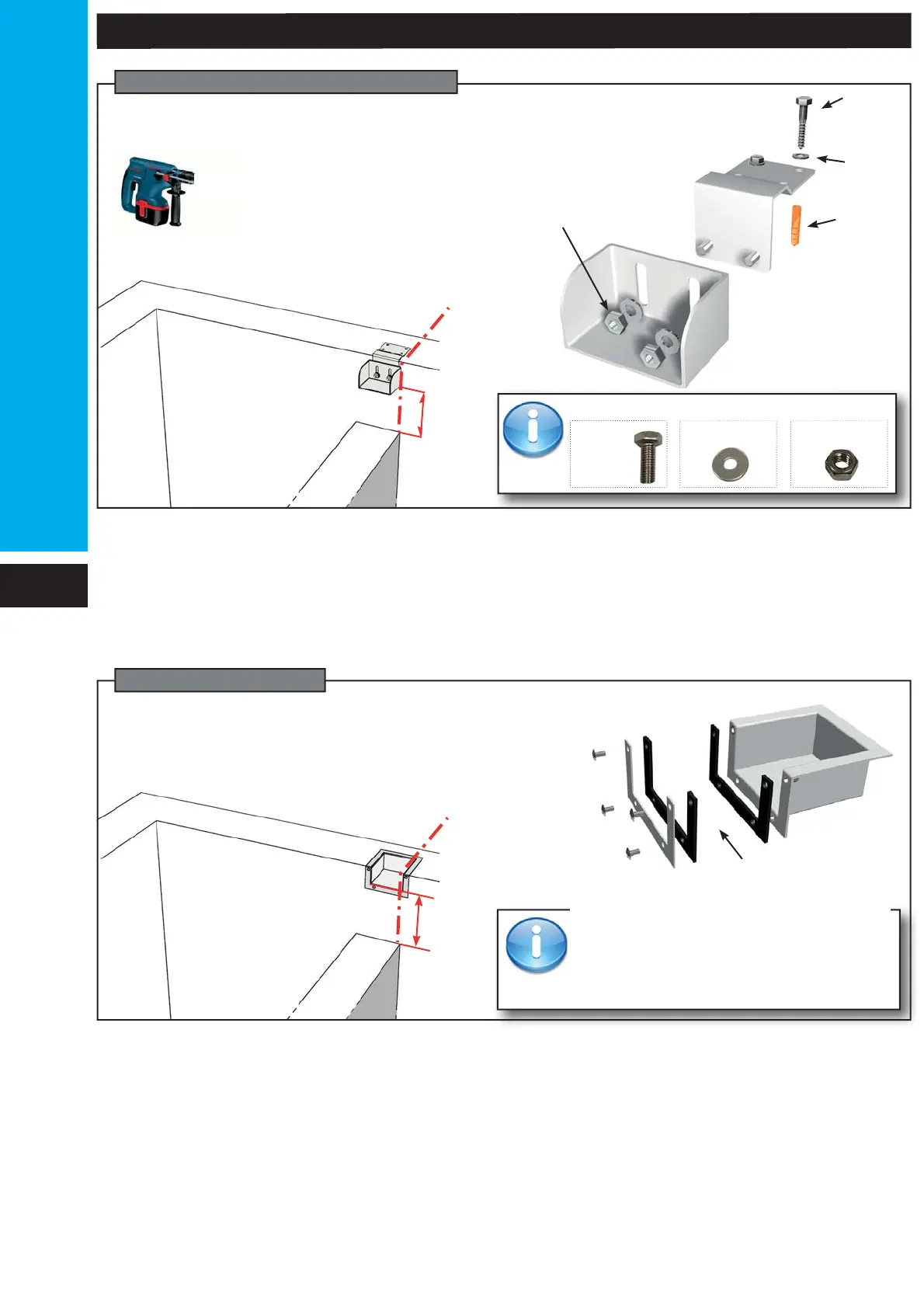

BEAM SUPPORTS
For concrete pools
Hanging support
Washer
Ø10
Screw
inox A4
M10 x 60
Sleeve
Ø12
Nut Inox A4 M10
Ø12
Align the beam support
with the separating wall
15 cm
Max
Cover pit
Cover pit
15 cm
Max
Seal 1
Seal 2
Flange
Liner
Screw
Insert mount
PVC
Panel settlement :
For concrete or panel pools
Align the beam support
with the separating wall
Nut M8
Washer Ø8
Screw
M8 x 20
Insert mounted model
Adjustable hanging mounted model
