DEL RollEnergy Evolution - Page 11

11
Installation
Sleeve 12 x 60
Screw TH M8 x 80
Washer
Ø8.4 x 24
Ø12
80 mm “minimum”
Sleeve
Washer
Do not tighten the
screws after the
resistance point, you
could damage the ins-
tallation.
Concrete
Once the resistance
point has been
reached, turn the
screws 3 times to
finish the installation.
Washer
Concrete blocks

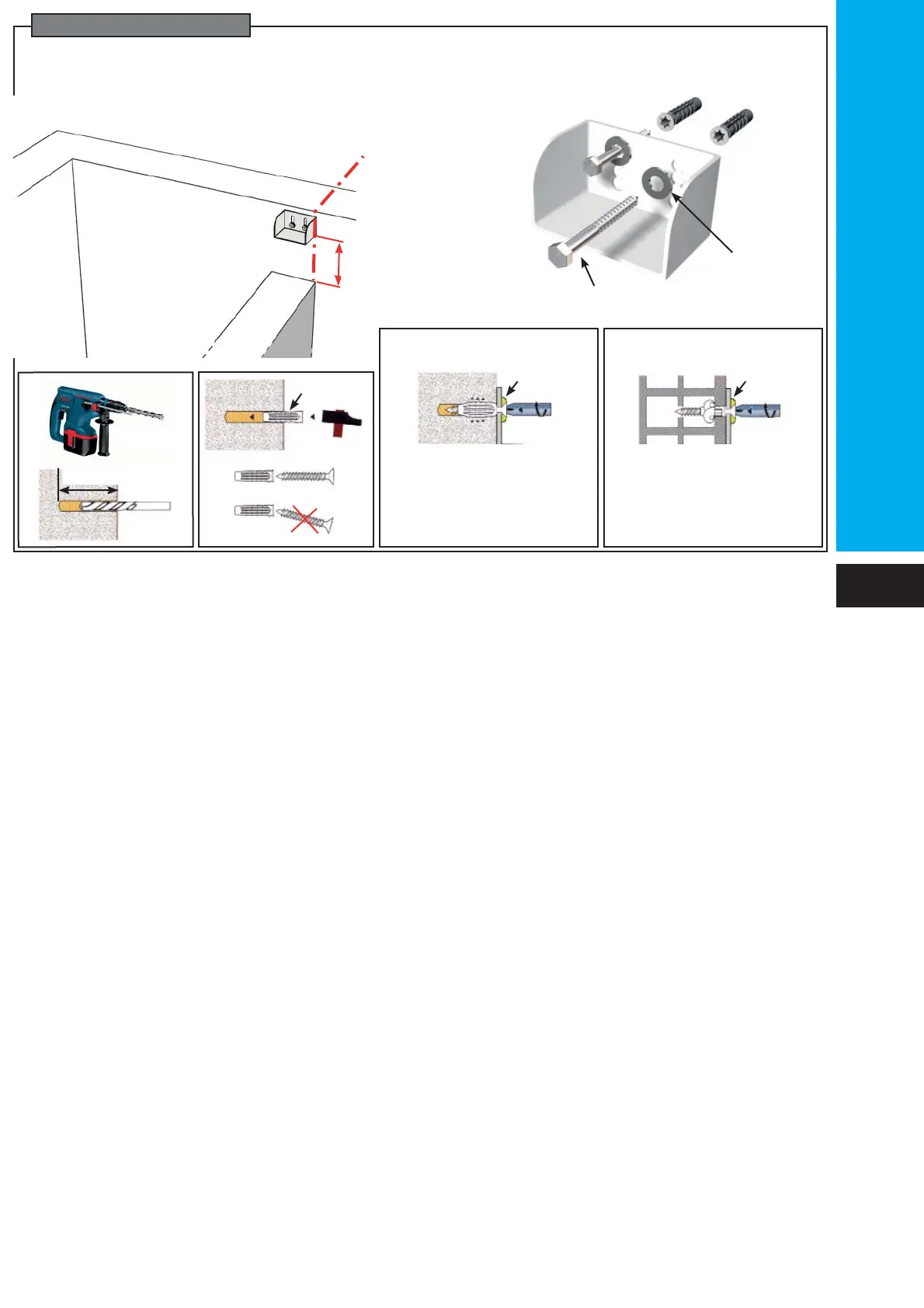

For concrete or panel pools and pools with a wall thicker than 8mm
Align the beam support
with the separating wall
15 cm
Max
Cover pit
Surface mounted model
