Installation

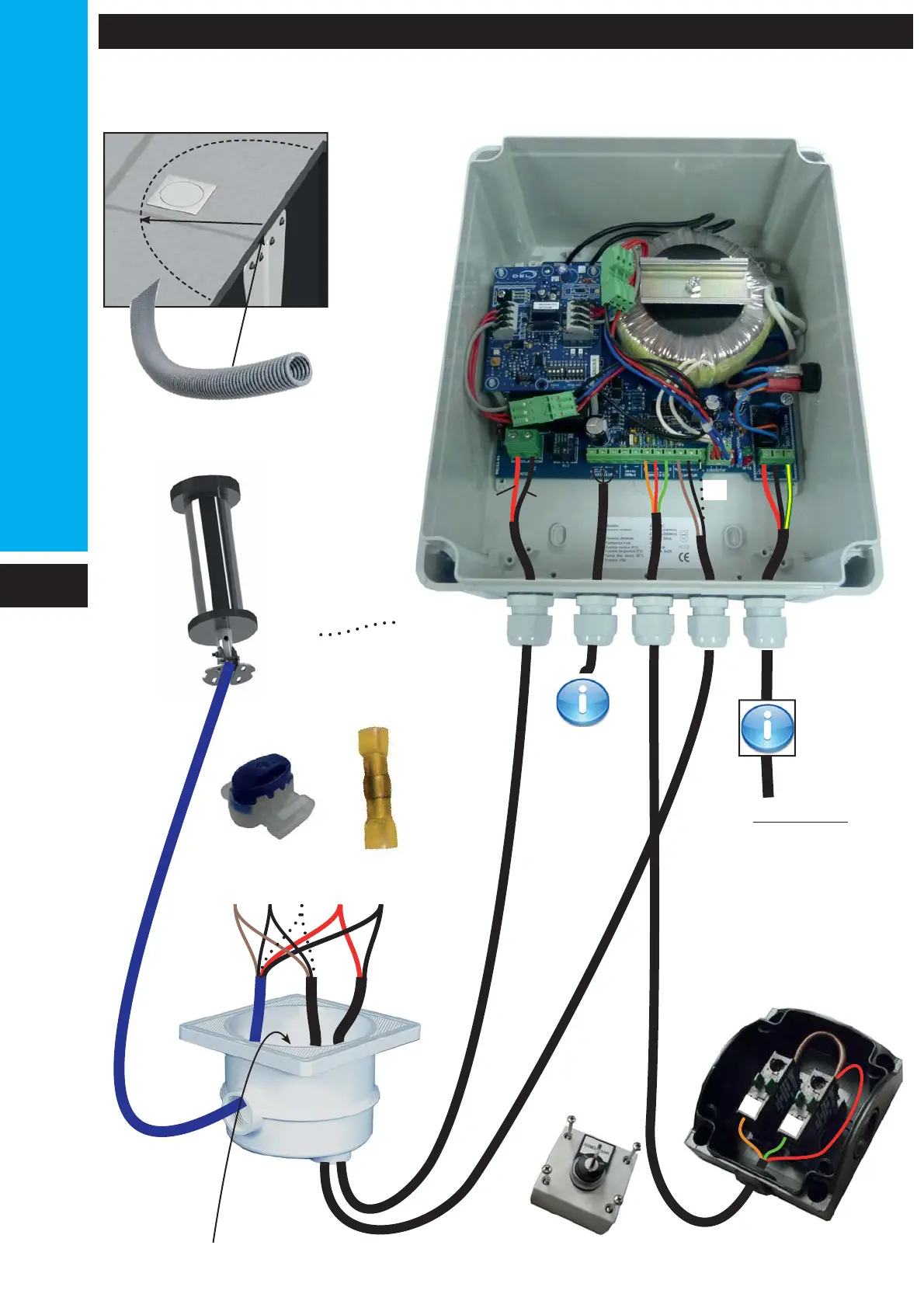

ELECTRICAL WIRING WITH KEY OPERATED BOX
Connection
Plug N and L
230 VDC
monophased 50 Hz
Salt electrolysis
system
The installation must comply with the C15-100 standards (last version).
Installation in a dry, airy and moderate local.
Circuit breaker
with a 30 mA
protection.
3 x 1,5 mm²
2 x 4 mm² - until 16 m
2 x 6 mm² - from 16 until 25 m
3 x 1,5 mm²
50 cm maxi
a* :
Wire present or
not depending on
the motor type
We recommend applying sealing gel in the connection box a er having completed the wiring.
