Installation
INSTALLATION QUICK-LOCK
A water level regulator is mandatory
5 cm
mini
VBA TF Torx
stainless steel A4 Ø6
Hollow white
Ø16 washer
Inserted
part
adjustement
For concrete and panel pools
For concrete and panel pools
5 cm
mini
For concrete and concrete block pools, as well as pools with
wall thickness greater than or equal to 8 mm
Ø8
60 mm “minimum”
Plug
Washer
Once the resistance
point has been
reached stop screwing,
this would deteriorate
the fixture quality.
Concrete
After reaching the
resistance point, make
3 more turns of the
screwdriver
to finish tightening.
Washer
Concrete block
water level
Acceptable limit of
level variation
recommended
water level
Acceptable limit of
level variation
recommended
water level
Acceptable limit of
level variation
recommended

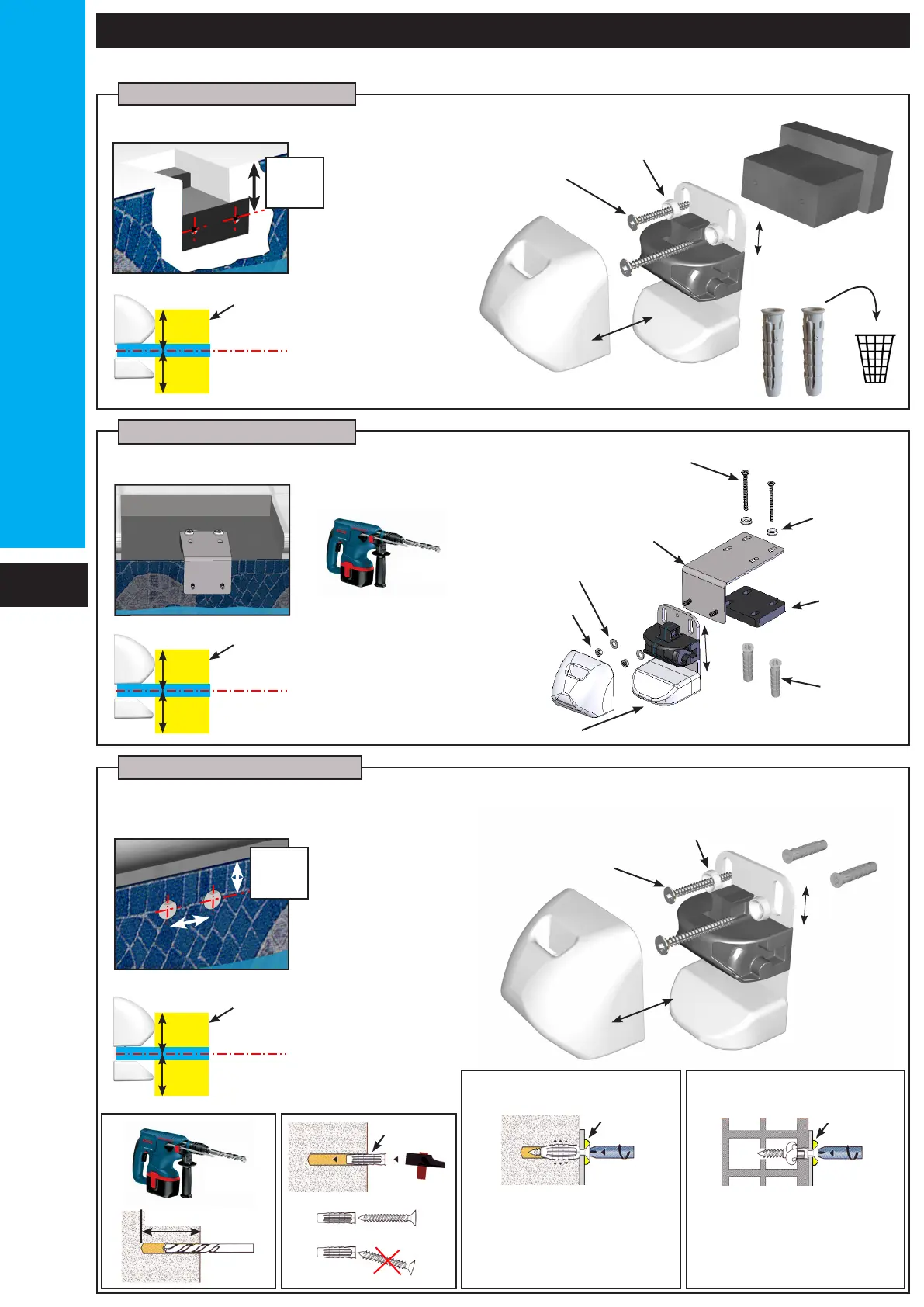

Hang mounted version
Insert mounted model
Surface mounted model
Hang mount support
Ø12 Nylon
plug
Stainless steel nut
A4 M10
adjustment
VBA TF Torx stainless steel
Hollow white Ø16
washer
Cale
13 mm
Inox M6 washer
Universal 8 x 40 plugs
adjustment
VBA TF Torx stainless
screw
Hollow white Ø16
washer
