DeLaval MM27BC User Manual

No 2 Replace fat sampler parts
No 2 Replace fat sampler partsNo 2 Replace fat sampler parts
No 2 Replace fat sampler parts
Replacement parts or kits:
 Art No: 85132601
2.
2.2.
2. Unscrew the wing nuts and remove the
bolts.
3.
3.3.
3. Lift off the meter inlet and change the gasket
mounted in the inlet.
4.
4.4.
4.
5.
5.5.
5. Place the new gasket tightly into the cavity
of the inlet tube with the correct orientation
to match retangular channel. It is important
to press the inlet tube tight against the milk
meter to compress the gasket as the screws
are reinserted.
Frequency 2000h of operation
Max. interval 12 months
Estimated time: 5 min
Service type: Replace

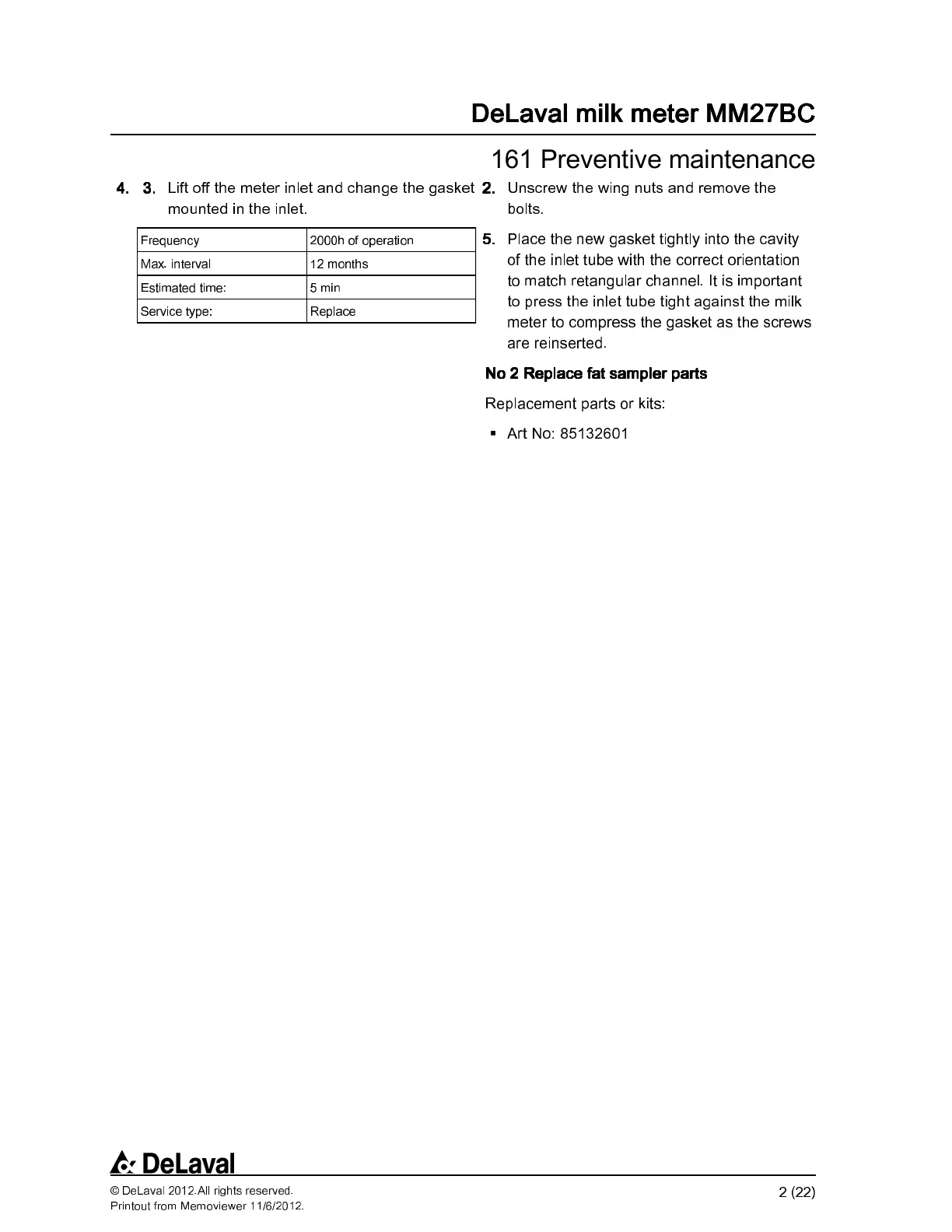

DeLaval milk meter MM27BC
DeLaval milk meter MM27BCDeLaval milk meter MM27BC
DeLaval milk meter MM27BC
161 Preventive maintenance
2 (22)
© DeLaval 2012.All rights reserved.
Printout from Memoviewer 11/6/2012.
