Moving glass outer side
3
Glass Door UP
2
11
shower tray or
shower base
2
11
shower tray or
shower base
Glass Door down
a. b.
d.
e.

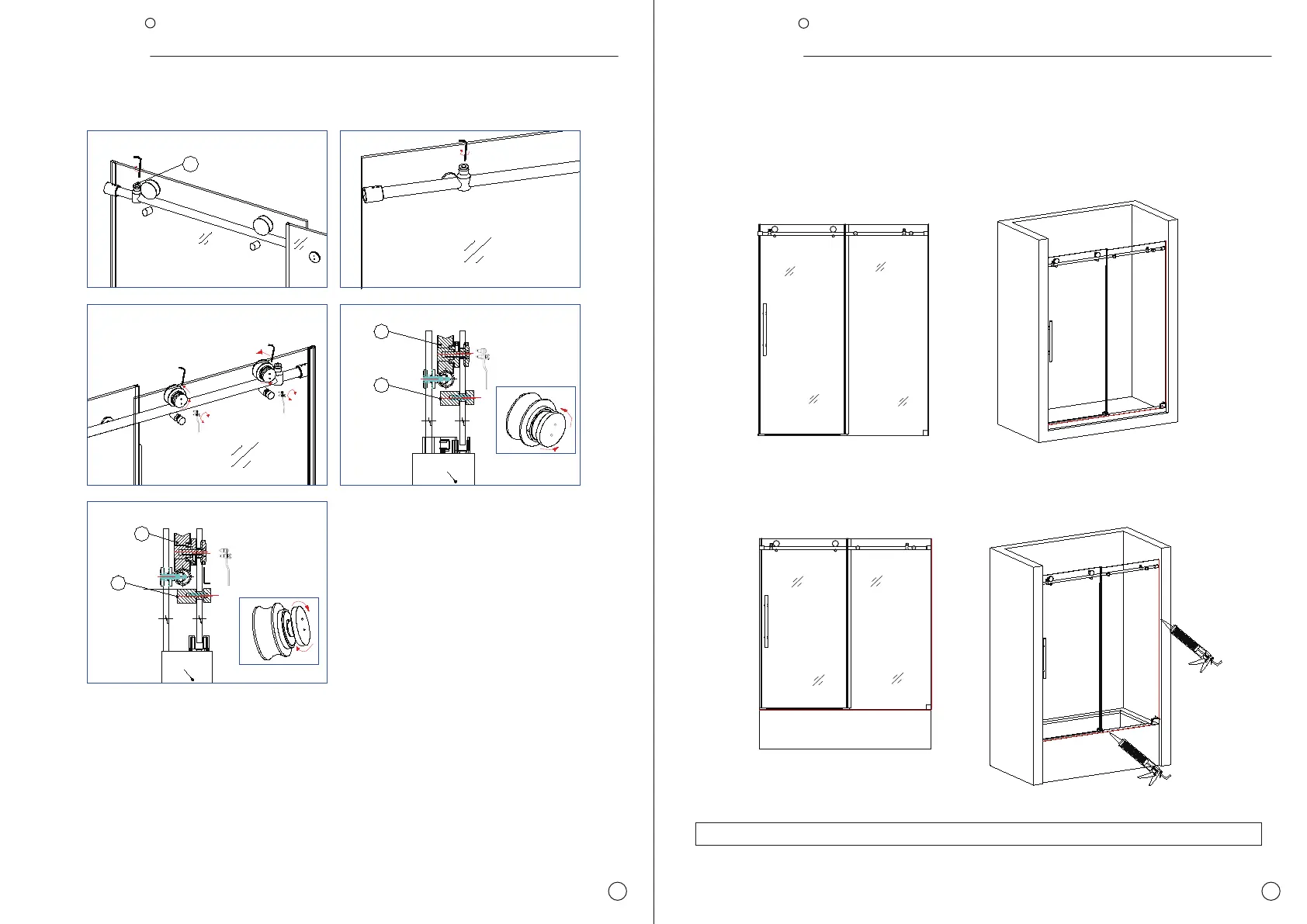

12.Adjust the Roller(5) and fix the Glass Door Stopper(3)
Adjust the fasteners on both Rollers (5) to ensure that the bottom edge of the Glass door (7) will not
touch the bottom of the guide block (14).
Slide the Door Stopper (3) close to the wall side, slide the Glass Door(7) to make roller(4) contact to
the stopper and get perfect space then lock the stopper bottom screw.
Please make sure that the Glass Door(7) especially the door corners will not hit the walls when
closed and opened
Moving glass inter side
13
TUB DOORS INSTALLATION the same as SHOWER DOORS
MUST ALLOW SILICONE TO DRY FOR 24 HOURS BEFORE STARTING USING THE SHOWER
13. Apply silicone sealant on the seams between the stationary glass and the shower base/bathtub,
and between the wall and the stationary glass.
