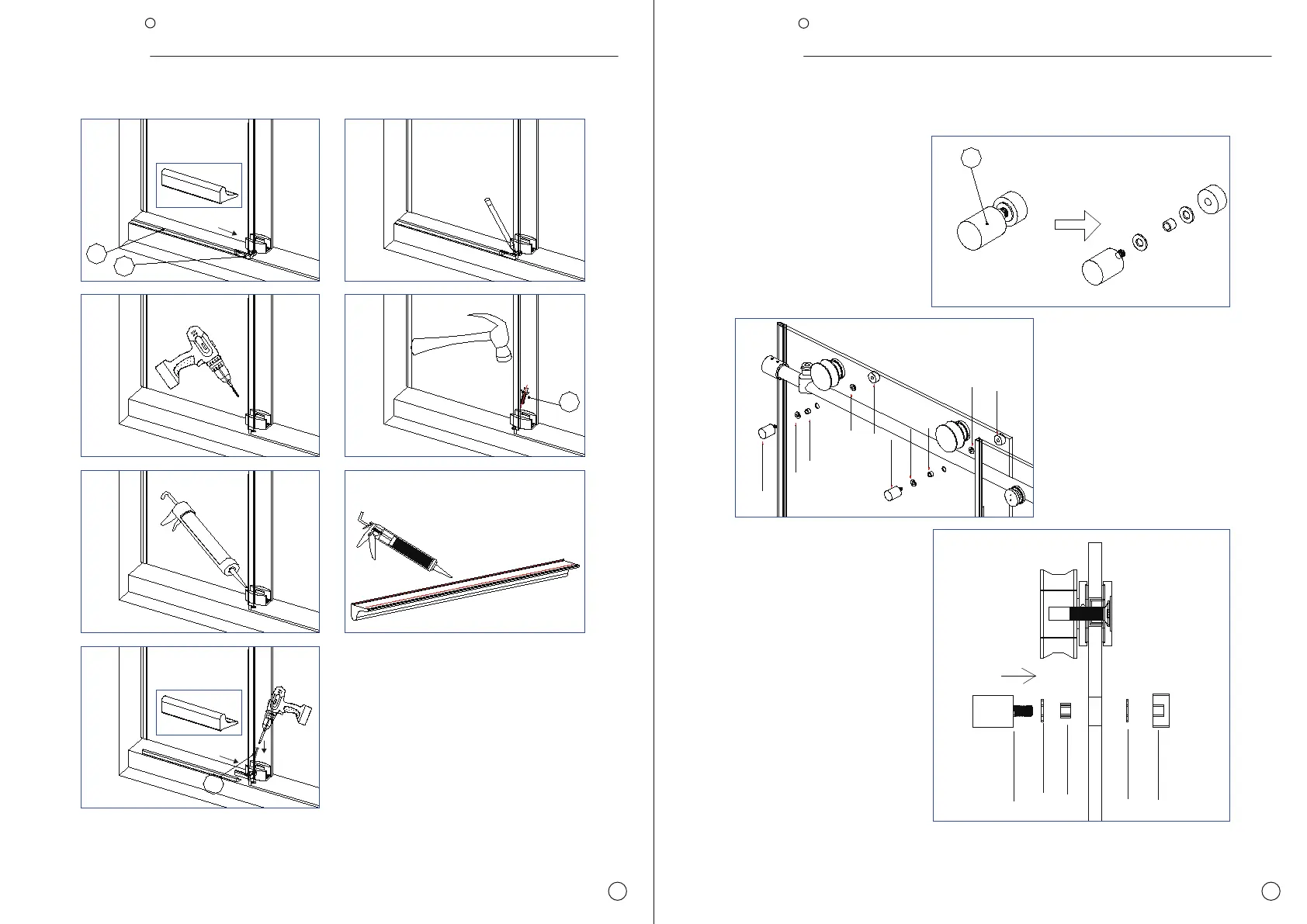

10.Install the Anti-Splash Threshold (9) in front of
the Glass Door (7). Put the Anti-splash threshold
in front of the glass door, and then put the
Aluminum Cover with slot into the Stationary
Glass(17), on top of the threshold.
Put the other cover to the other side. Mark down
the predrilled holes on the threshold, drill the
holes with drill bit, put the wall anchor (15). Put
slicone sealant to the bottom of the Anti-splash
threshold, secure it to the threshold with M4x25
Screw (10) and put the covers back on it.
10
Screw M4X25
a. b.
d.
c.
e.
e.
g.
9
11
15
b.
Fixed base
Clear Gasket
Washer
C
lear
Gasket
Inner cover
20
a.
c.
Fixed base
Gasket
Washer
Gasket
Inner cover
Fixed base
Gasket
Washer
Gasket
Inner cover
11. Install the Safety Pin(20) to the Glass
Door (7). Make sure that the clear gasket
will be between the glass and the metal
parts of the safety pin.
