14- ENG
1. Back away from the sur face to be cleaned. The further away you are, the
less the pressure will be on the surface to be cleaned.
2. Change to the 25˚ nozzle. This nozzle delivers a less powerful stream of water
and a wider spray pattern. Refer to How To Use Spray Wand.
NOTICE: DO NOT attempt to increase pump pressure. A higher pressure setting
than the factory set pressure may damage pump.
HOW TO USE SpRAY WAND
The nozzles for the spray wand are stored in the nozzle holder on the panel assembly.
Colors on the panel identify nozzle location and spray pattern. Refer to the following
chart to choose the correct nozzle for the job to be performed.

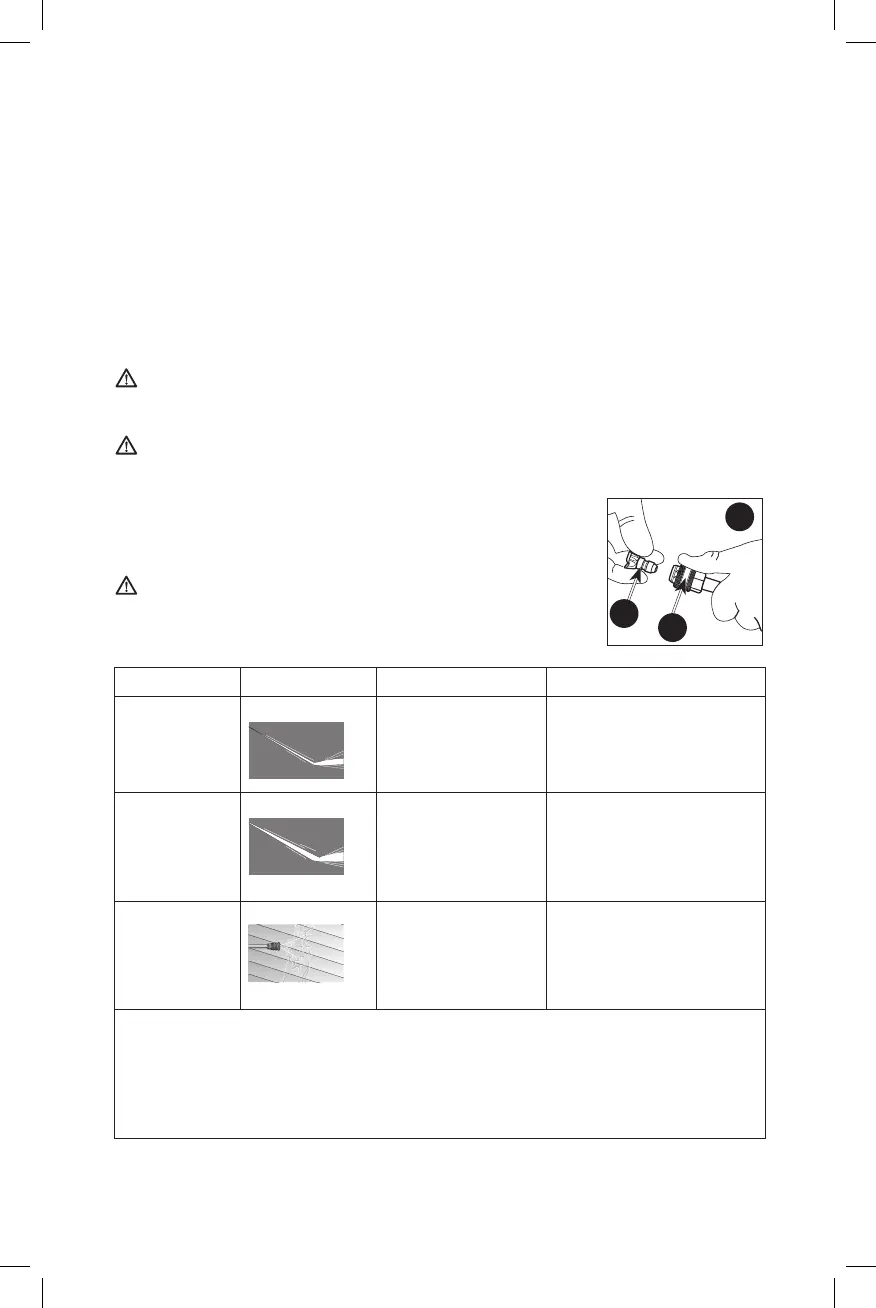

CHANGING NOzzLES ON SpRAY WAND (FIG. 8)
DANGER: Risk of fluid injection. Do not direct discharge stream toward
persons, unprotected skin, eyes or any pets or animals. Serious injury will
occur.
WARNING: Flying objects could cause risk of serious injury. Do not
attempt to change nozzles while pressure washer is running. Turn engine off
before changing nozzles.
1. Pull quick-connect coupler (E) back and insert nozzle (K).
8
K
E
2. Release quick-connect coupler and twist nozzle to make
sure it is secure in coupler.
WARNING: Flying object could cause risk of serious
injury. Ensure nozzle is completely inserted in quick-
connect socket and quick-connect collar is fully engaged
(forward) before squeezing gun trigger.
NOzzLE COLOR SpRAY pATTERN USES SURFACES*
Yellow
15˚
intense cleaning
of unpainted
hard surfaces
grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Green
25˚
standard cleaning
nozzle for most
applications
yard tools, sidewalks,
lawn furniture, unpainted
siding, stucco, gutters
and eaves, concrete,
brick surfaces
Black
low pressure
applies cleaning
solutions
Low pressure
spray is safe on all
surfaces. Always verify
compatibility of cleaning
solution prior to use.
*NOTICE: The high pressure spray from your pressure washer is capable of
causing damage to surfaces such as wood, glass, automobile paint, auto striping
and trim, and delicate objects such as flowers and shrubs. Before spraying, check
the item to be cleaned to assure yourself that it is strong enough to resist damage
from the force of the spray.
