Delem
V1101, 4.17
If the cursor is on X and the pop-up window is activated, the values for the angle, the distance
and the position of the X1-finger can be programmed through X1 and Z1. The values of X2 and
Z2 will be adjusted according to the values of distance and angle, they cannot be altered directly.
If the cursor is on X2 and the function is activated, angle, distance and the position of the X2-
finger can be altered and X1 and Z1 will then be calculated.

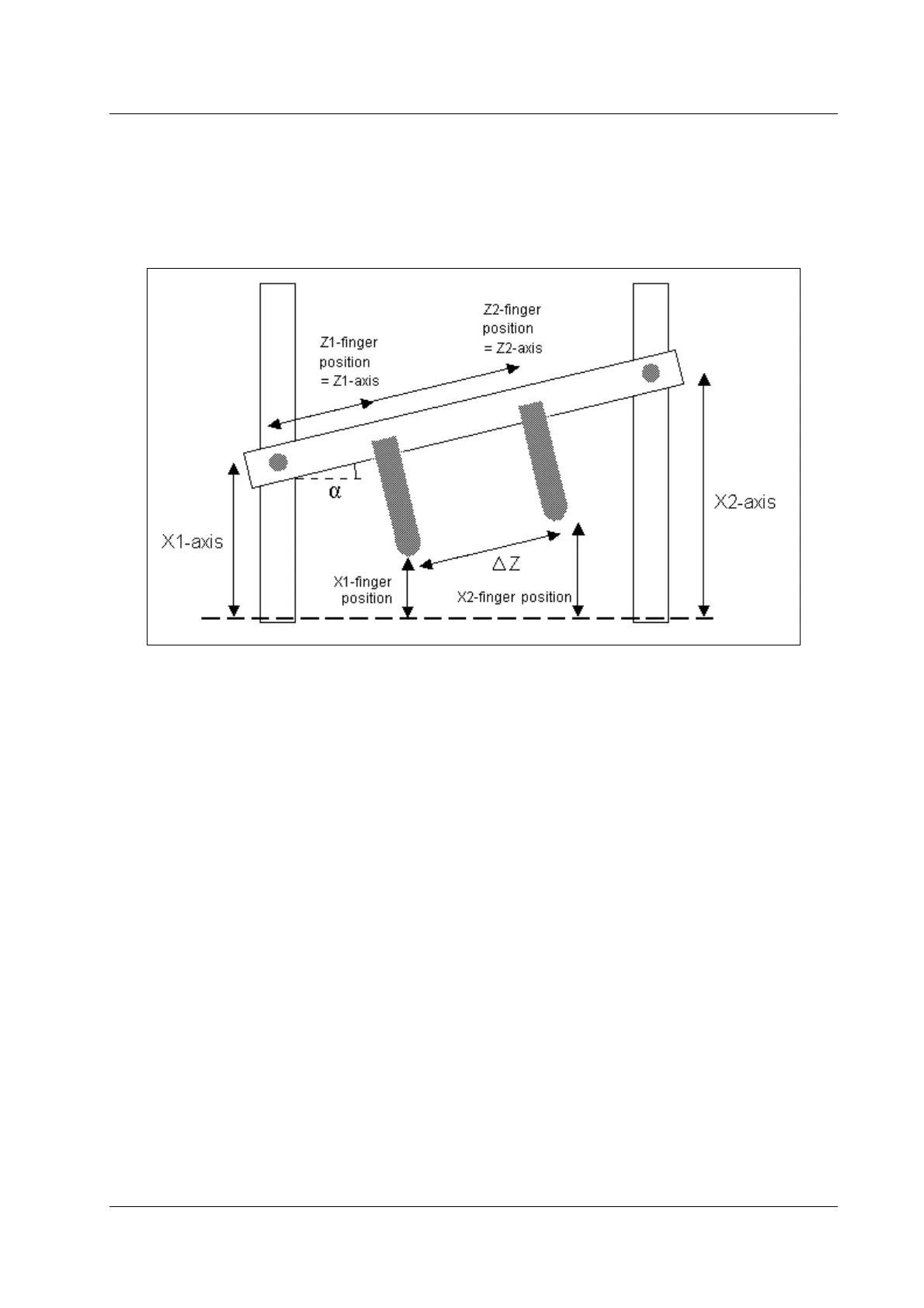

Figure 4.6.b
In case of a crossbeam system, X1/X2 must be programmed as the distance from the bend line to
the gauge point, Z1/Z2 is simply the value of the Z-axis on the crossbeam.
In the case of a console system, the programmed gauge position co-ordinates and the calculated
axis values are similar.
