Delem
V1101, 2.2

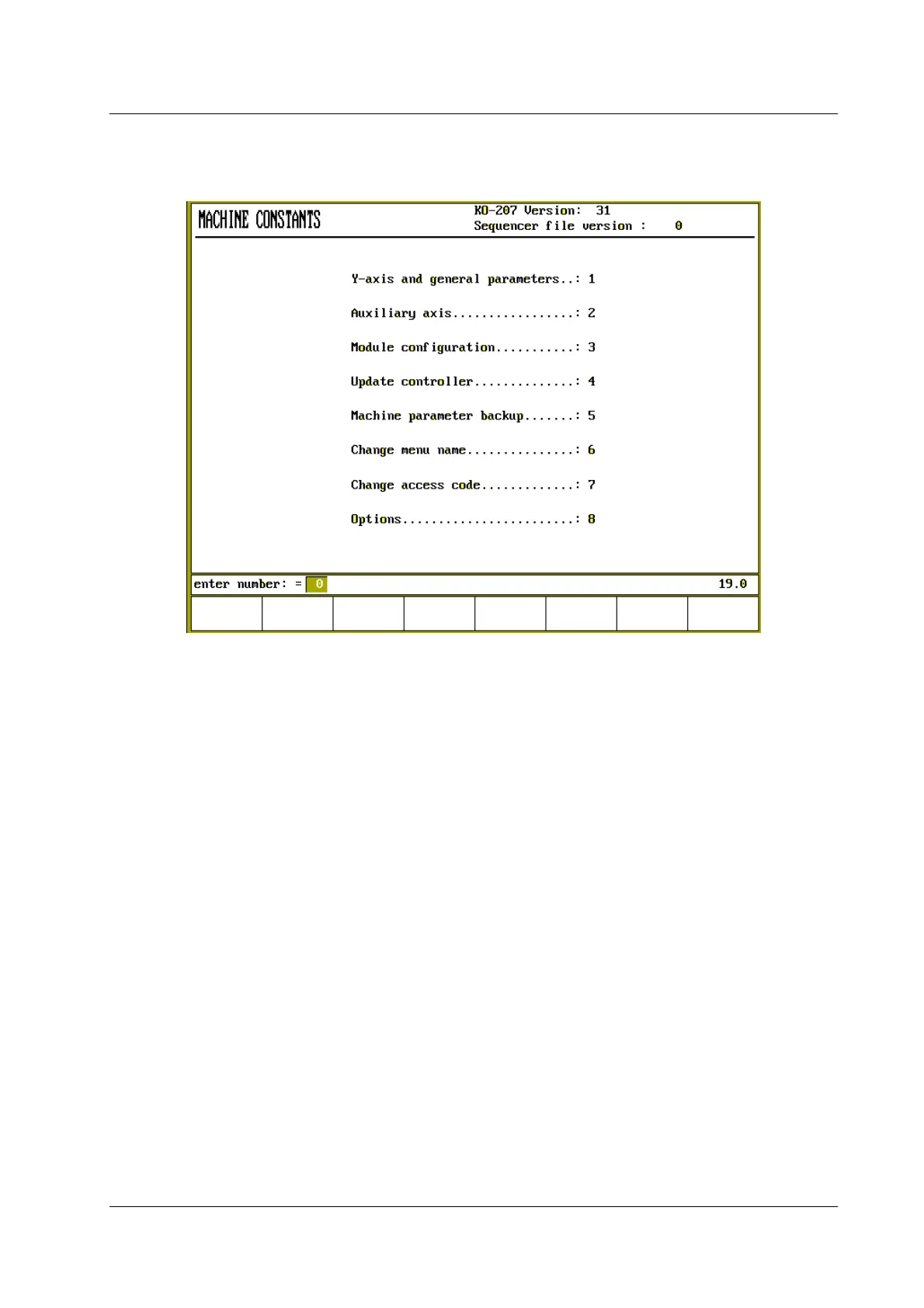

In figure 2.2.a you see the main machine parameter menu of the control.
Figure 2.2.a
2.3 Y-axis and general parameters
Behind this selection possibility you find the basic machine parameters to control the Y-axis.
This menu also includes the parameters to program the press brake specifications, such as
dimensions. See also section 2.7 for parameters backup and chapter 3 for full explanation upon
the parameters.
2.4 Auxiliary Axes
Per type of control you can activate a number of auxiliary axes. An auxiliary axis is not active
when it is disabled in the axes menu. The required function of an auxiliary axis is determined by
the combination of ‘axis type’ and ‘drive type’. Not all combinations are permitted.
Based on the allowed combinations the chapters 4 until 9 have been defined. In these chapters
you find explanation on the parameters in more detail. In this section some attention points are
mentioned with respect to:
• configuration and enabling auxiliary axes;
• the use of ‘dummy axes’;
• using an input/output module.
