Parameter 7: Tool Reference
Range : 0.00-9999.99
Default : 320.00
Units : mm
Function
The reference height for the computation of the Y-axis bend position in case you have selected
angle programming. This value is used in the computation of the bending depth, mute point and
clamping point.
Description
Maximal opening of the machine measured between beam and table.

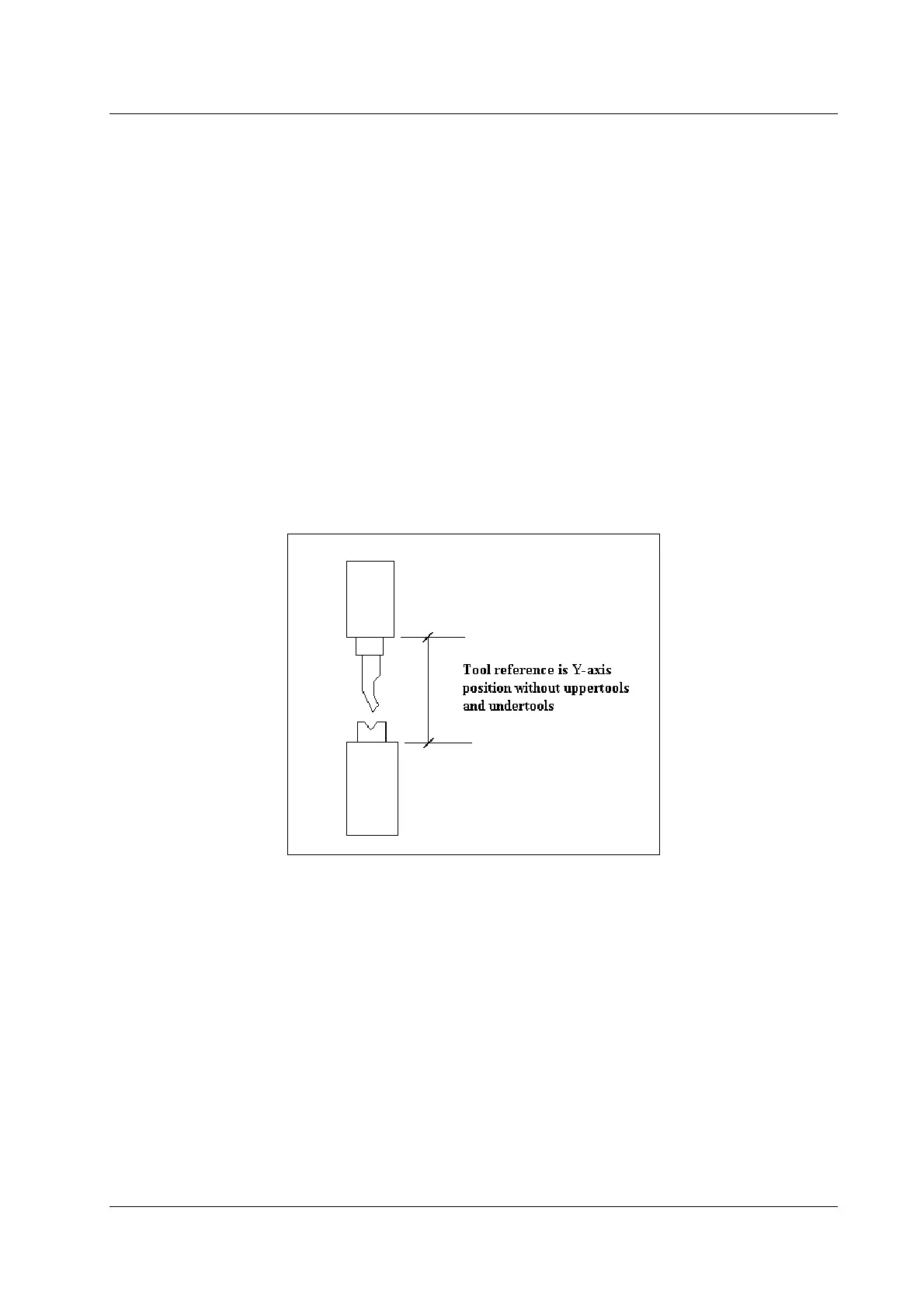

Figure 7.a
