Delem
V1101, 3.27
Parameter 27: Pressure ramp
Range : 0 - 255
Default : 255
Units : DA-points
Function
To program a ramp with which you control the pressure output.
Description
It is possible to program a ramp with which the pressure output will be activated. A lower value
will give a large ramp. This parameter is activated at every pressure change.

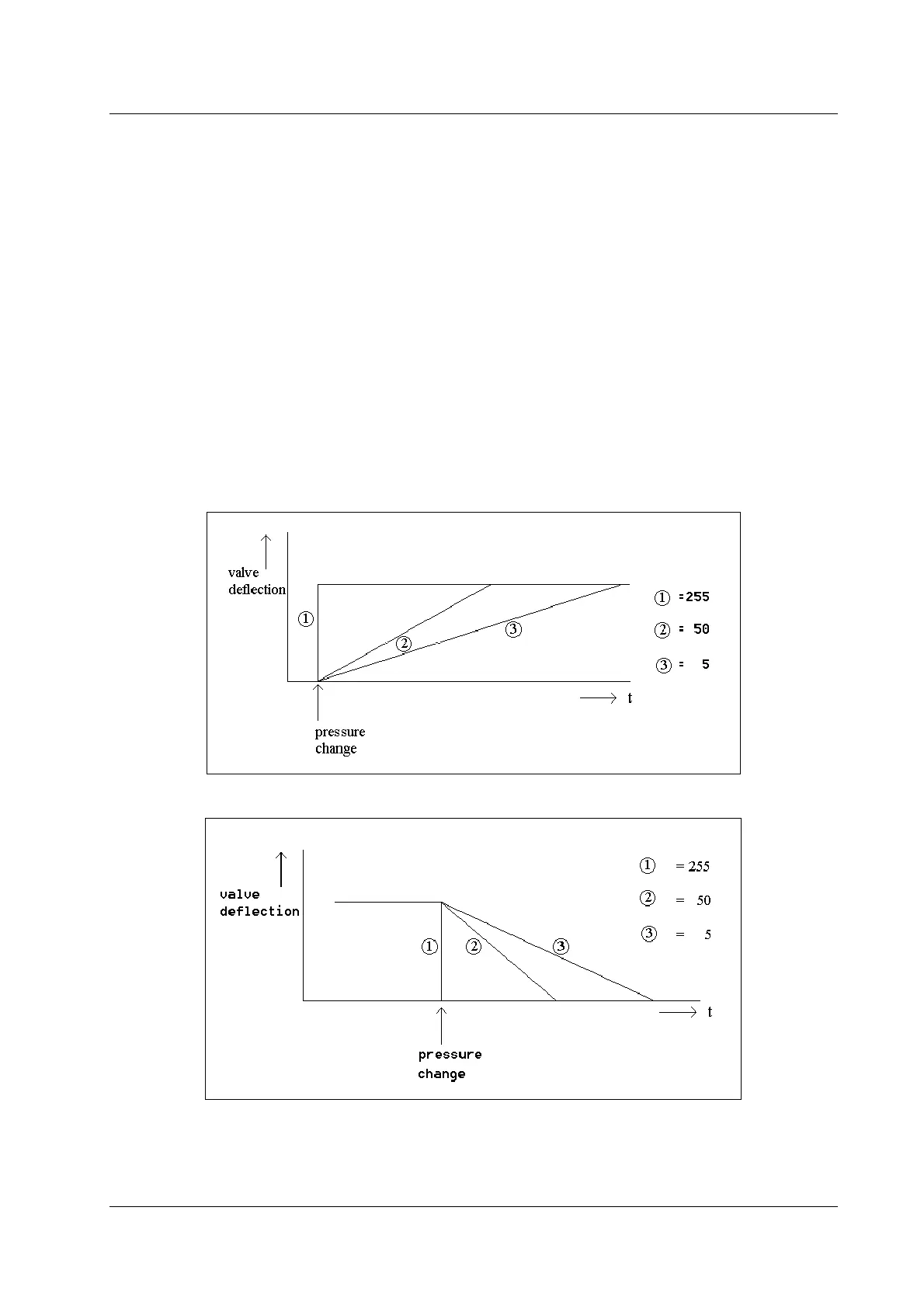

Figure 27.1 Low-high pressure change
Figure 27.2 High-low pressure change
