Delem
V1101, 3.35
Parameter 35: Opening ramp offset
Range : - 9.99 - +9.99
Default : - 1.50
Units : mm
Function
Offset to adjust stop position in UDP.
Description
When the beam is opening with fast speed (status = 6, service row) it starts braking when it
approaches the upper dead point. The braking ramp is computed by the control. With this offset
the start of the braking ramp can be set relative to the UDP.

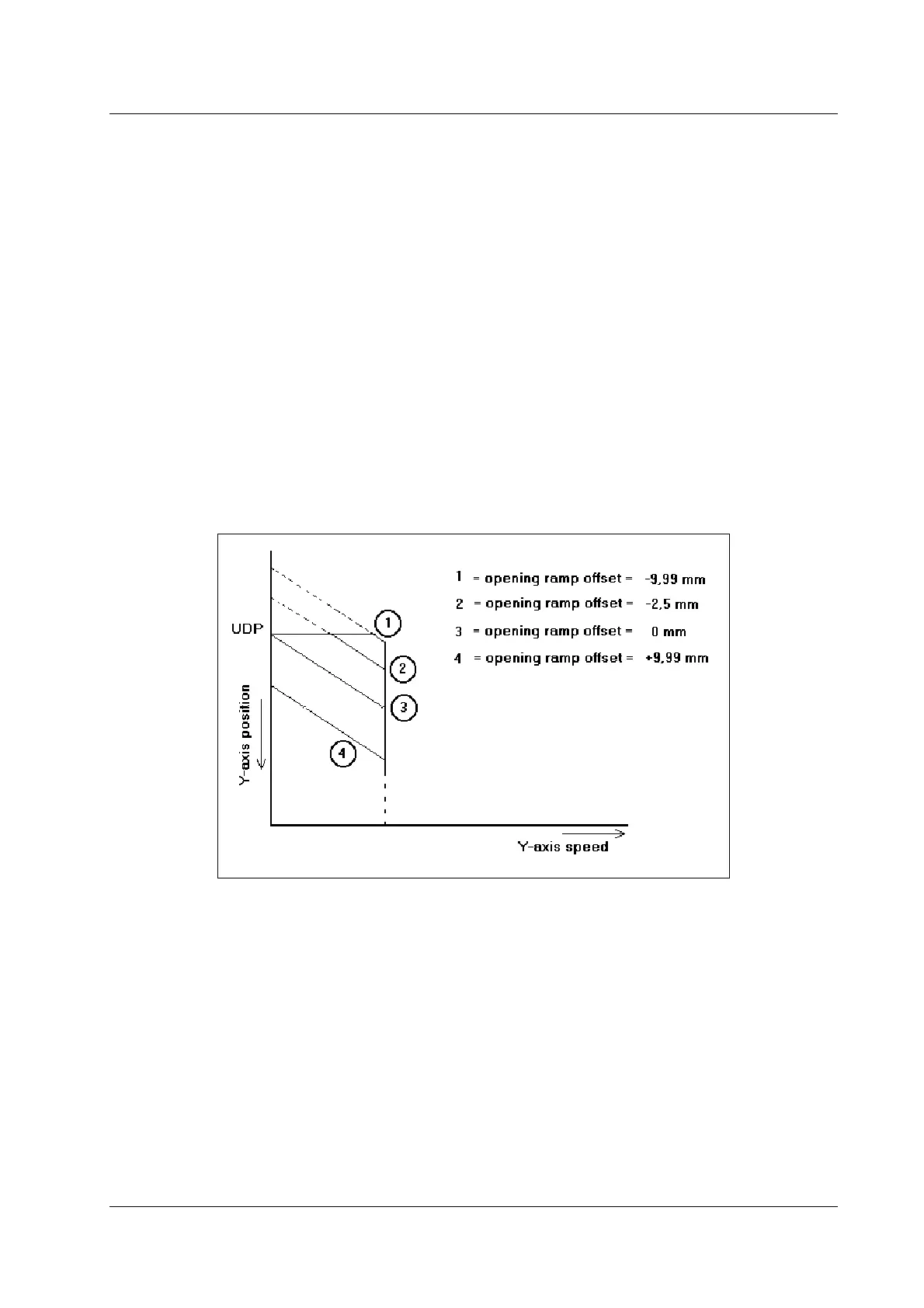

Figure 35.a
