F18 Series Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
14

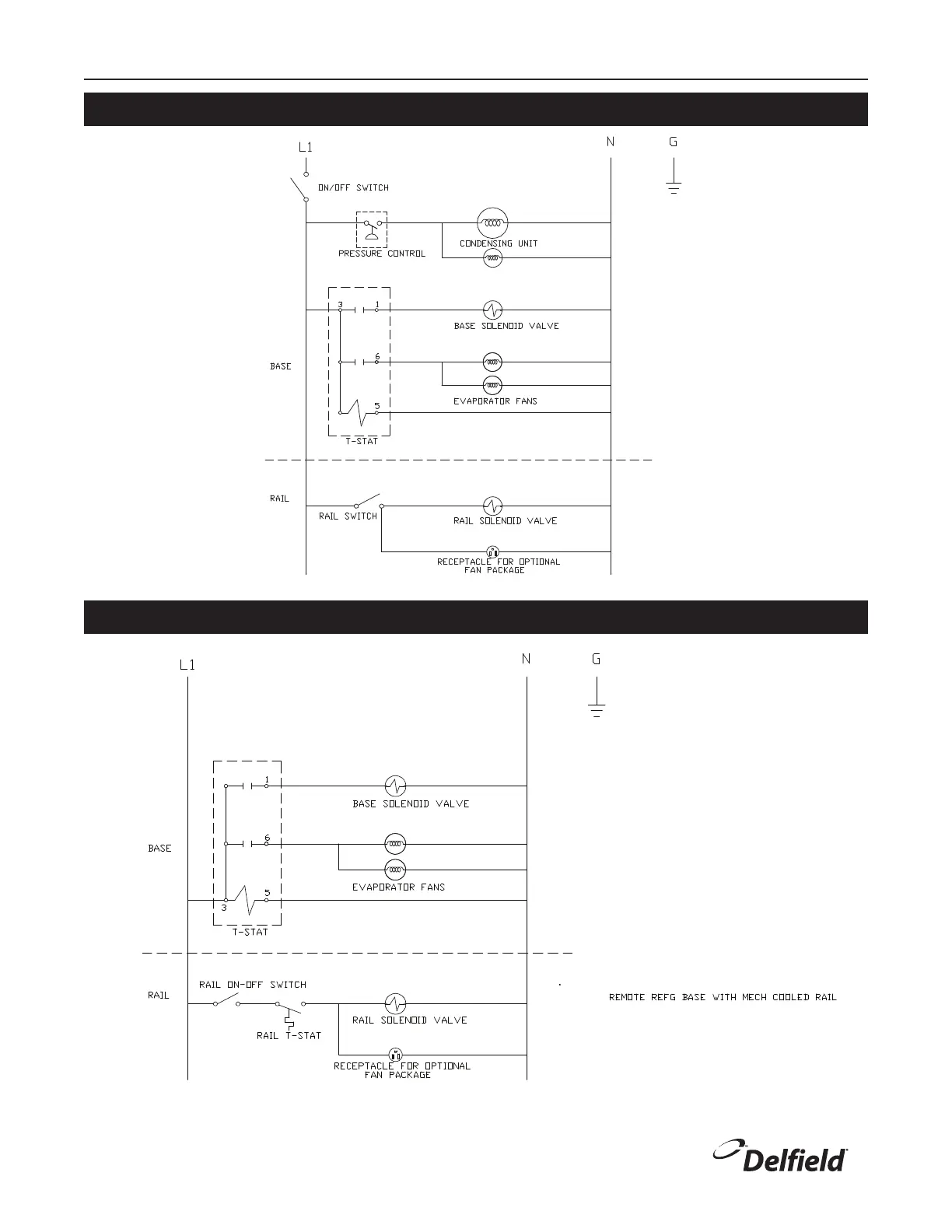

Wiring Diagram, F18MC, F18SC, F18DC & F18RC
Wiring Diagram, F18MR, F18SR, F18DR & F18RR
