MODEL NUMBER OF NUMBER 0F STORAGE SHELF AREA SHIP WEIGHT BTU DESIGN LOAD EVAP. CAP.
NUMBER DOORS PANS CU. FT. SQ. FT. H.P.* AMPS LBS/KG BASE/RAIL BTU /°TD
F18RR44
(2) 19” 10 9.49 5.12 1/4
3.0 485/220 547/441 120/19
F18RR52
19” & 27 12 11.81 6.51 1/3
3.0
540/245 625/529 120/23
F18RR60
(2) 27” 14 14.14 7.90 1/3
5.0
620/281 703/617 120/26
F18RR70
(2) 32” 16 17.05 9.64 1/2
5.0
700/317 800/794 120/32
F18RR79
(2) 27” & 19” 20 18.68 10.29 1/2 5.0
735 /333 962/882 240/36
F18RR87
(3) 27” 22 21.30 11.85 3/4
5.0
765/347 1032/970 240/39
*Recommended horsepower

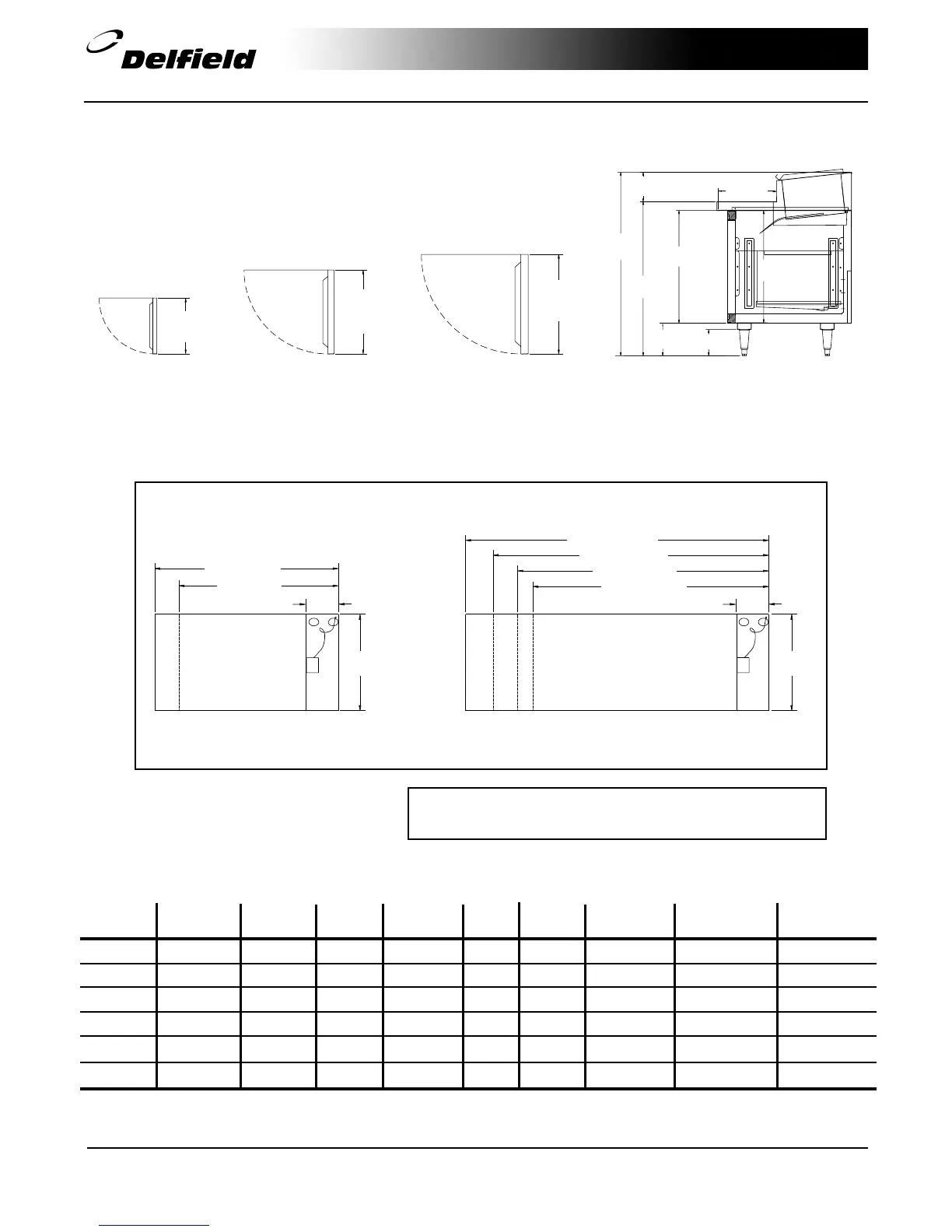

Mechanical Data–Standard Unit
44" (111.8cm)
52" (132.1cm)
60" (152.4cm)
70" (177.8cm)
79" (201cm)
87" (221cm)
31.5"
(80 cm)
31.5"
(80 cm)
J = JUNCTION BOX
R = REFRIGERATION LINES 1/4" LIQUID, 38" SUCTION
D = DRAIN 1/2"
MECHANICAL DETAIL
J
J
R D R D
6" (15.2cm) 6" (15.2cm)
NOTE; UNOBSTRUCTED AIRFLOW MUST BE MAINTAINED TO
INSURE UNIT PERFORMANCE AND MAINTAIN WARRANTY.
17"
[43.1cm]
CLEARANCE
25"
[63.5cm]
CLEARANCE
30"
[76.2cm]
CLEARANCE
19" [48.3cm]
DOOR
27" [68.6cm]
DOOR
32" [81.3cm]
DOOR
END VIEW
ALL MODELS
6.13"
[15.6cm]
7.62"
[19.4cm]
36"
[91.4cm]
26.31"
[66.8cm]
24"
[61cm]
42"
[106.7cm]
6"
[15.2cm]
14.29"
[36.3cm]
PAN COVER, WHEN OPEN, EXTENDS
TO A HEIGHT OF 12" [30.5cm]
F18RR
The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2001 The Delfield Company. All rights reserved. Printed in U.S.A.
DS18RR 03/01
31.5” (80cm) Deep Remote Reduced Height Rail
