(4) Wire selection. 1~2 copper wires with a cross-sectional area of 0.5mm²~1mm² are used.

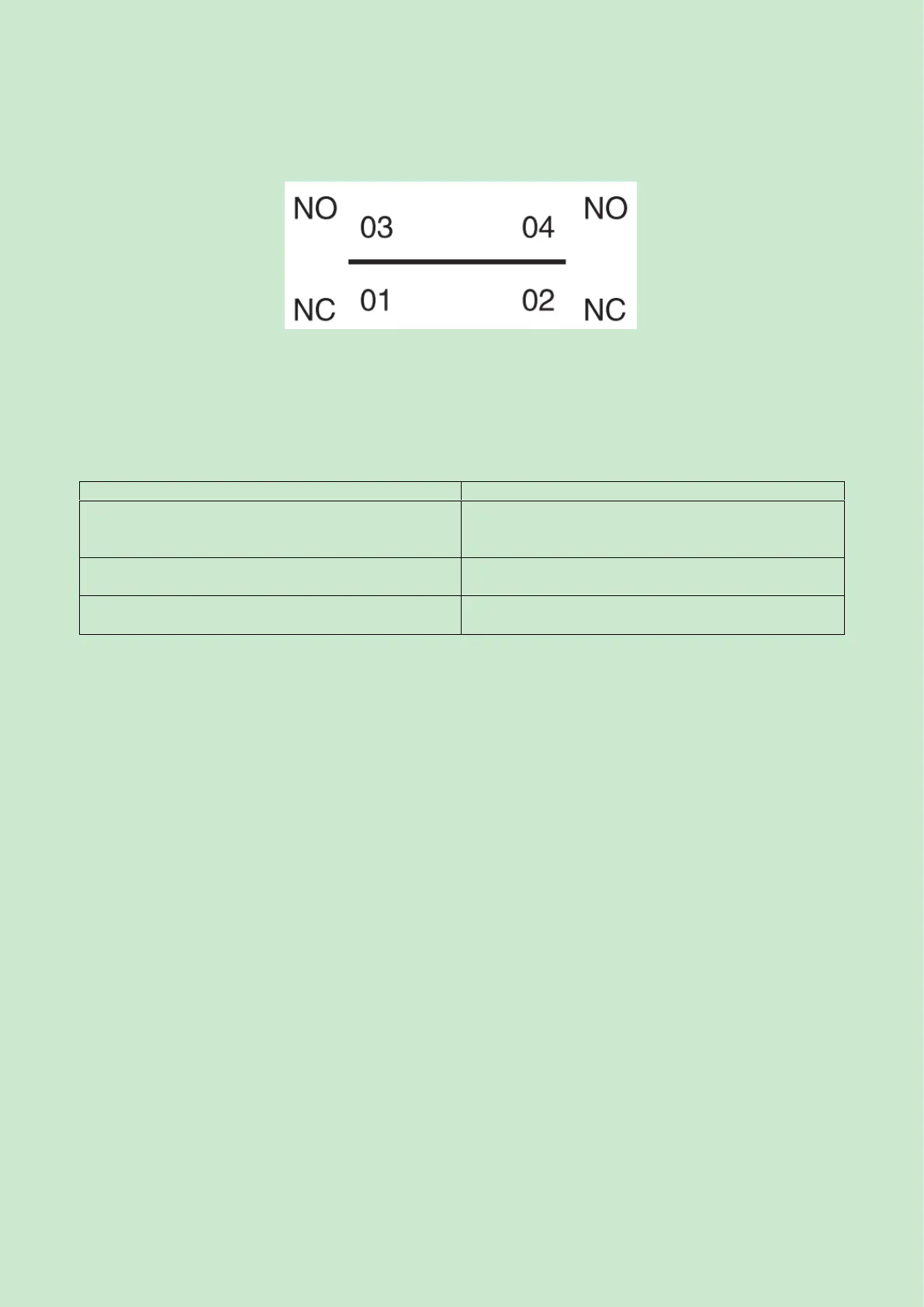

(5) When connecting the lead wire, refer to the wiring diagram above the core. The NC means normally closed
contact, and NO means the normally open contact. The diagram is shown in figure. Please carefully distinguish
the normally open and normally closed contact terminal sets at the core wiring terminal of the switch to prevent
reverse or wrong connection.
Fig. Wiring diagram
Maintenance and Service
The installation, maintenance and service shall be performed by the qualified professional;
The product shall be de-energized during the maintenance and servcie;
The mainteance and service is conducted once a year under normal operating conditions, and the mainteance
contents are listed in table below.
Table Maintenanc and Service
Item
Contents
Appearance
No dust, no condensation, clean if necessary
No damage
No color changes on the shell and connecting terminal
Wiring terminal connection
Tighten it according to the tightening torque 0.8N
without any looseness.
Switch making and breaking reliabilty
Check whether the swtich is connected or disconnected
before and after action.
Company Commitment
Under the condition that users follow the use and storage conditions and the product are well sealed, within 36
months from the production date, our company will provide repair and replacement service free of charge for any
damage or abnormal operation due to poor manufacture quality. A paid repair will be provided if the warranty
period expires. For any damage due to one of the following situations, a paid repair will be given even if within
the warranty period:
