LXK3 Series Travel Switch
User Manual
Safety Notice
Please carefully read this instruction before the installation, operation, run, maintenance, and inspection,
and follow the contents of the instruction to properly install and operate this product.
Danger:
⚫ Do not operate the travel switch with wet hands;
⚫ It is forbiddent to touch the live parts during operation;
⚫ Mark sure that the product is deenergized during the maintenance and service;
Caution:
⚫ The installation, maintenance and service shall be performed by the qualified professional;
⚫ Various characteristics of product have been set in factory and cannot be disassembled or adjusted
without permission during operation;
⚫ Please confirm that the rated voltage, rated current, frequency and characteristics of the product meet
the operating requirements before use;
⚫ If found damage or abnormal sound when unpacking, please stop the machine immediately and
contact the supplier;
⚫ When scrapping the product, please dispose the product waste properly. Thanks for your cooperation.
About LXK3 Series Travel Switch

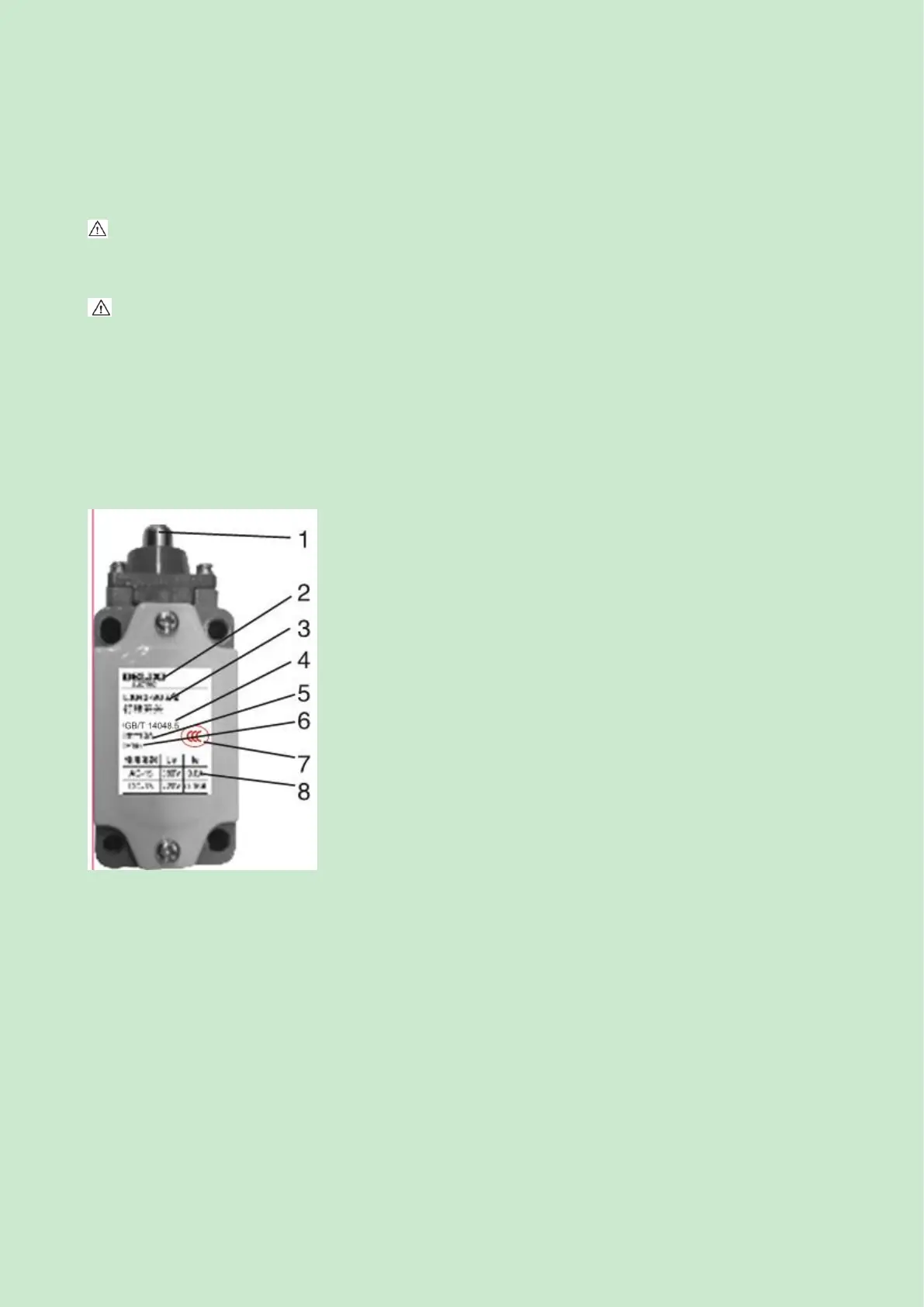

● Panel Introduction
Legends:
1. Hit head structure type
2. Company logo
3. Product model
S – Vertical type protective shell, with a wire outlet hole on the bottom
H – Lateral type protective shell, with a wire outlet hole on the bottom and
both sides, respectively
Z – Hit head structural plunger type
4. Standard: GB/T 14048.5
5. Resistive current in free air Ith=10A
6. Protection grade: IP65 (after installation)
7. Certification mark
8. Technical parameters
AC-15 Ue:380V Ie:0.8A
DC -13 Ue:220V Ic:0. 16A
To Next Page
