Dell DES12314 - Page 33

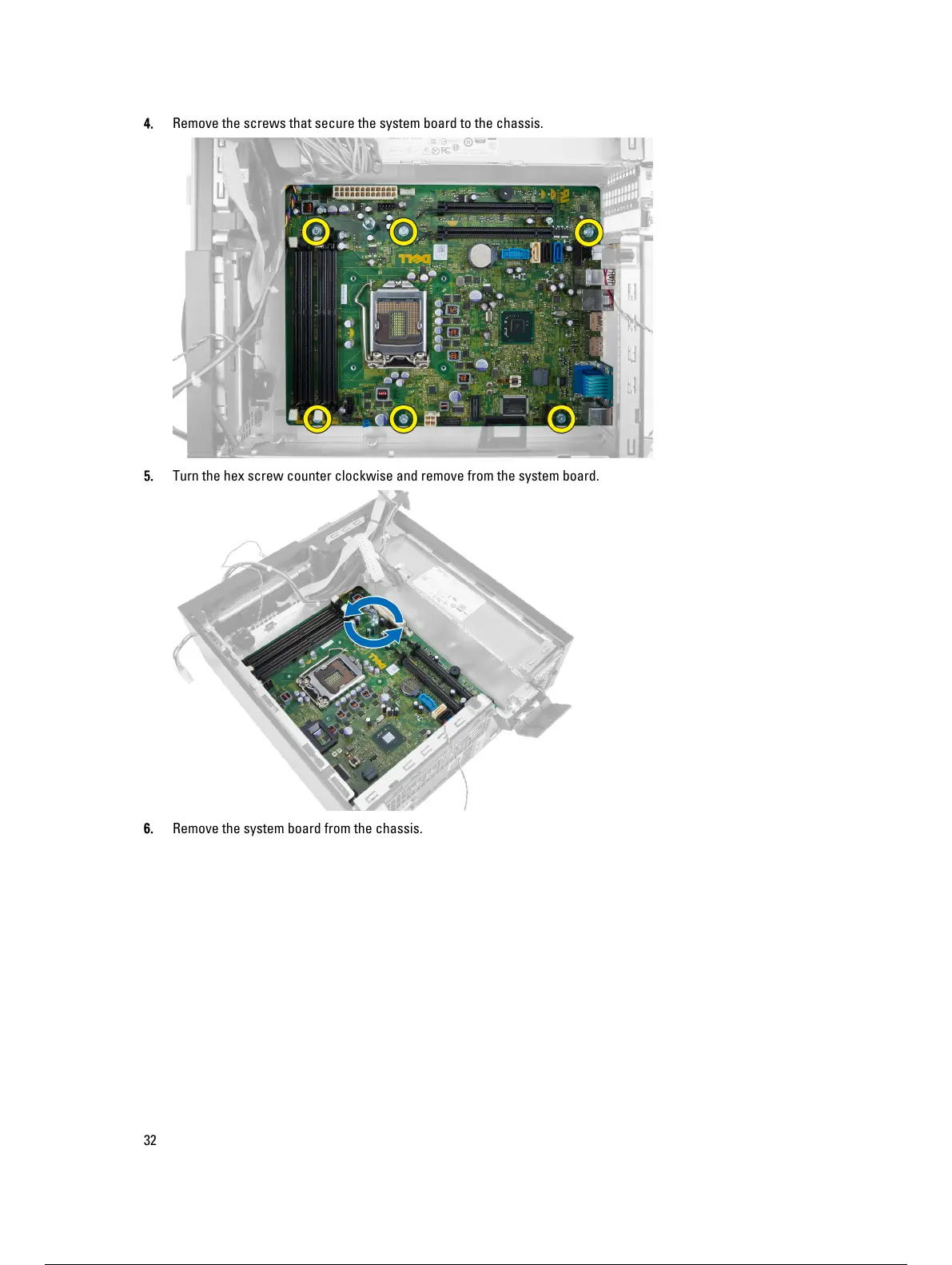

4. Remove the screws that secure the system board to the chassis.
5. Turn the hex screw counter clockwise and remove from the system board.
6. Remove the system board from the chassis.
32
33 / 62 32 / 60 33 / 62
