11

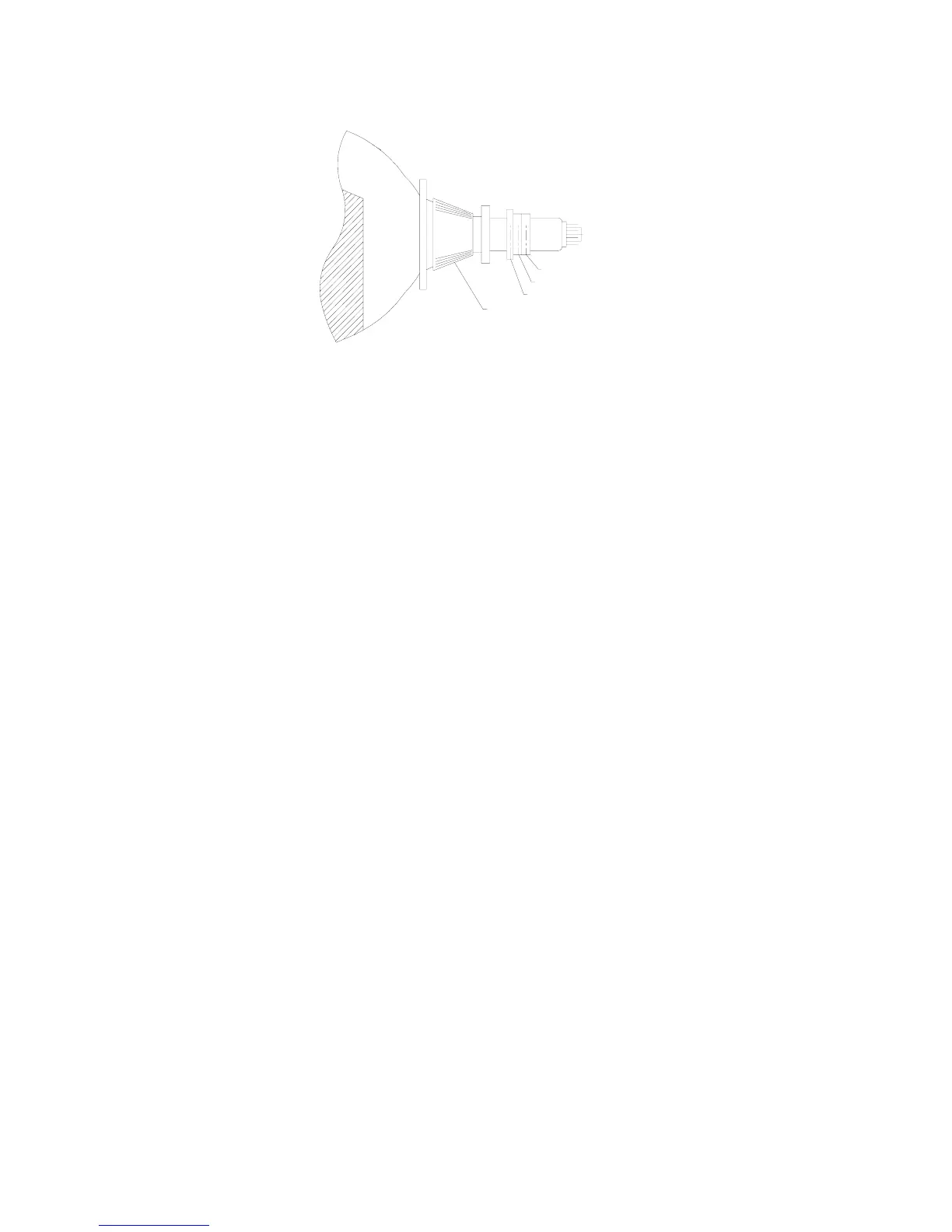

RELATIVE PLACEMENT OF TYPICAL COMPONENTS
Purity Magnets
Deflection Yoke
4-pole Convergence Magnets
6-pole Convergence Magnets
6. Convergence adjustment
A. Produce a magenta crosshatch on the display.
B. Adjust the focus for the best overall focus on the display.
Also adjust the brightness to the desired condition.
C. Vertical red and blue lines are converged by varying the angle between the two tabs of the 4
pole magnets on the PCM assembly. (See above diagrams)
D. Horizontal red and blue lines are converged by varying the two tabs together, keeping the angle
between them constant.
E. Produce a white crosshatch pattern on the display.
F. Vertical green and magenta lines are converged by varying the angle between the two tabs of
the 6-pole magnets.
G. Horizontal green and magenta lines are converged by varying the two tabs together, keeping
the angle between them constant.
4-3 EDID CONTENTS
x0 x1 x2 x3 x4 x5 x6 x7 x8 x9 xA xB xC xD xE xF
00: 00 FF FF FF FF FF FF 00 10 AC 05 D0 35 30 30 30
10: 01 0D 01 03 68 20 18 78 2E 8A A9 A1 54 46 99 24
20: 0E 48 4C A4 42 00 31 59 45 59 61 59 81 80 71 4F
30: 01 01 01 01 01 01 C3 1E 00 20 41 00 20 30 10 60
40: 13 00 36 E6 10 00 00 1E 00 00 00 FF 00 39 4B 32
50: 38 38 31 41 4E 30 30 30 35 0A 00 00 00 FC 00 44
60: 45 4C 4C 20 45 37 37 33 63 0A 20 20 00 00 00 FD
70: 00 32 A0 1E 46 0B 00 0A 20 20 20 20 20 20 00 **
