 System Components
Dell™Inspiron™1300/B120/B130ServiceManual

CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in
reverse order.

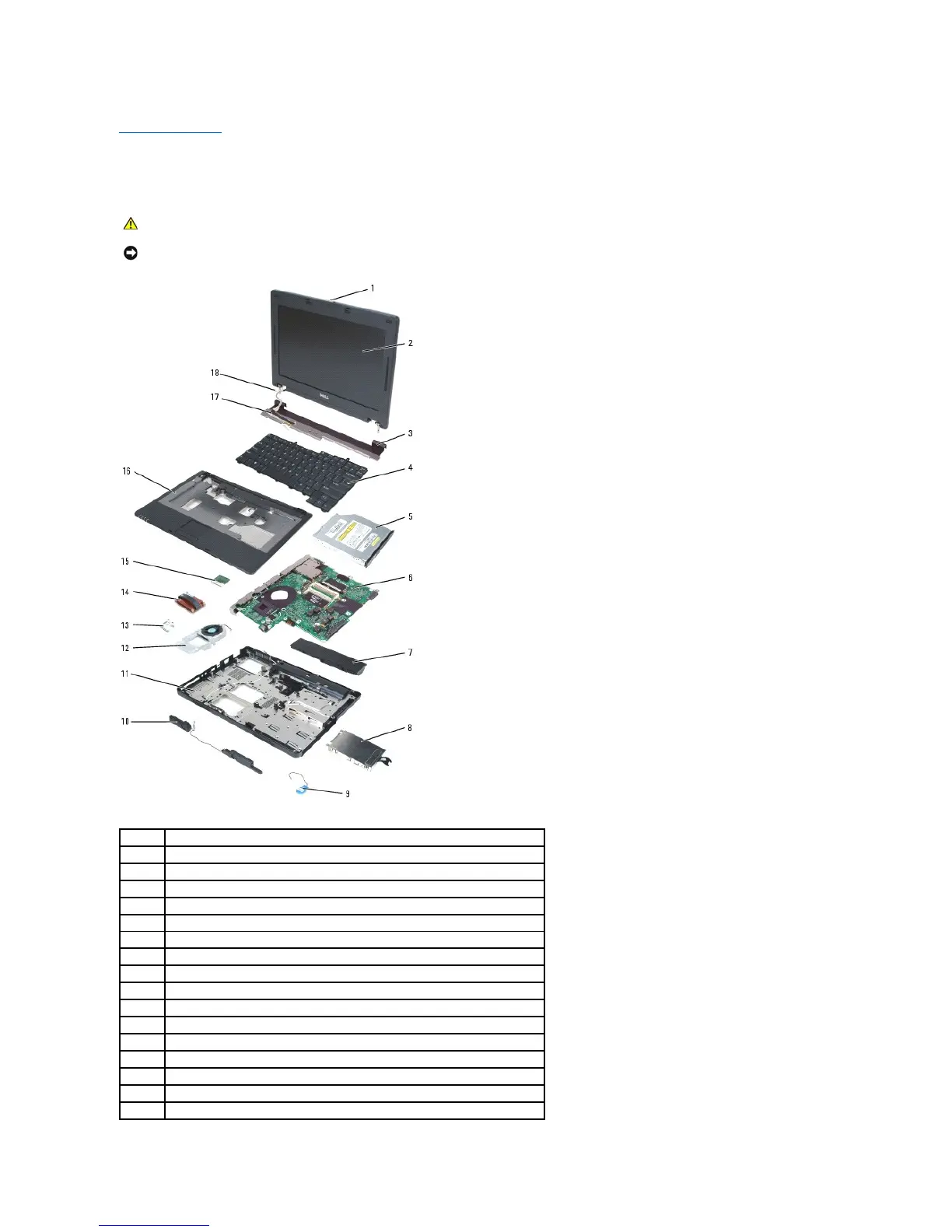

1
display latch
2
display
3
hinge cover
4
keyboard
5
optical drive
6
system board
7
battery
8
hard drive
9
coin-cell battery
10
speakers (2)
11
base plastics
12
fan assembly
13
modem
14
microprocessor cooling assembly
15
microprocessor
16
palm rest
17
display-feed flex cable
