Procedure

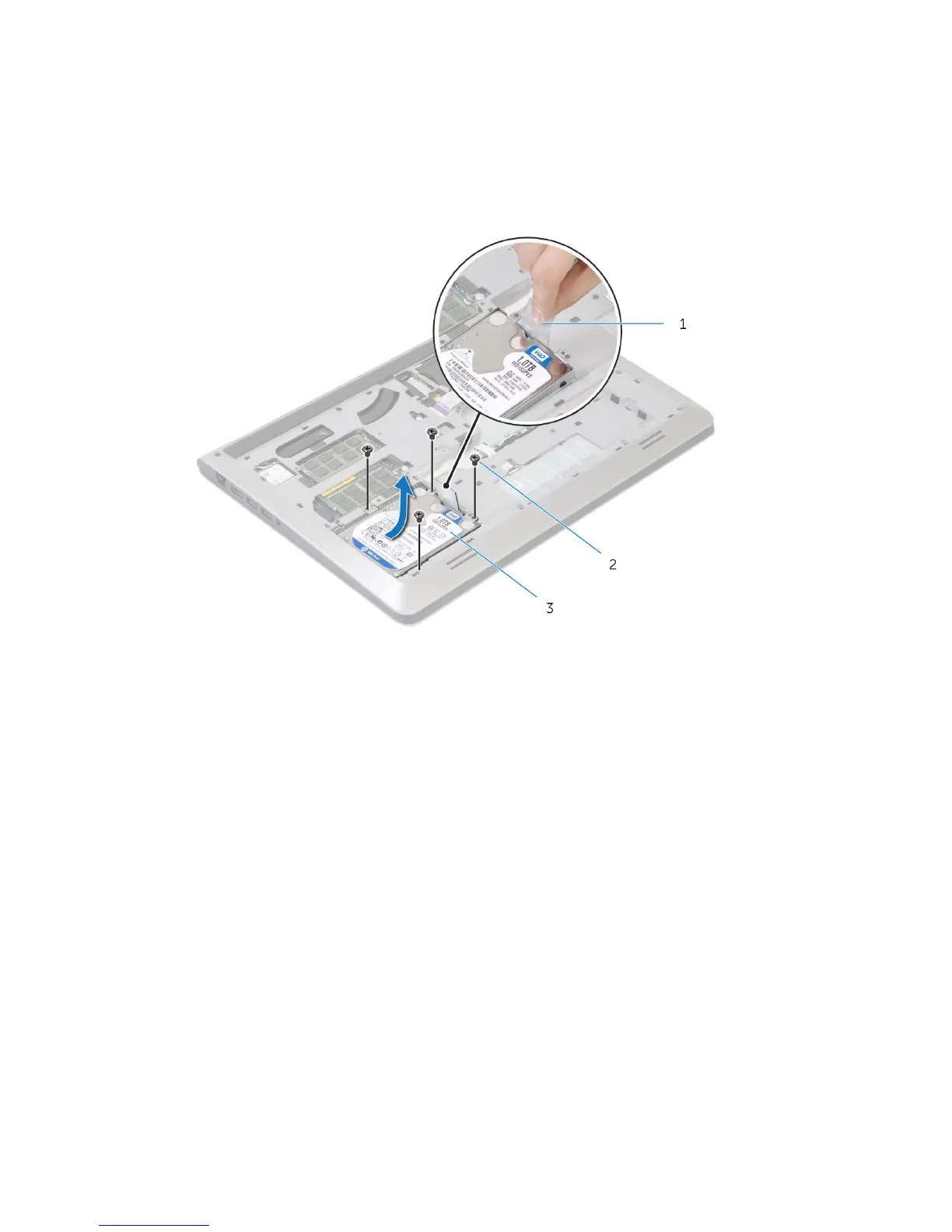

1 Remove the screws that secure the hard-drive assembly to the base
frame.
2 Using the pull tab, slide the hard-drive assembly out of the base frame.
1 pull tab 2 screws (4)
3 hard-drive assembly
18
