Removing the Fan | 45
Procedure
1 Turn the system board over and place the system board on a flat surface.
2 Disconnect the fan cable from the connector on the system board.
3 Remove the screw that secures the fan to the system board.
4 Lift the fan off the system board.

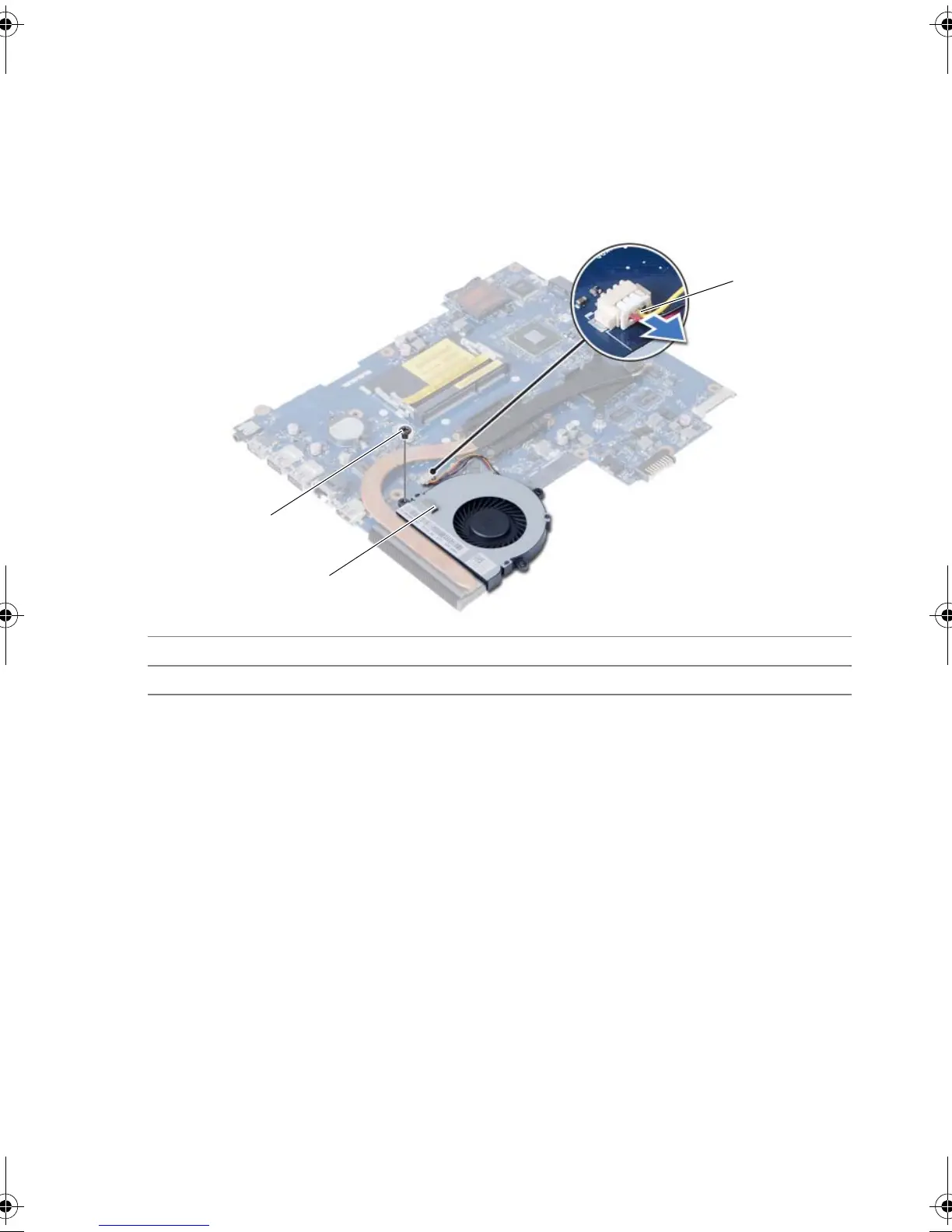

1screw 2fan
3fan cable
