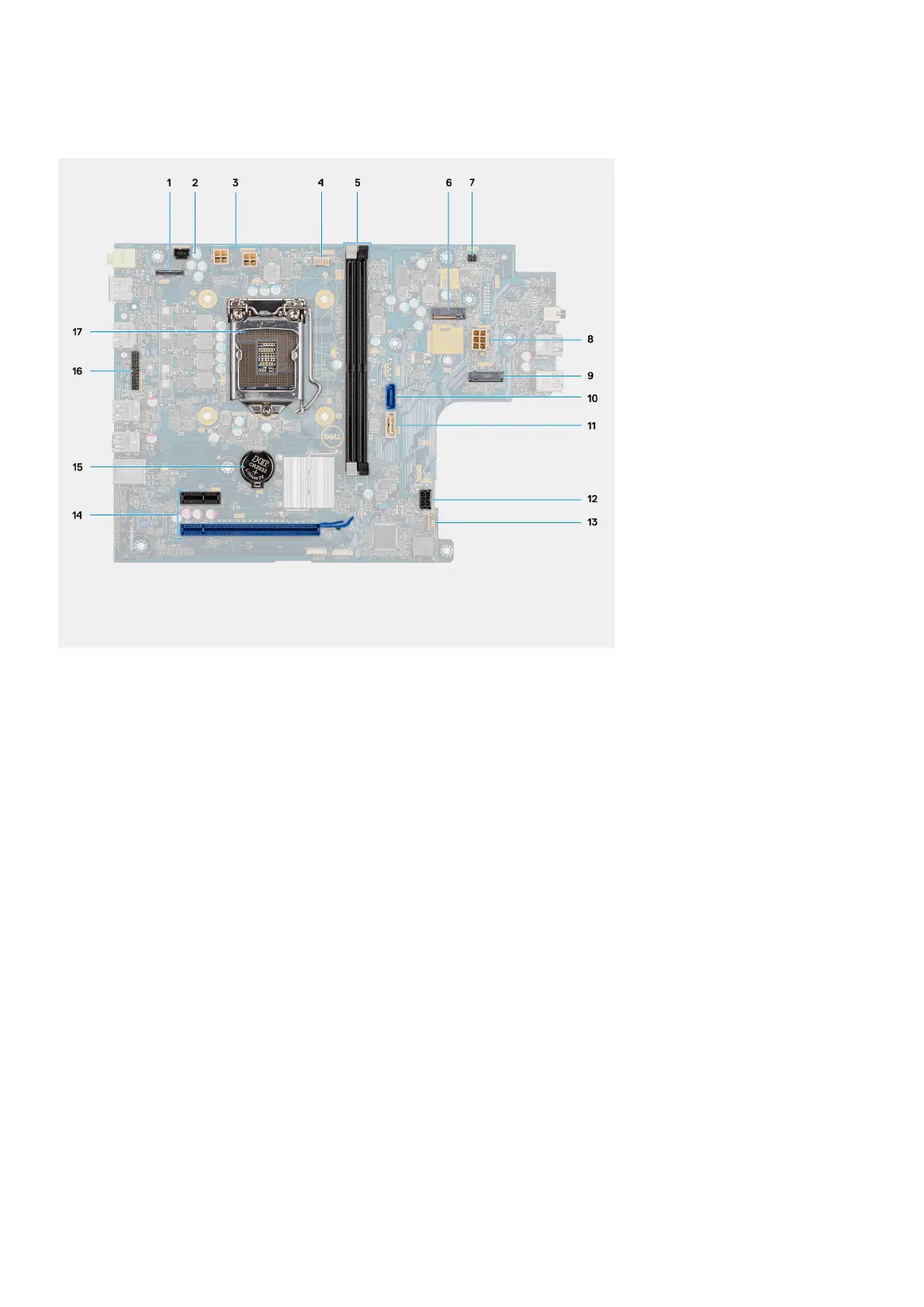

System board Layout
1. Video connector
2. Intrusion switch connector (Intruder)
3. CPU power connector (ATX_CPU)
4. CPU fan connector
5. Memory slots (DIMM1, DIMM2)
6. M.2 Solid-state drive connector
7. PWR switch connector(PWR_SW)
8. PSU connector
9. M.2 WLAN connector
10. SATA 0 connector
11. SATA 2 connector
12. SATA power connector
13. Internal speaker connector
14. PCIe connector
15. Coin-cell battery
16. KB/MS serial header
17. Processor socket (CPU)
12
