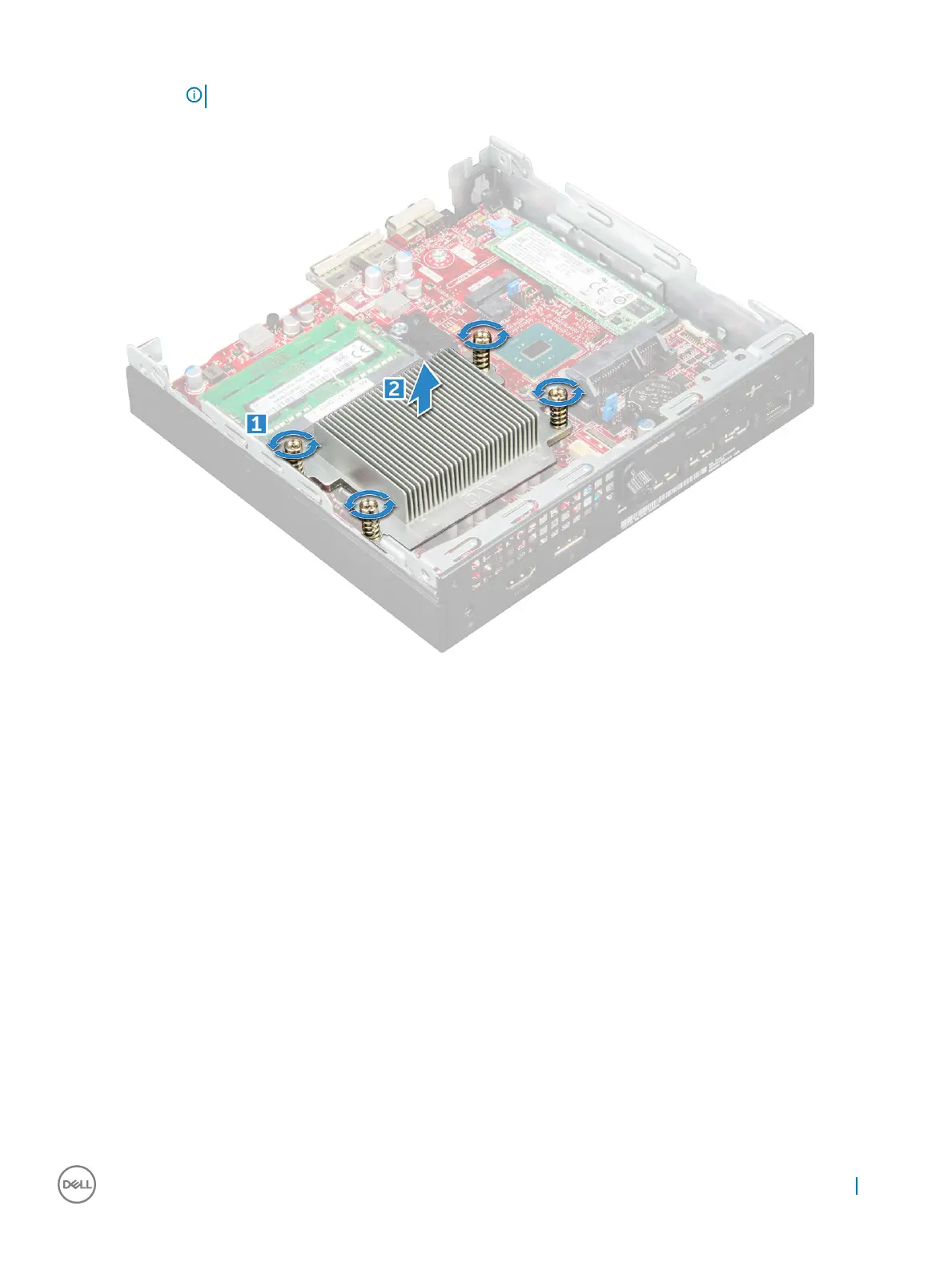

a Loosen the M3 screws that secure the heat sink to the computer [1].
NOTE: The 35 W CPU has four screws and the 65 W CPU has three screws.
b Lift the heat sink away from the computer [2].
Installing heat sink
1 Place the heat sink on the processor.
2 Tighten the M3 screws to secure the heat sink to the system board.
3 Install the:
a system fan
b 2.5–inch drive assembly
c cover
4 Follow the procedure in After working inside your computer.
Processor
Removing processor
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
a cover
b 2.5–inch drive assembly
c system fan
d heat sink
Removing and installing components
