Heat sink
Removing the heat sink
Prerequisites
1. Follow the procedure in Before working inside your computer.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The
oils in your skin can reduce the heat transfer capability of the thermal grease.
NOTE: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool before you
touch it.
2. Enter Service Mode.
3. Remove the base cover.
About this task

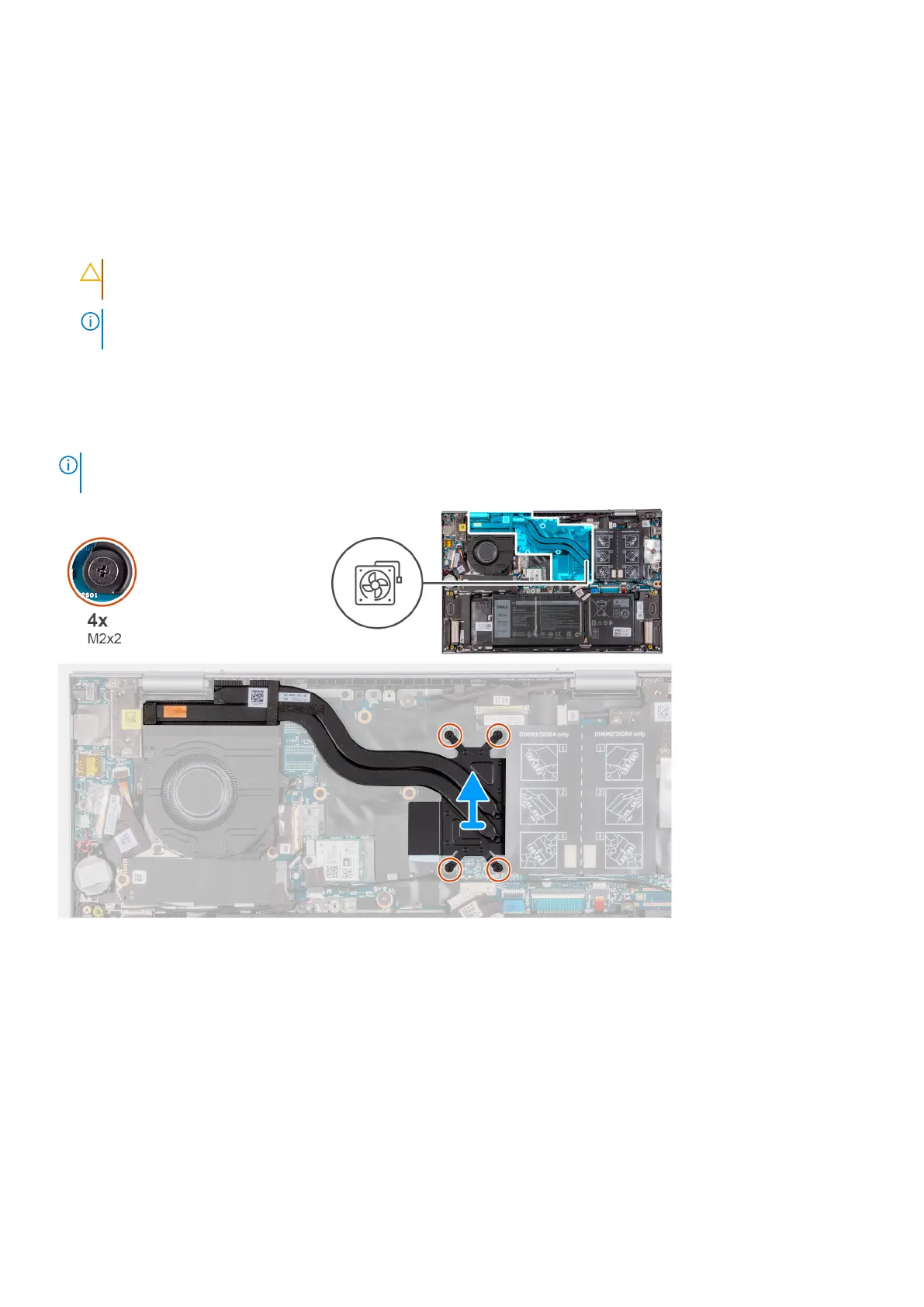

The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.
NOTE: The number of captive screws and the appearance of the heat sink may vary depending on the configuration you
ordered.
