Dell P2018H - Page 5

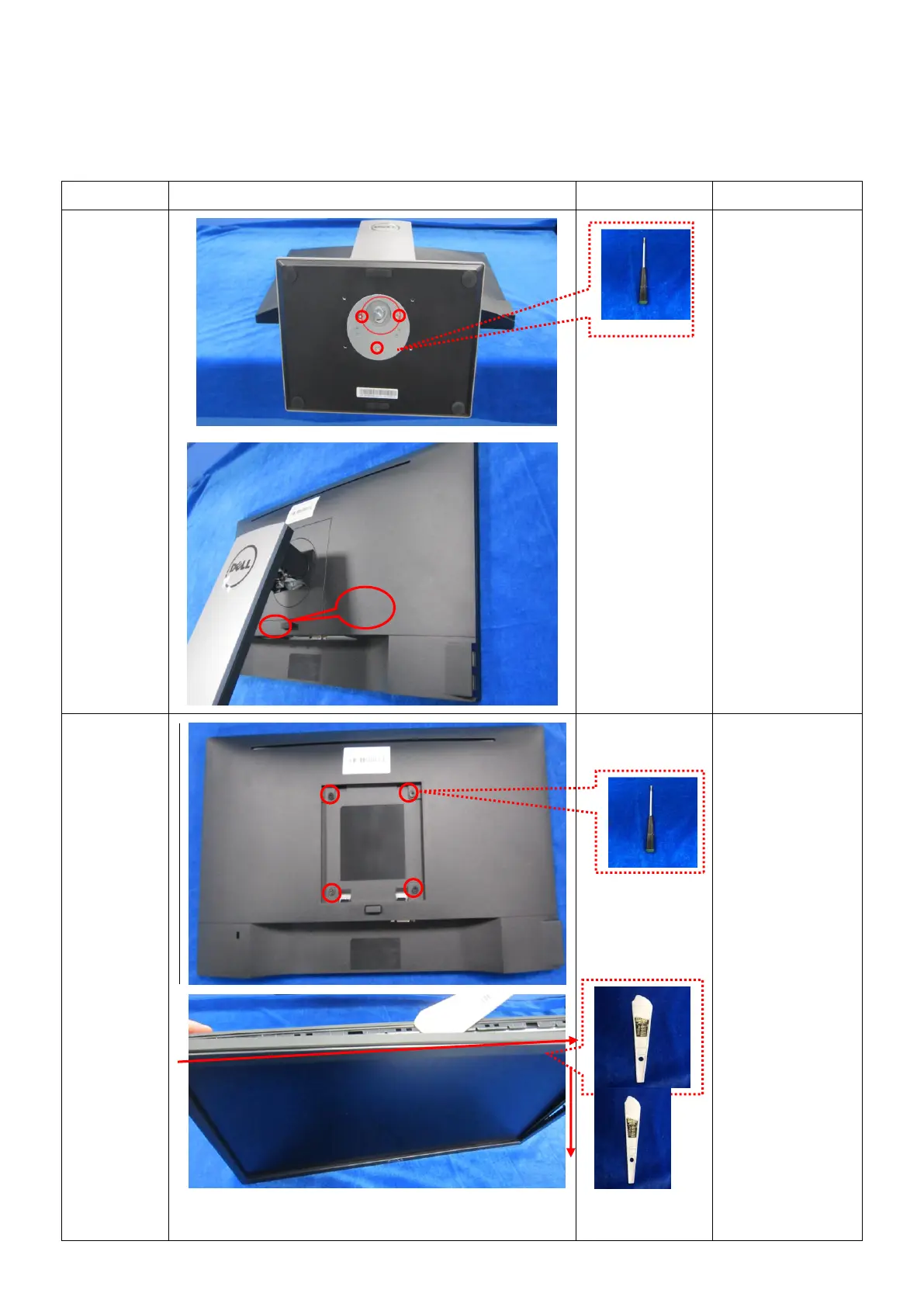

3.1 Disassembly Procedures
Tools: 2 Power screwdrivers (φ=5mm, L=60mm); 1 small cross screwdriver; turnbuckle driver;
Setting: Power screwdriver torque A=6 kgF.Cm
Step
Figure
Tool
Remark
Remove the
Base ass’y.
and stand
ass’y.
Unscrew the 4
screws by the
Philips-head
Screwdriver
and Press the
button by hand to
remove the hinge
assy
Torque=6±1kgf.cm
Note:
Put the monitor on
a flat, soft and
clean surface.
Remove the
Rear cover
.
Disconnect
the FFC
cables and
LVDS cabel.
Unscrew the 4
screws by the
Philips-head
Screwdriver.
Torque=6±1kgf.cm
Take scraper insert
the bezel and
back-cover，then
push it up
clockwise
push
