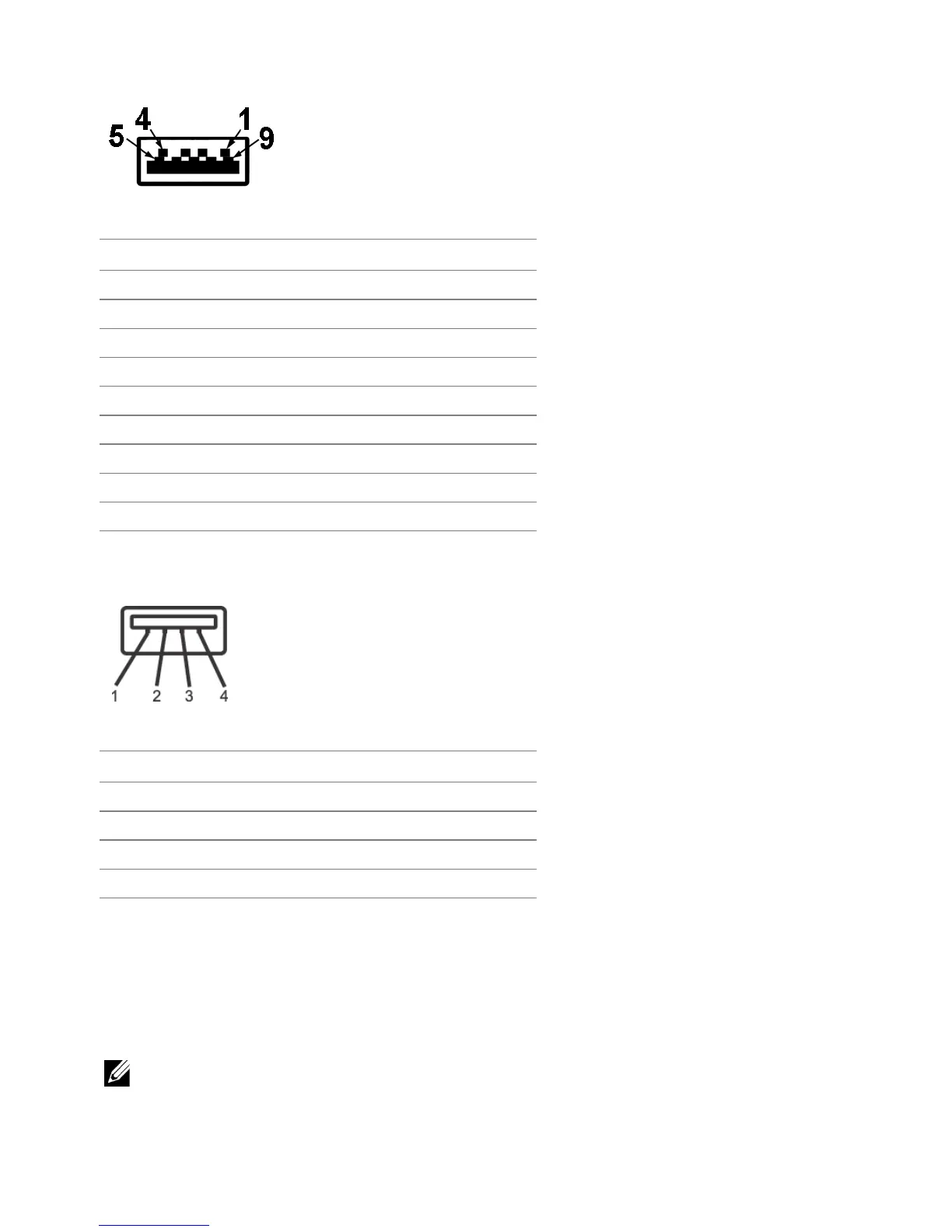

Pin Number 9-pin Side of the Connector
VCC
2 D-
3 D+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
About Your Monitor | 25
USB 3.0 Downstream Connector
USB 2.0 Downstream Connector
Pin Number 4-pin Side of the Connector
1 VCC
2 DMD
3 DPD
4 GND
USB Ports
• 1 x USB 3.0 upstream - bottom
• 2 x U
SB 2.0 downstream - bottom
• 2 x
USB 3.0 downstream - side
NO
TE: USB 3.0 functionality requires a USB 3.0-capable computer.
