Item Indicator, Button, or
Connector
Icon Description
3 iDRAC7 Enterprise port Dedicated management port.
NOTE: The port is available for use only if the iDRAC7
Enterprise license is installed on your system.
4 Serial connector Allows you to connect a serial device to the system.
5 PCIe expansion card slot
(riser 2)
Allows you to connect a PCIe expansion card.
6 Video connector Allows you to connect a VGA display to the system.
7 USB connectors (2) Allows you to connect USB devices to the system. The
ports are USB 2.0-compliant.
8 Ethernet connectors (4) Four integrated 10/100/1000 Mbps NIC connectors
or
Four integrated connectors:
• Two integrated 10/100/1000 Mbps NIC connectors
• Two integrated 100 Mbps/1 Gbps/10 Gbps SFP+
connectors
9 PCIe expansion card slot
(riser 3)
Allows you to connect a PCIe expansion card.
10 Power supply (PSU1)
AC 495 W, 750 W, or 1100 W
Or
DC 750 W or 1100 W
11 Power supply (PSU2)

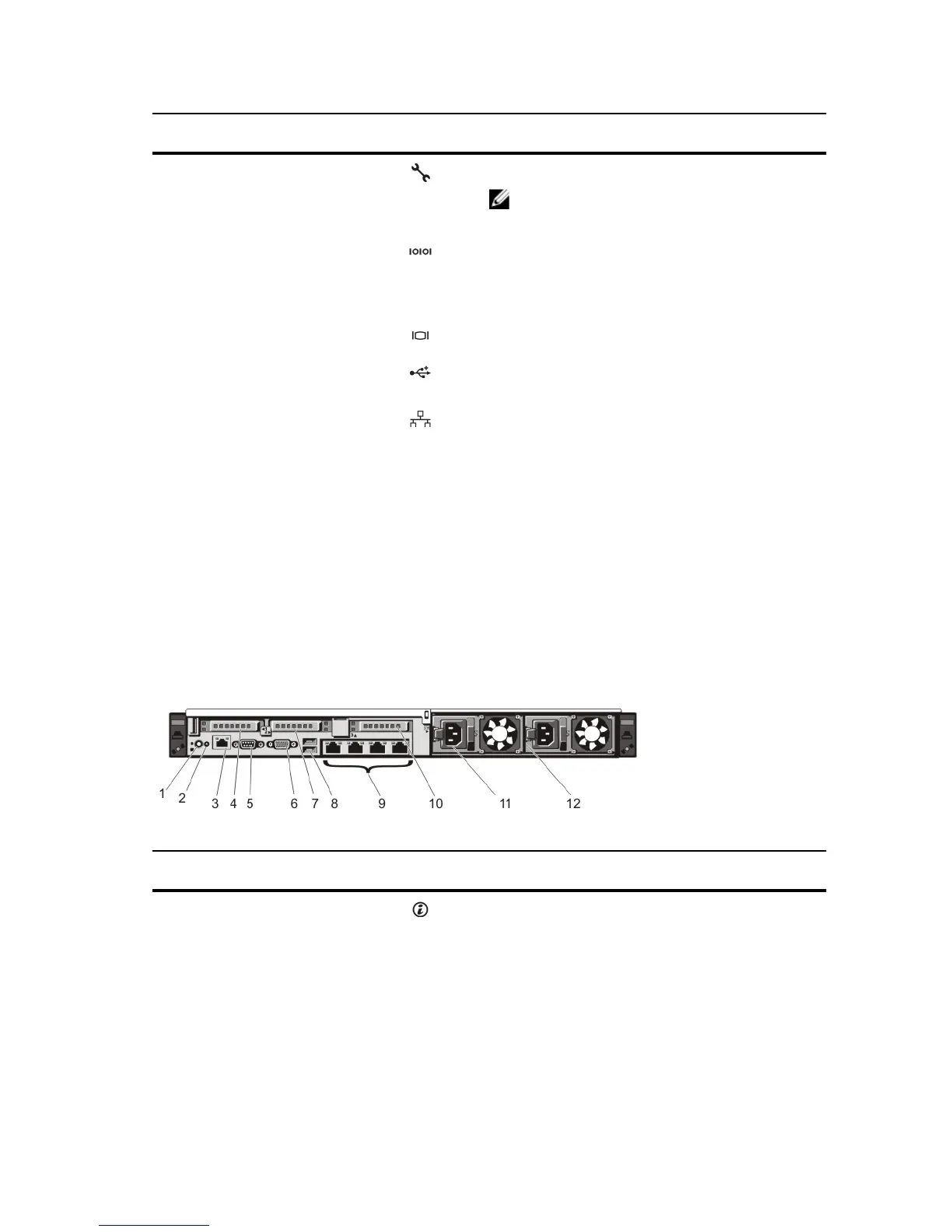

Figure 6. Back-Panel Features and Indicators—10 Hard Drive System and 8 Hard Drive System (3 PCIe Expansion Cards)
Item Indicator, Button, or
Connector
Icon Description
1 System identification button The identification buttons on the front and back panels
can be used to locate a particular system within a rack.
10 Hard Drive
System
When one of these buttons is
pressed, the system status
indicator on the back flashes
until one of the buttons is
pressed again.
