Dell S2417DG - Pin Assignments; DisplayPort Connector

16 | About Your Monitor
Pin Assignments
Pin
Number
20-pin Side of the
Connected Signal Cable
ML0(p)
GND
ML0(n)
ML1(p)
GND
ML1(n)
ML2(p)
GND
ML2(n)
ML3(p)
GND
ML3(n)
GND
GND
AUX(p)
GND
AUX(n)
GND
Re-PWR
+3.3 V DP_PWR

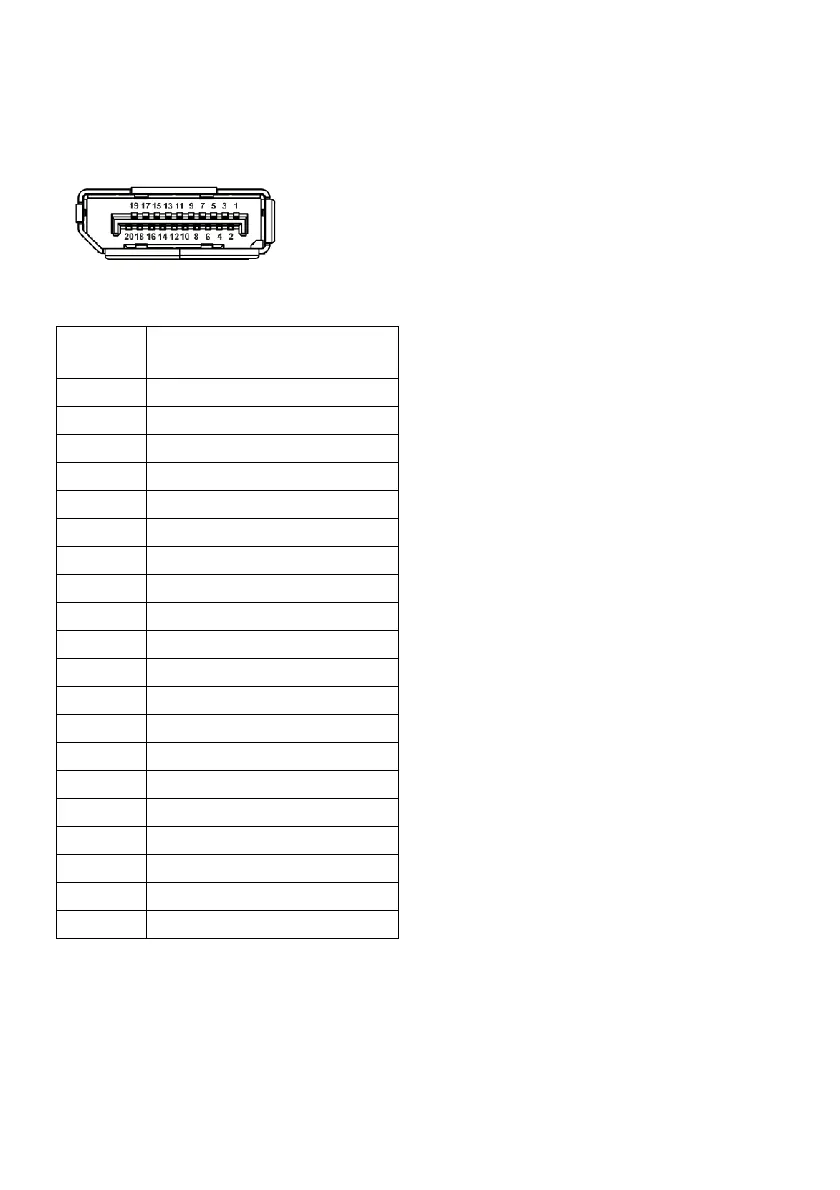

DisplayPort Connector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
