 AC Adapter Connector
Dell™StudioXPS™1640ServiceManual
Removing the AC Adapter Connector
Replacing the AC Adapter Connector


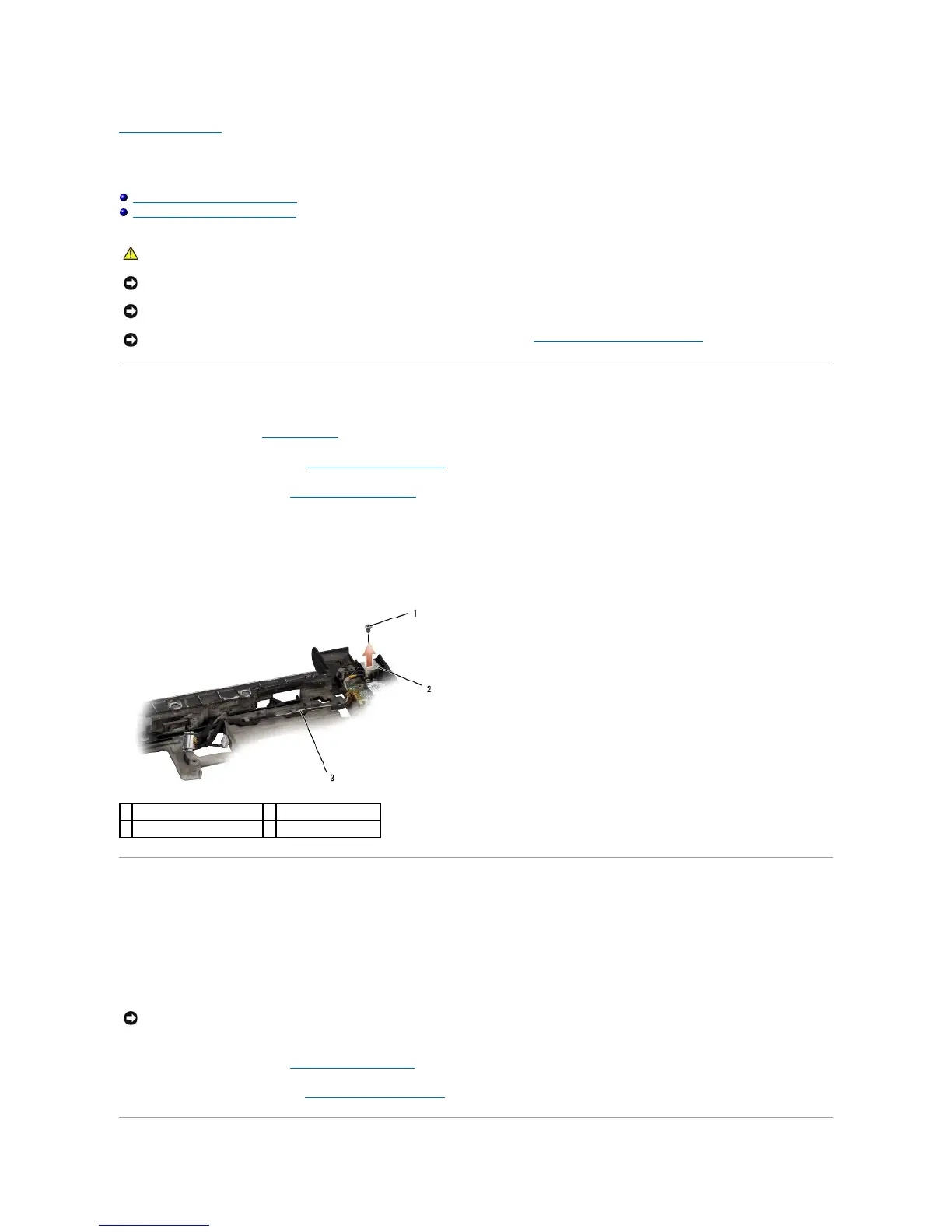

Removing the AC Adapter Connector

1. Follow the instructions in Before You Begin.

2. Remove the display assembly (see Removing the Display Assembly).

3. Remove the system board (see Removing the System Board).

4. Remove the screw that secures the AC adapter connector.

5. Remove the AC adapter cable from the routing guide.

6. Lift the connector and cable out of the computer base.
Replacing the AC Adapter Connector

1. Place the AC adapter connector in the computer base.

2. Replace the screw that secures the AC adapter connector.

3. Route the AC adapter cable through the routing guide.

4. Replace the system board (see Replacing the System Board).

5. Replace the display assembly (see Replacing the Display Assembly).
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™isnot
covered by your warranty.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.
1
screw
2
AC adapter connector
3
AC adapter connector cable


NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
