Dell Vostro 3653 - Installing the System Board

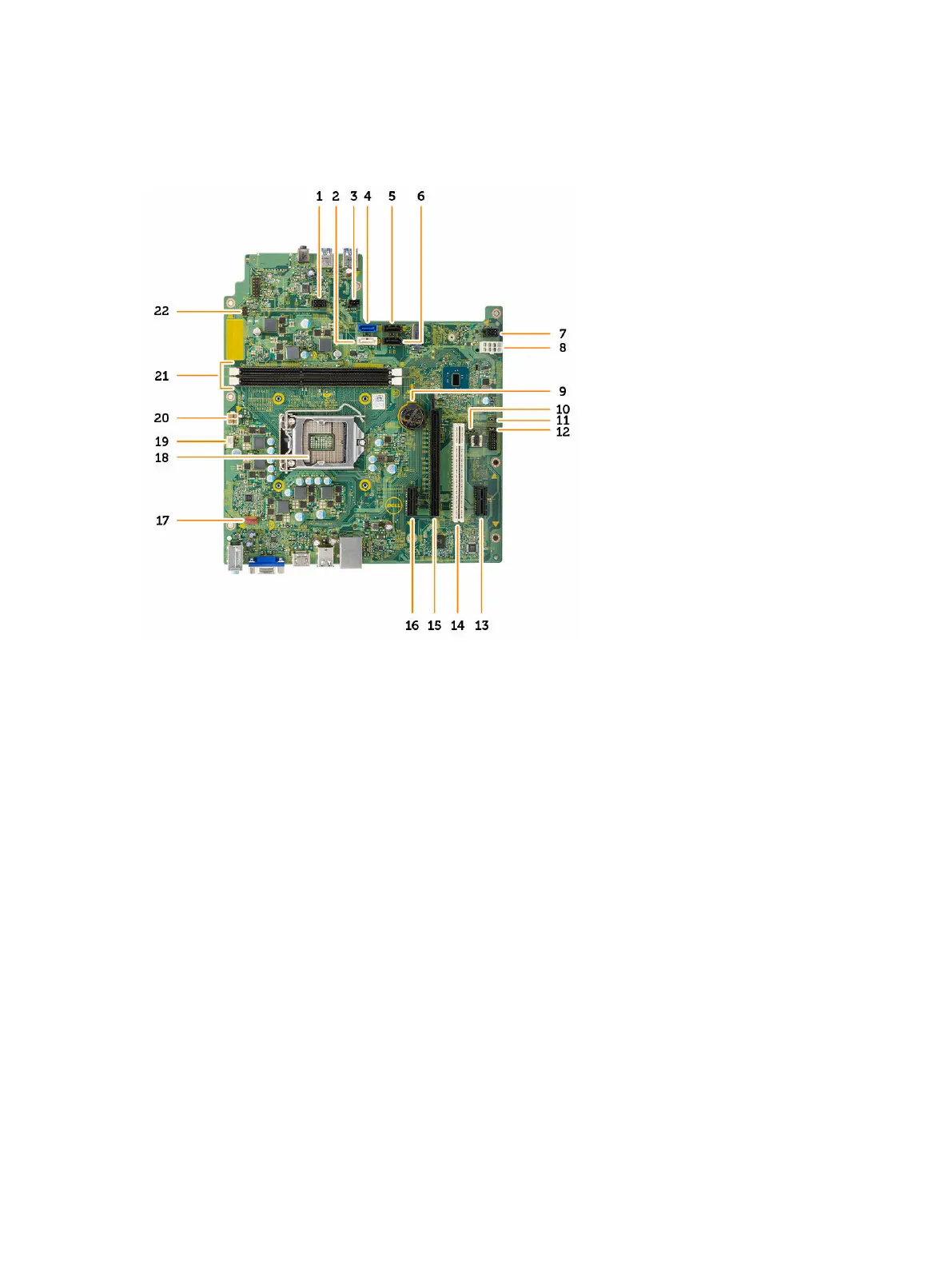

System Board Layout
1. SATA power connector 2. SATA1
3. Light bar header 4. SATA0
5. SATA3 6. SATA2
7. SATA power connector 8. PSU connector
9. Coin-cell battery 10. Clear CMS jumper
11. ME disable jumper 12. Password clear jumper
13. PCIex1 14. PCI
15. PCIex16 16. PCIex1
17. System-fan connector 18. CPU socket
19. CPU fan connector 20. PSU connector
21. Memory-module connectors 22. Power-switch connector
22
