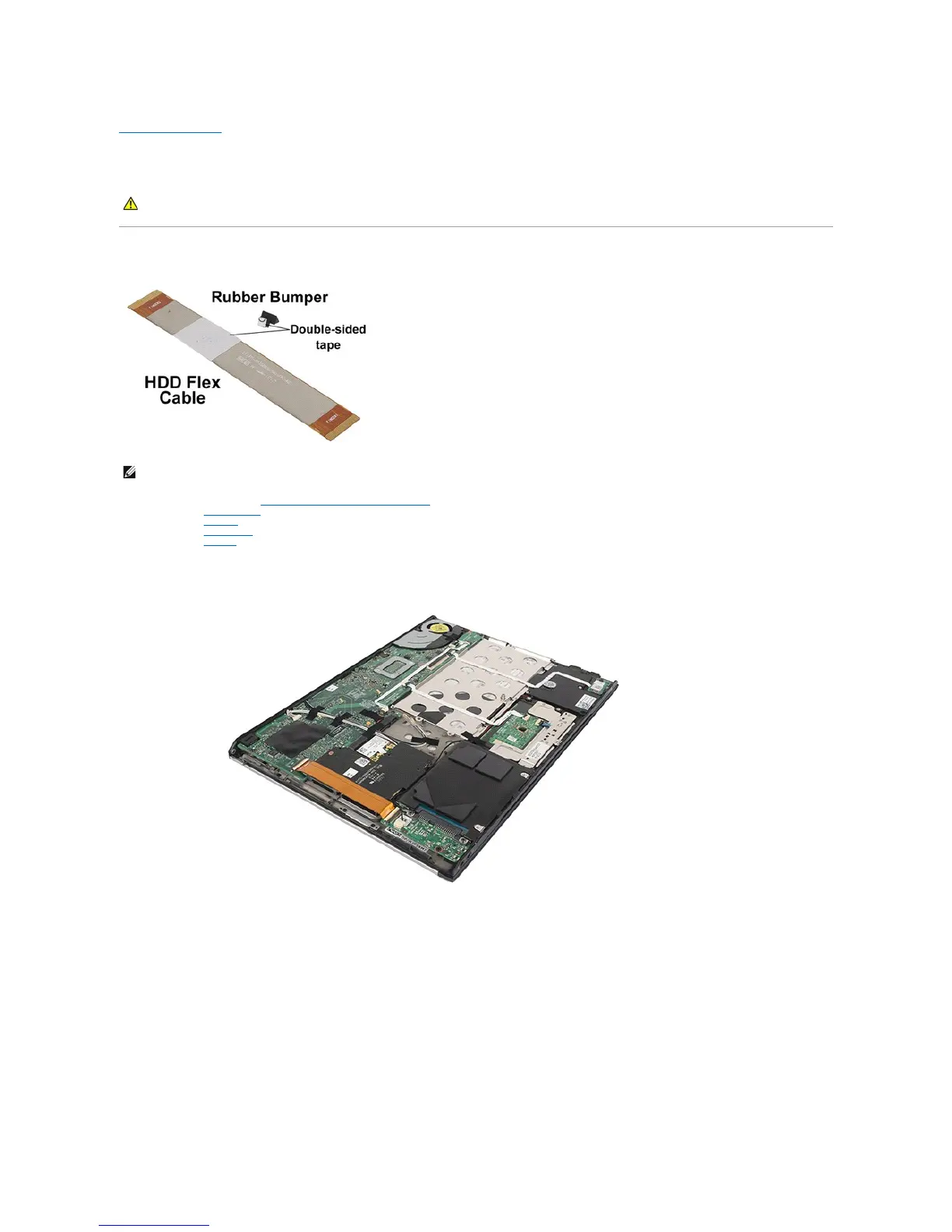

Hard Drive Cable Kit
Dell™Vostro™13ServiceManual
Installing the Hard Drive Cable Kit
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the ExpressCard, if applicable.
3. Remove the SD card, if applicable.
4. Remove the base cover.
5. Remove the battery.
6. Disconnect both ends of the existing hard drive flex cable from the system board and hard drive connectors.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
